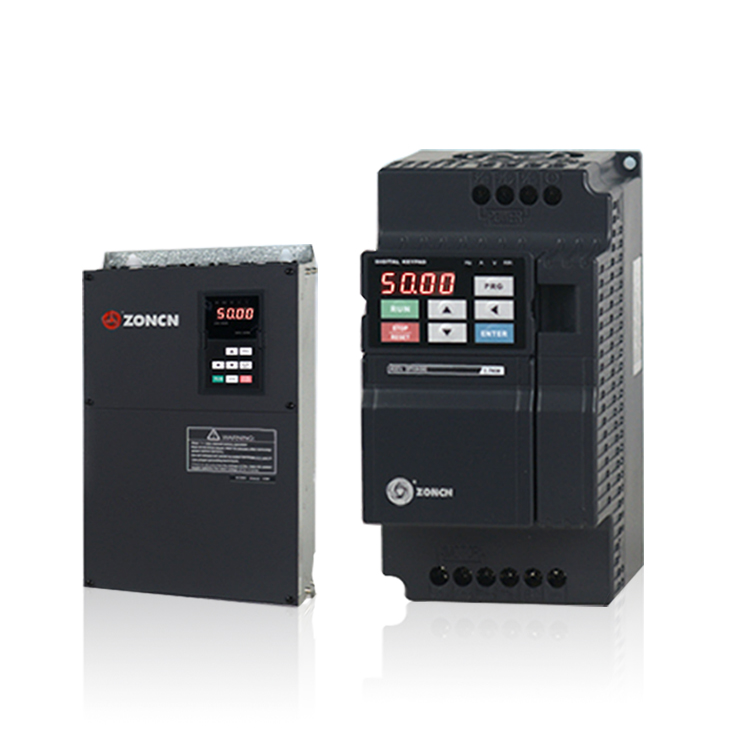

Reliable heavy-duty motor control for industrial applications. 380V three-phase input. The Z2400-45G/55P is a general-purpose vector control variable frequency drive from ZONCN’s Z2000 series, engineered for demanding industrial environments. With dual power ratings of 45 kW (constant torque) and 55 kW (variable torque) , it delivers stable, precise motor control across a wide range of load conditions
| Item | Specification |
| Model | Z2400-45G/55P |
| Rated Power (G/P) | 45 kW (Constant Torque) / 55 kW (Variable Torque) |
| Input Voltage | 3-Phase AC 380V ±15%, 50/60 Hz |
| Control Mode | Sensorless Flux Vector Control (SFVC) / V/F Control |
| Max Output Frequency | 0–320 Hz (Vector) / 0–3200 Hz (V/F) |
| Starting Torque | 150% @ 0.5 Hz (SFVC, G type) |
| Speed Stability Accuracy | ±0.5% (SFVC) |
| Overload Capacity | 150% for 60s; 180% for 3s (G type) |
| Carrier Frequency | 1–16 kHz, auto-adaptive |
| Communication | RS485 / Modbus (standard) |
| Protection Class | IP20 |
| Warranty | 12 Months |
Dual Power Output — 45 kW constant torque / 55 kW variable torque in a single unit, covering both heavy-duty and fan/pump applications.
Advanced Vector Control — Sensorless flux vector control (SFVC) and V/F control, with speed stability accuracy of ±0.5%.
High Starting Torque — 150% rated torque at 0.5 Hz for reliable startup under heavy loads.
Strong Overload Capacity — 150% rated current for 60 seconds; 180% for 3 seconds, handling transient load surges without tripping.
Built-In Intelligence — Onboard PID control, 16 preset speeds, auto voltage regulation (AVR), rapid current limit, and torque boost.
Easy System Integration — Standard RS485 with Modbus protocol for remote monitoring and centralized control.
The Z2400-45G/55P is widely used in:
Air compressors — stable pressure control with PID
Pumps and fans — energy-saving variable torque operation
Conveyors and material handling — smooth start/stop with S-curve ramp
Textile machinery — precise speed regulation in dense wiring environments
CNC and machine tools — reliable torque output for spindle and feed drives
Metallurgy, building materials, and mining — enhanced stability under harsh conditions

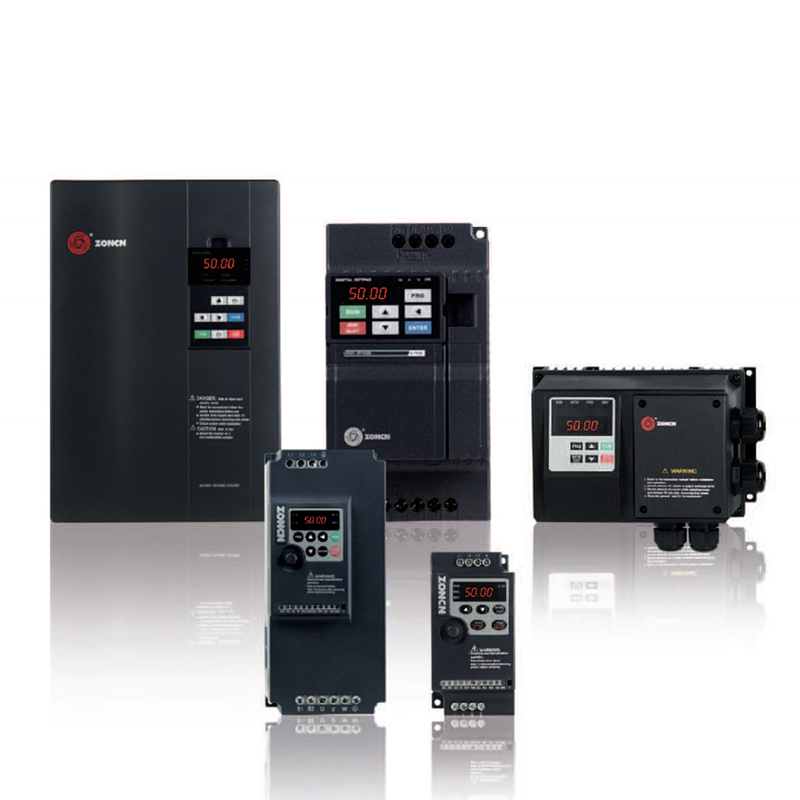

The Z2400 series upgrades the proven Z2000 platform with a focus on stability and interference resistance in heavy-duty operations. It features high-quality IGBT modules and optimized thermal design, enabling continuous full-load operation at up to 45°C ambient temperature. The series also includes momentary power-loss ride-through and rapid current limit functions, significantly reducing nuisance tripping caused by grid fluctuations or sudden load changes.
1. What does the model “45G/55P” mean?
A: “45G” refers to 45 kW for constant torque (heavy-duty) applications, while “55P” refers to 55 kW for variable torque (fan and pump) applications. One drive covers both duty types, giving you greater flexibility across different loads.
2. What is the overload capacity and starting torque?
A: The Z2400-45G/55P delivers 150% rated current for 60 seconds and 180% for 3 seconds (G type). It also provides 150% rated torque at 0.5 Hz, ensuring reliable startup and stable operation under heavy loads.
3. Does it support PID control and remote communication?
A: Yes. It features built-in PID constant-pressure control and standard RS485 communication with Modbus protocol, making it easy to integrate into centralized monitoring and automation systems.
4. Can it operate continuously at full load, and what is the maximum ambient temperature?
A: Yes. The Z2400 series is designed for continuous full-load operation at ambient temperatures up to 45°C, with optimized thermal design and high-quality IGBT modules for enhanced stability.
5. What certifications, warranty, and ordering terms do you offer?
A: The product is CE certified and comes with an 12-month professional warranty. MOQ is 1 unit, lead time is 7–30 days depending on quantity, and payment can be made via T/T or PayPal. OEM/ODM inquiries are welcome.
