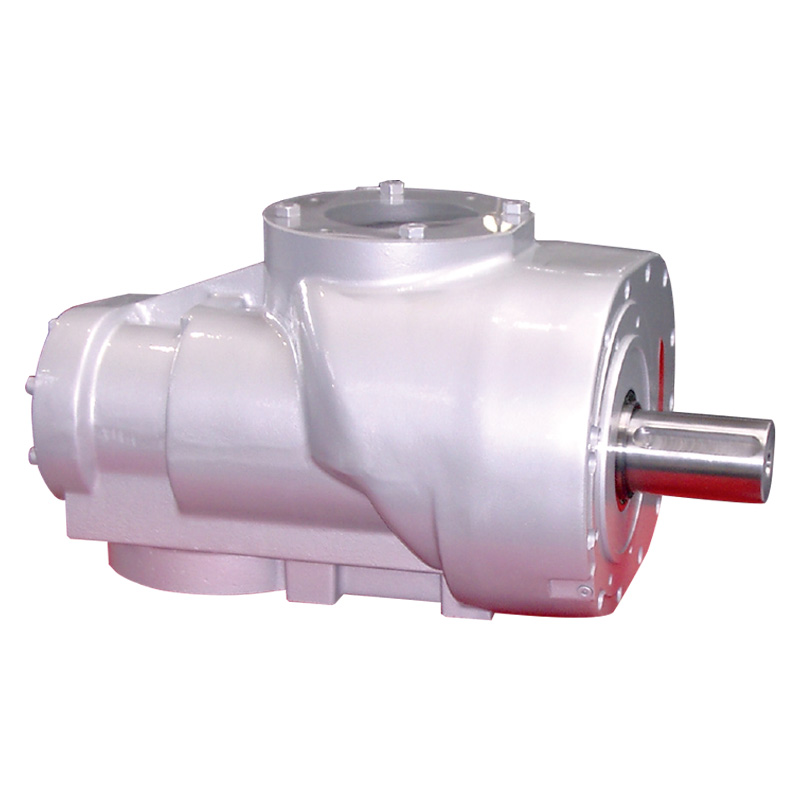

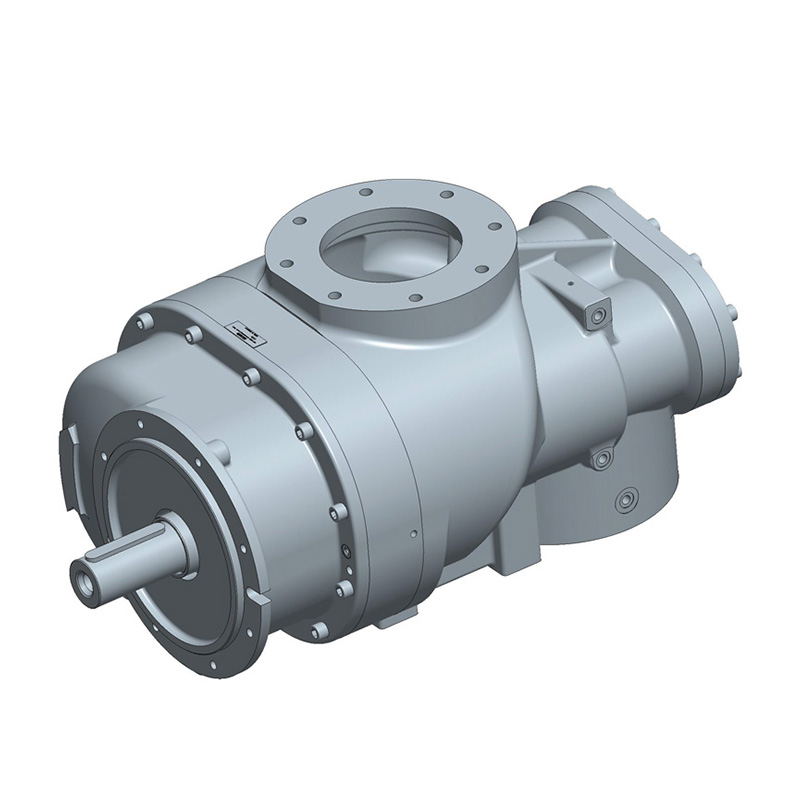

The CF128G is a single stage oil-injected screw compressor airend with an integratedgear drive, which can be used for general industrial applications.
Product features
1. Genuine, high-reliability, ensuring optimal performance and stability.
2. Single-stage compression, compact design, and easy maintenance.
3. High-efficiency rotor profile, high volumetric efficiency, and low energy consumption.
4. Robust design, strong load capacity, and low failure rate. High-quality bearings and heavy-duty gears withstand continuous operation and offer a long mean time between overhauls (MTBO).
5. Drop-in replacement
Easy replacement, saving time and worry. As a genuine spare part, its mounting interface and dimensions are identical to the original engine head, greatly simplifying the repair and replacement process.
Technical Parameters
| Model | Power (kW) | Flow (m³/min) | Working pressure ( bar) | Dimensions(mm) | Weight (kg) |
| CF128G | 90 | 15.93 | 6~16 | 801*433*370 | 280 |
| CF128R | 90 | 15.93 | 6~16 | 722*433*370 | 265 |
| CF128LG | 110 | 28.8 | 6~11.5 | 909*433*370 | 330 |
Application
• Main Application: As an original spare part for Ingersoll Rand brand air compressors (such as the SSR and R series), used to repair or replace faulty air compressor heads.
• Applicable Applications: Various industries requiring a stable, reliable, and efficient air source, such as the automotive, textile, food and beverage, and manufacturing industries.
