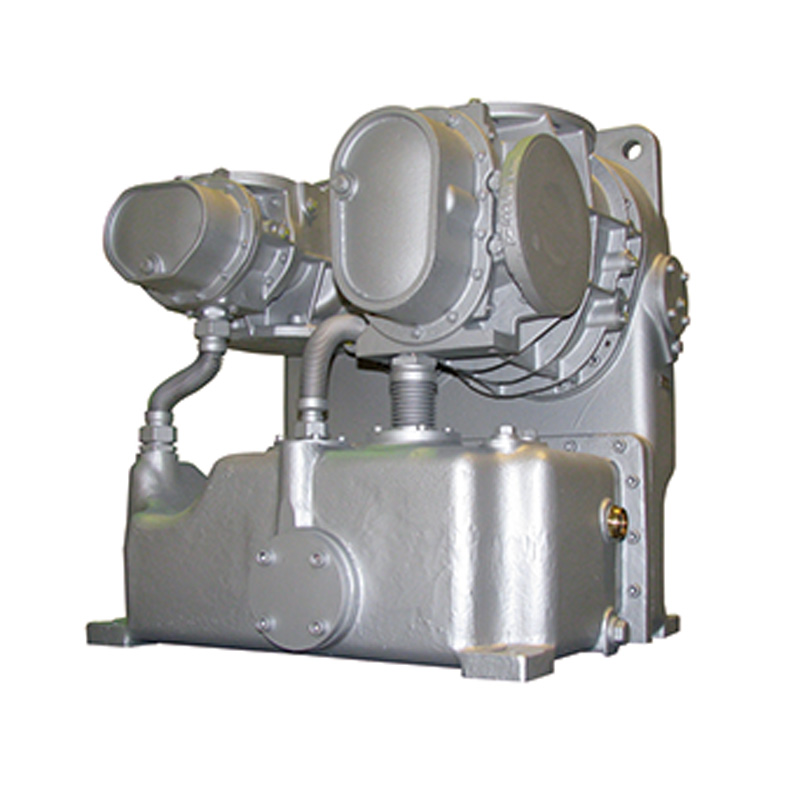

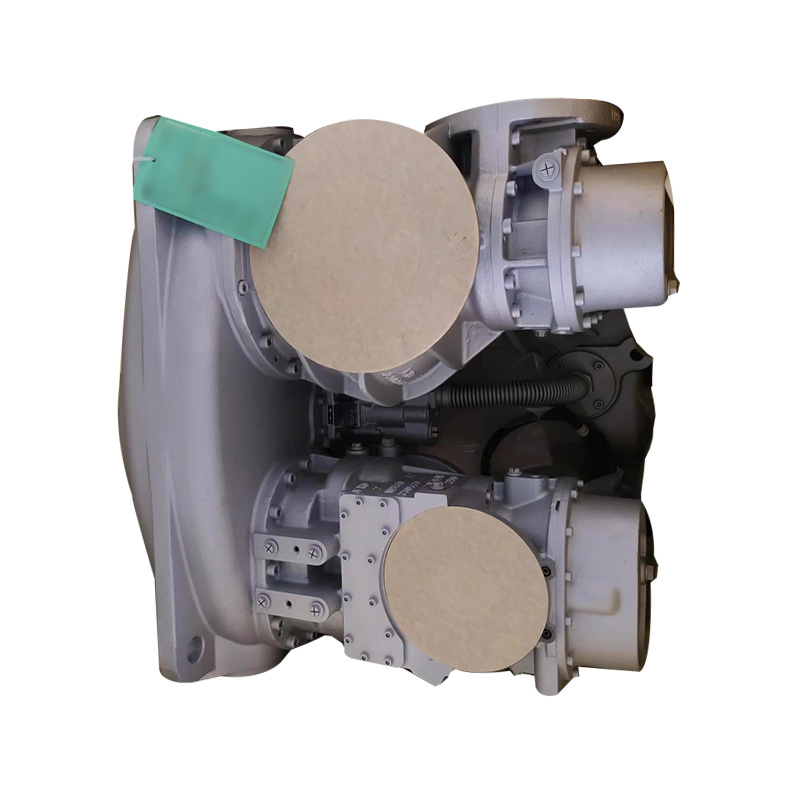

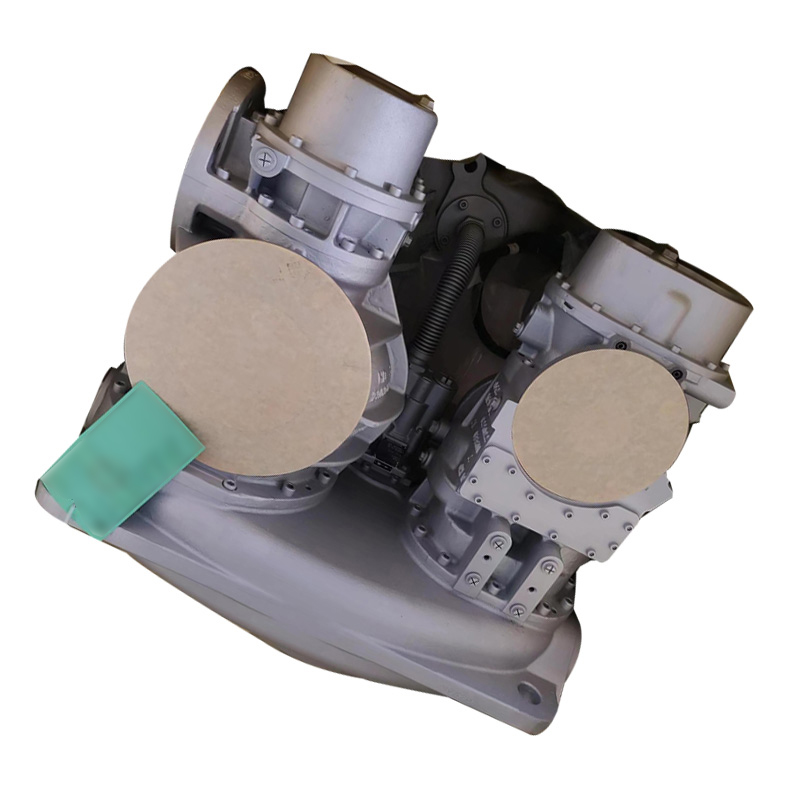

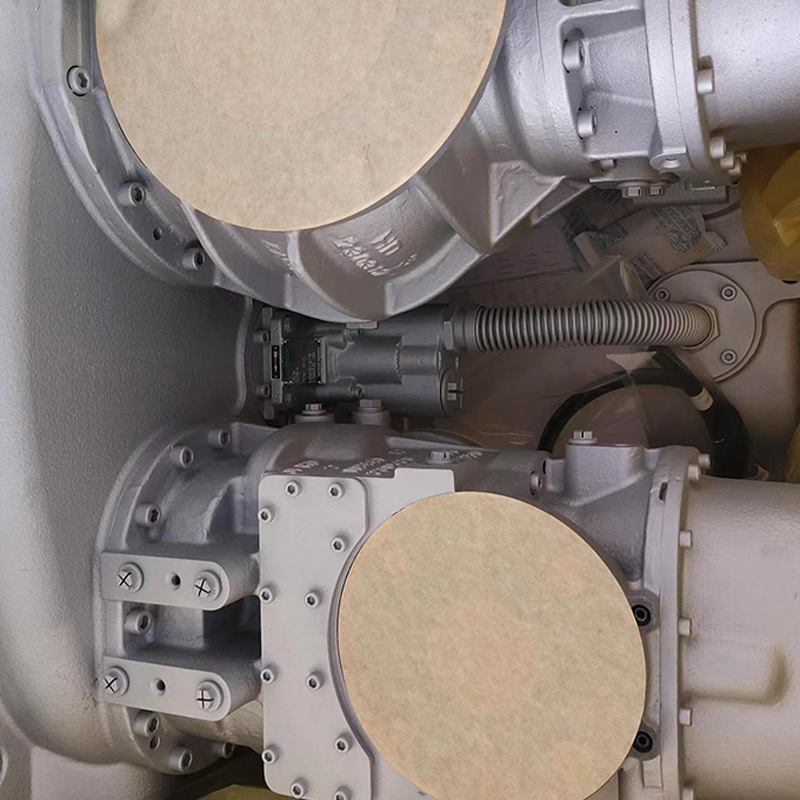

The CD14D1 is a double stage, gear driven and oil-free screw compressor blockwhich can be used for general industrial applications.
Product features
Absolutely Oil-Free
The compression chamber is completely isolated from the lubrication system, and the output air meets the strictest ISO 8573-1 Class 0 oil-free standard, eliminating the risk of oil contamination.
Efficient and Energy-Saving
The advanced rotor profile design ensures a perfectly matched internal compression ratio at the target operating pressure (typically optimized around 7-8 bar), resulting in high operating efficiency and significant energy savings.
Reliable and Durable
High-precision gears ensure contactless rotor transmission, and high-quality bearings and a robust body ensure a long design life, suitable for 24/7 continuous heavy-duty operation.
Large-Displacement Design
This larger model provides greater volumetric flow (displacement capacity), meeting the gas needs of medium and large industrial users.
Technical Parameters
| Model | CD14D1/CD14D |
| Power (kW) | 58.3~221.4 |
Flow (m3/H) | 750~1790 |
| Pressure (bar ) | 4.5~11.5 |
| Dimensions(mm) | 760*730*770 |
| Weight(kg) | 530 |
Application
The CD14D1 is primarily used in medium- and large-scale industrial applications requiring extremely high compressed air quality and supply reliability:
Food and Beverage
Used in direct product contact processes such as filling, packaging, and fermentation.
Pharmaceutical and Biotechnology
Meets GMP requirements for pharmaceutical production, laboratories, and aseptic packaging.
Electronics and Semiconductors
Protects chip manufacturing, precision cleaning, and other processes from contamination.
Chemical and Energy
Used as instrument and process air to avoid reactions with hazardous chemicals.
High-End Manufacturing
Used in critical processes such as precision spray coating and automated control.
