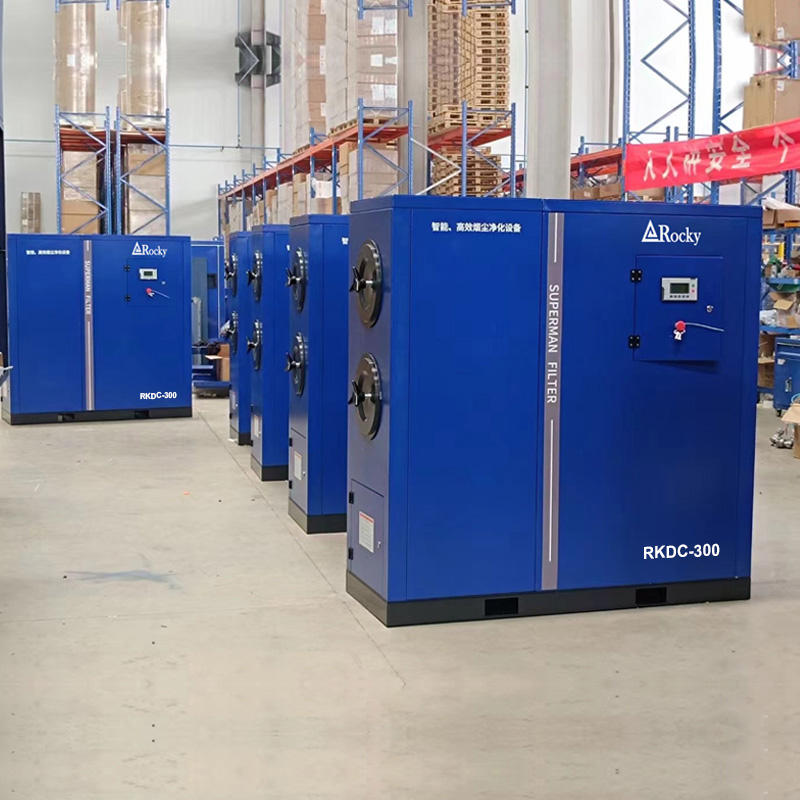

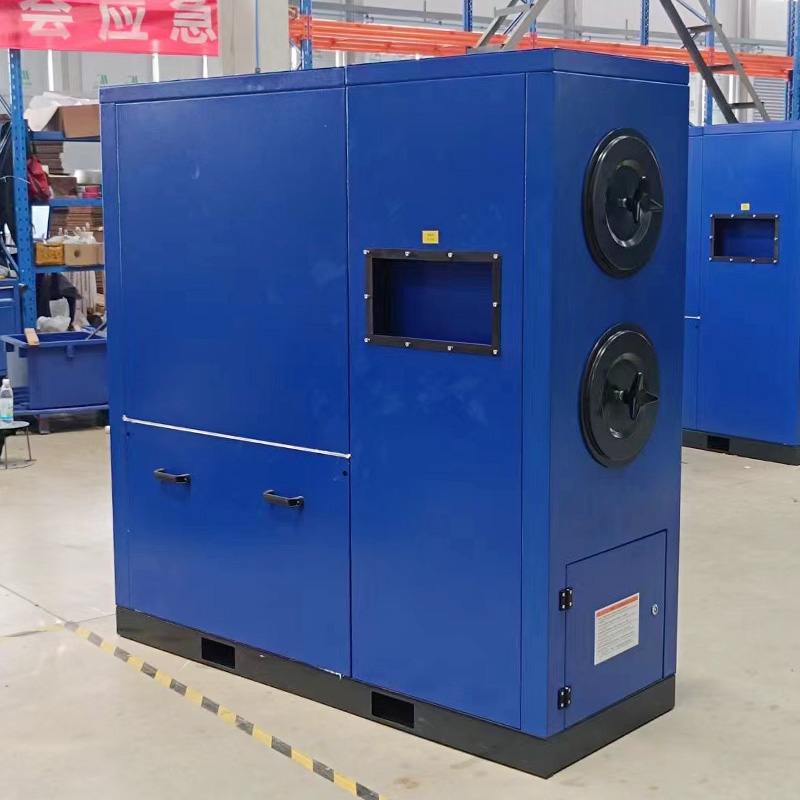

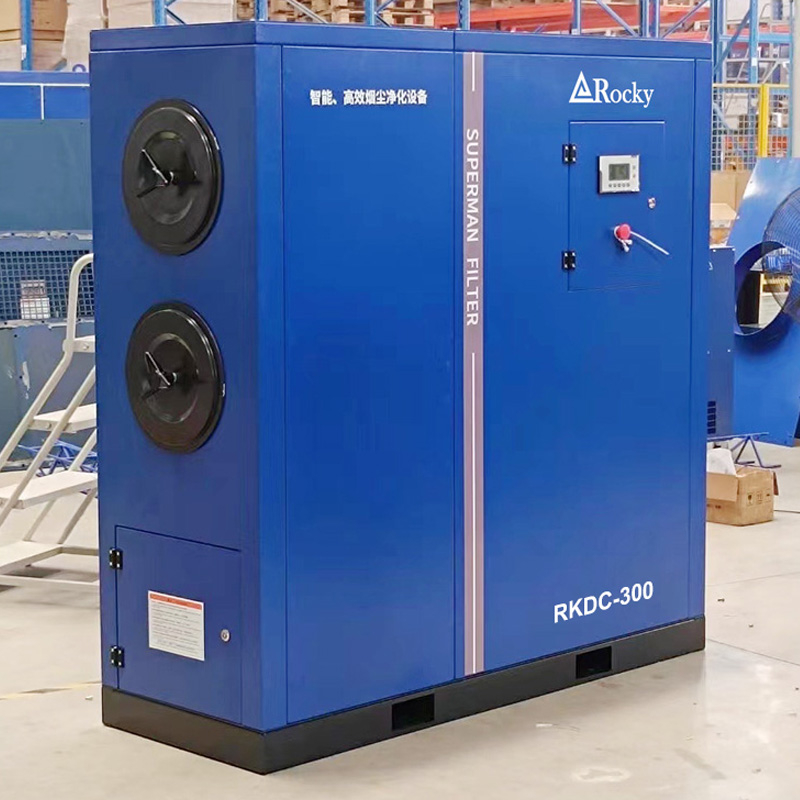

An industrial dust collector is a high‑performance filtration system designed to capture dust, smoke, and harmful fumes generated in welding, laser cutting, and metal processing environments. Equipped with two advanced cartridge filters, powerful airflow, and an automatic pulse‑jet cleaning system, this equipment efficiently removes fine particulates and contaminants from the air, ensuring clean and safe working conditions.
| Dust Colllector Technical Parameters | |||||||
| Model | RKDC-300 | RKDC-550 | RKDC-750 | RKDC-1100 | RKDC-1500 | RKDC-1850 | RKDC-2200 |
| Motor Power (kW) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Power Supply (V/Hz) | 380/50 | ||||||
| Max. Airflow (m3/h) | 2900 | 4500 | 7200 | 10000 | 12000 | 16000 | 20000 |
| Max. Total Pressure (Pa) | 2000 | 2000 | 2500 | 2800 | / | / | / |
| Filter Material | Nano Flame-Retardant Composite Fiber | ||||||
| Filter Mounting Type | Rotary Locking Mechanism | ||||||
| Filtration Principle | Negative-Pressure Back-Flush Design | ||||||
| Reverse Pulse Air Requirement (MPa) | 0.6 Oil-free and water-free compressed air | 0.7~0.8 Oil-free and water-free compressed air | 0.6~0.8 Oil-free and water-free compressed air | ||||
| Number of Filter Cartridges | 2 | 4 | 6 | 8 | 12 | 18 | 24 |
| Filtration Area (m2) | 46 | 92 | 138 | 184 | 276 | 414 | 552 |
| Filtration Accuracy (Um) | 0.3~3.0 | ||||||
| Inlet Diameter (mm) | 250 | 250 | 300 | 300 | 300 | 550 | 600 |
| Weight (kg) | 420 | 520 | 620 | 790 | 1120 | 1700 | 1900 |
| Dimensions (L*W*H) mm | 1800*622*1745 | 1431*1405*2188 | 1504*1431*2688 | 2105*1605*2583 | 2105*1952*2583 | 2215*1516*2583 | 2215*1516*3750 |
Efficient Two‑Cartridge Filtration
Two high‑quality cartridge filters work together to trap ultra‑fine dust, welding fumes, and laser smoke, delivering superior air quality.
Powerful Airflow for Heavy‑Duty Applications
The system generates strong, consistent airflow that captures contaminants at the source – ideal for continuous welding, cutting, and metalworking operations.
Automatic Pulse‑Jet Cleaning
The self‑cleaning pulse‑jet mechanism periodically blows compressed air through the filters, preventing clogging, extending filter life, and reducing manual maintenance.
Compact Yet High‑Performance
With only two cartridges, the unit offers a space‑saving design without compromising on dust and fume removal efficiency – perfect for smaller workshops or individual workstations.
Safer, Healthier Work Environment
By effectively removing hazardous airborne particles, the dust collector helps protect operator respiratory health and supports compliance with workplace safety standards.
Welding & Fabrication Shops – Removal of welding fumes and smoke from manual or robotic welding stations.
Laser Cutting Centers – Extraction of fine metal dust and vaporized particles generated during laser cutting.
Metal Processing & Grinding – Control of dust from grinding, deburring, polishing, and surface finishing.
Automotive Manufacturing – Clean air in body shops, welding lines, and parts fabrication areas.
General Engineering Workshops – Versatile dust and fume extraction for a wide range of industrial processes.
Small‑Scale Metalworking – Ideal for job shops or maintenance departments with limited space but high air quality requirements.
