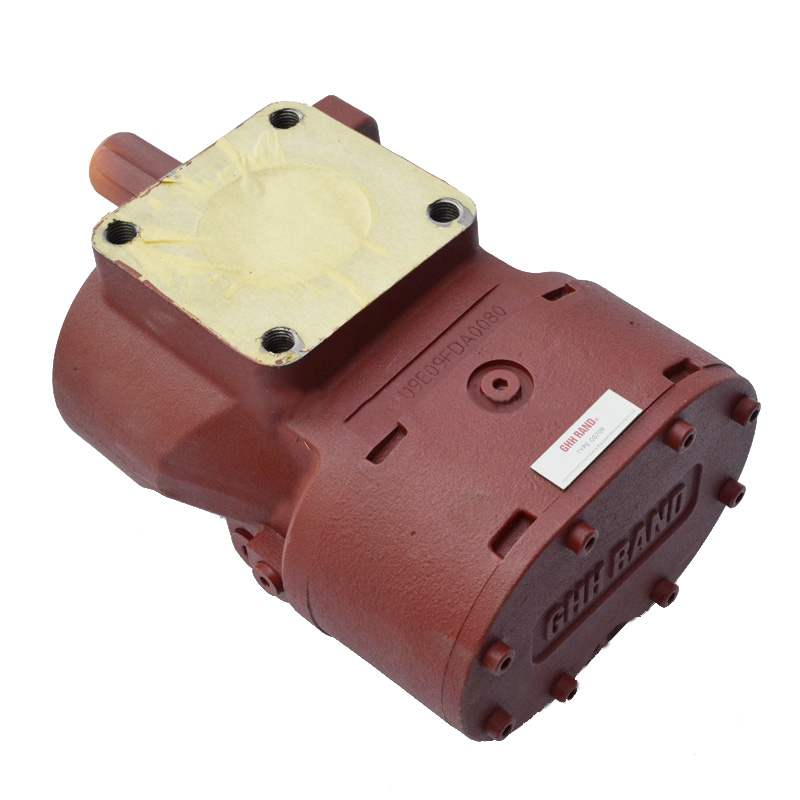

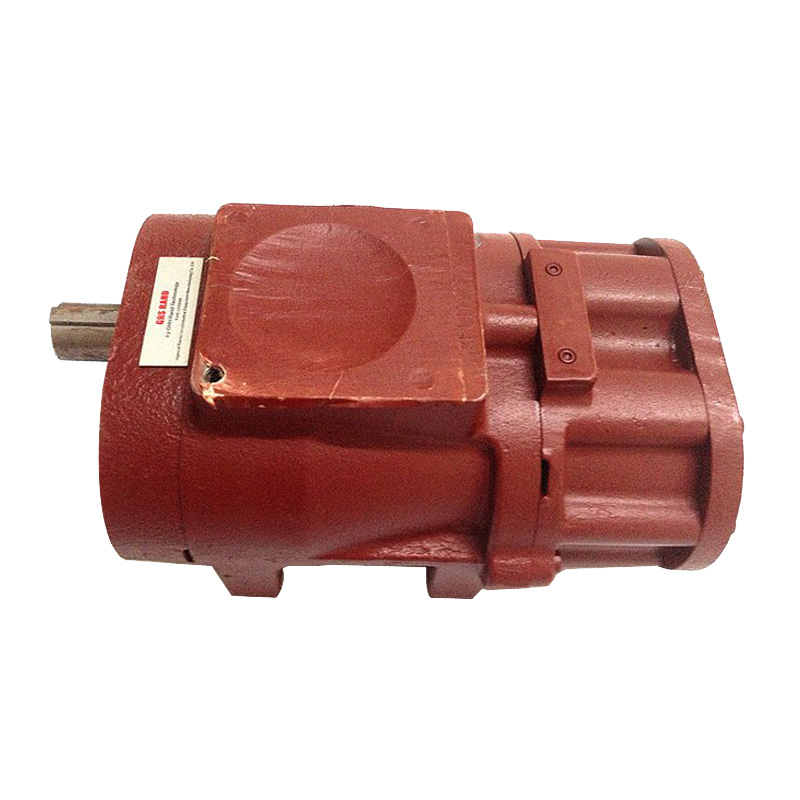

The GHH-Rand OS70 screw block is an industrial unit with up-to-date technical capabilities and affordable maintenance. Used in compressor systems with a wide power range. Provides a stable supply of air mass without pulsations and sudden pressure changes. The main advantages include ergonomic and compact design, durability and ease of replacing consumables.
Screw units for GHH-Rand OS series screw compressors are manufactured in Germany and are characterized by highly efficient drives, extremely quiet operation and low discharge air temperatures.
Technical Parameters
| Model | Power (kW) | Flow (m³/min) | Working pressure ( bar) | Dimensions(mm) | Weight (kg) |
| OS70R | 22 | 3.63 | 6~16 | 368*217*195 | 43 |
Features
1.High-quality German assembly and durable European components.
2. The rotor mechanism is made of stainless steel with a special profile and "Ultracoating" coating. It is not subject to corrosion, provides stable and effective compression without pulsation and pressure loss.
3. Extended service interval and modern energy saving technologies.
4. Long life radial and axial bearings for reliable 24/7 operation.
5. Three-layer seals that prevent dust from penetrating inside and protect the screw pair from destructive abrasive effects.
6. Low noise and vibration levels in all operating modes.
Applications
Ingersoll Rand airheads are primarily used in its full range of screw air compressors, including:
• Stationary screw air compressors: From small and medium-sized oil-injected screw air compressors to large oil-free screw air compressors.
• Mobile screw air compressors: Diesel-driven air compressors used in construction, mining, and other fields.
