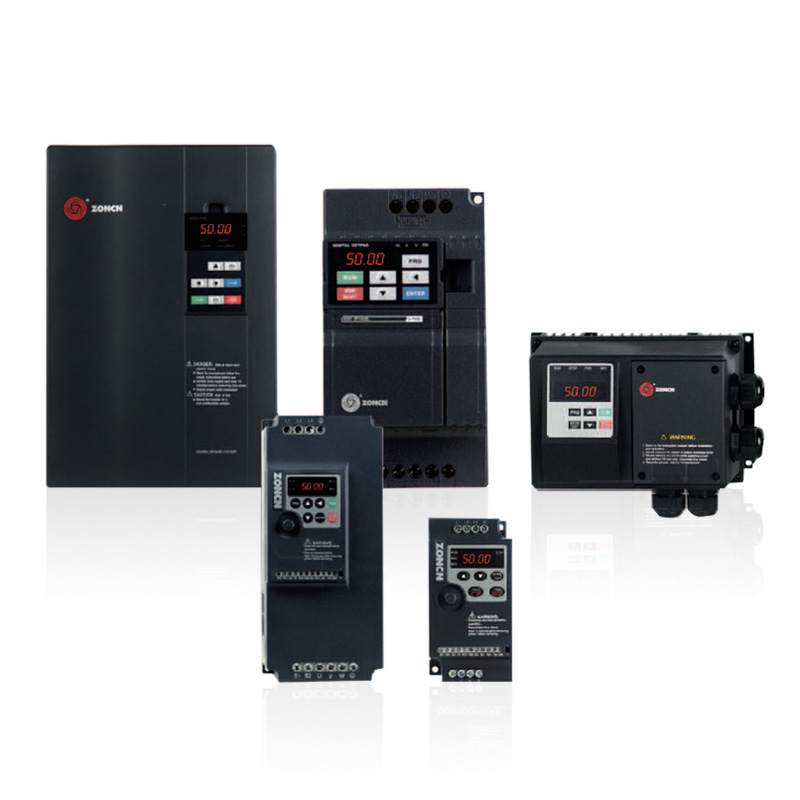

The ZONCN Z2400-37G/45P is a high-performance three-phase 380V vector variable frequency drive (VFD) engineered for industrial motor speed regulation and energy-saving operation. With a dual power rating design, this single unit supports both 37kW constant torque (G-type) for heavy-duty equipment and 45kW variable torque (P-type) for fans, pumps, and ventilation systems - one drive, multiple applications.
1. Dual Power Rating - One Drive, Two Applications
The Z2400-37G/45P uniquely combines 37kW G-type for constant torque loads (conveyors, mixers, machine tools) and 45kW P-type for variable torque loads (fans, pumps, ventilation). This eliminates the need to purchase two separate drives, reducing procurement costs and simplifying inventory management.
2. High-Precision Vector Control
Advanced Sensorless Flux Vector Control (SFVC) delivers 150% high torque output at 0.5Hz, with speed regulation accuracy up to ±0.5% and speed ratio of 1:100. This effectively resolves low-speed jitter and insufficient power issues common in traditional VFDs.
3. Intelligent Energy Saving
Built-in intelligent energy-saving algorithms automatically adjust output power based on real-time load changes, reducing equipment energy consumption by 20%-40%. Ideal for continuous-duty industrial operations where electricity costs represent a significant portion of total operating expenses.
4. Wide Voltage Adaptability
Supports 3-phase 380V AC input with ±15% voltage fluctuation tolerance, ensuring stable operation even in unstable power grid environments. Suitable for various regional industrial power supply conditions worldwide.
5. Robust Industrial Design
Automatic Voltage Regulation (AVR) : Maintains constant output voltage during mains fluctuations
Auto Voltage/Over-Current Stall Control : Prevents frequent tripping by automatically limiting current and voltage during operation
Rapid Current Limit : Avoids over-current faults and extends drive lifespan
DC Braking : 0.0Hz to maximum frequency, braking time 0.0-100.0s
6. Flexible Control Functions
16 Preset Speeds via simple PLC function or X terminal combination
Onboard PID for process-controlled closed-loop systems
4 Groups of Acceleration/Deceleration (0.0-6500.0s), straight-line and S-curve ramp modes
Multi-Point V/F Curve , N-power V/F curve, complete/half separation options.
| Parameter | Specification |
| Product Model | Z2400-37G/45P |
| Rated Power (G/P) | 37kW (Constant Torque) / 45kW (Variable Torque) |
| Input Voltage | 3-Phase AC 380V ±15% |
| Input Frequency | 50Hz / 60Hz |
| Control Mode | Sensorless Flux Vector Control (SFVC) / V/F Control |
| Max Output Frequency | 0-320Hz (Vector Control); 0-3200Hz (V/F Control) |
| Low-Frequency Torque | 150% rated torque @ 0.5Hz |
| Speed Regulation Accuracy | ±0.5% |
| Speed Range | 1:100 |
| Overload Capacity | 150% for 60s; 180% for 3s |
| Carrier Frequency | 1kHz-16kHz (Auto-adaptive) |
| Communication Interface | RS485 (Modbus Protocol) |
| Protection Class | IP20 |
| Braking Unit | Built-in for models ≤37kW |
| Certification | CE |
The ZONCN Z2400-37G/45P is widely deployed across global industrial sectors:
Air Compressors & Compressed Air Systems - Precise motor speed control for energy-efficient operation
Pumps & Water Treatment - Variable torque control for submersible pumps, circulation pumps
Fans & Ventilation Systems - Energy-saving regulation for HVAC and industrial ventilation
Conveyors & Material Handling - Constant torque control for mining conveyors, elevators, stacking machines
Machine Tools - High-precision spindle motor and feed axis control
Mining & Quarrying - Crushers, elevators, and heavy-load equipment
Rubber, Plastic & Extrusion - Mixing, forming, and extrusion line speed control
Food & Beverage Industry - Conveying, packaging, and process equipment
Robust export carton with shockproof foam inside to protect the VFD during long-distance transport. We support sea freight, air cargo and international express. Short lead time for standard stock models. OEM and customized service are acceptable.
Q1: What does "37G/45P" mean?
A: Dual power rating: 37kW for G-type (constant torque/heavy duty) and 45kW for P-type (variable torque/fan & pump) applications. One VFD covers both load types.
Q2: What are the main specifications?
A: 3-phase 380V ±15%, 50/60Hz; sensorless vector and V/F control; 0-320Hz in vector mode; 150% torque at 0.5Hz; speed accuracy ±0.5%.
Q3: What is the overload capacity?
A: G-type: 150% for 60s, 180% for 3s.
P-type: 120% for 60s, 150% for 3s.
Q4: Does it support PID and communication?
A: Yes. Built-in PID and RS485 Modbus for PLC, HMI, and SCADA integration. Supports up to 16 preset speeds.
Q5: What protection functions are included?
A: Over-current, over-voltage, under-voltage, overload, over-temperature, phase loss, output short circuit, stall prevention, and DC braking.
Q6: What are the typical applications?
A: Air compressors, pumps, fans, conveyors, machine tools, injection molding, textile machinery, water treatment, food packaging, and general industrial motor control.
Q7: What is the MOQ, delivery time, and payment terms?
A: MOQ: 1 unit. Delivery: 7-30 days. Payment: T/T, PayPal, Western Union.
Q8: What is the warranty and certification?
A: 12-month warranty. CE certified.
Q9: Is OEM/ODM available?
A: Yes. OEM/ODM supported for branding, custom parameters, and application-specific settings. MOQ applies.
