The Hanbell AB series is a renowned line of air-cooled scroll chiller and heat pump units designed for small to medium-scale applications. A 30kW (approximately 40 HP) model is a common and versatile capacity within this series.
Technical Parameters
| Model | Power (kW) | Rotating speed (rpm) | Air Delivery (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | S.F. | Dimension(mm) | Weight(kg) |

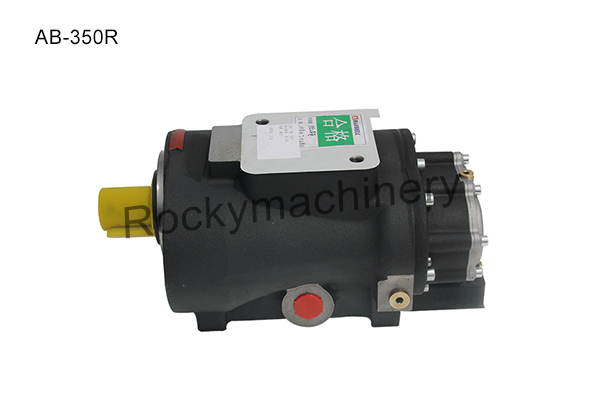

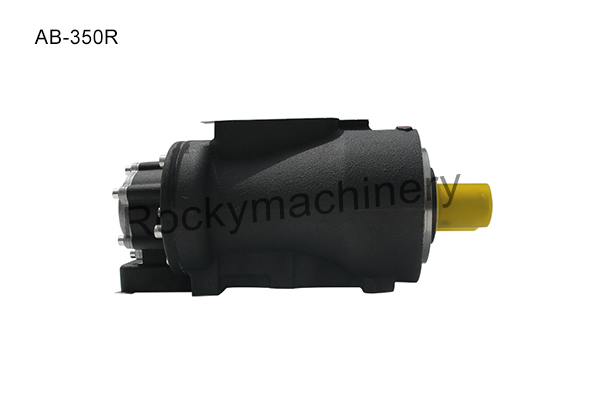

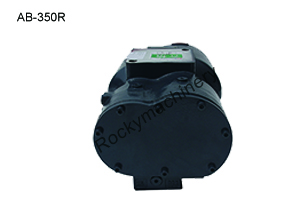

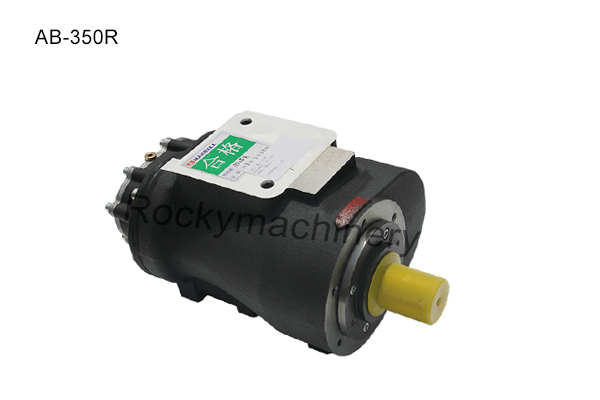

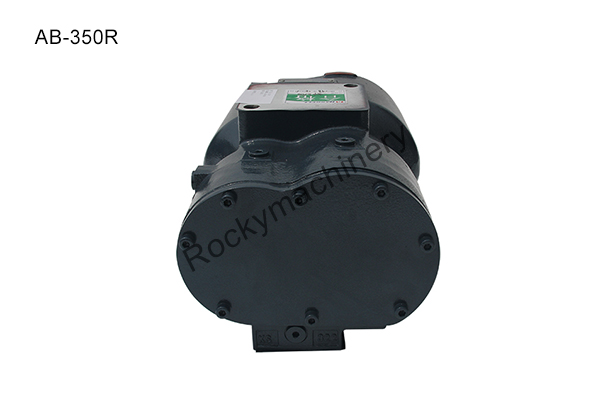

| AB-350RS | 30 | 2950 | 4.7 | 33.1 | 7.1 | 1.1 | 500*350*300 | 118 |
High Efficiency at Full Load: This model is engineered for high performance at rated (full) load conditions, delivering excellent Coefficients of Performance (COP) for both cooling and heating.
All-in-One Functionality: As a heat pump, it provides both cooling and heating from a single unit, switching modes via a reversing valve. This eliminates the need for a separate boiler for many applications, offering a year-round climate control solution.
Optimized Heat Exchangers:
Air-Side Coil: Features a V-type or cross-fin design with corrugated fins and inner-grooved copper tubes. This maximizes surface area and heat transfer efficiency while promoting effective water drainage and minimizing dirt accumulation.
Water-Side Heat Exchanger: Utilizes a high-efficiency shell-and-tube design, ensuring effective heat transfer between the refrigerant and the water circuit with low pressure drop.
Proven Reliability: Built around a robust single scroll compressor known for long service life.
High Full-Load Efficiency: Excellent COP values under design conditions.
Dual Functionality: Provides both cooling and heating, offering a versatile solution.
Comprehensive Control and Protection: Advanced controller with a full suite of safety features to protect the investment.
Rugged Construction: Designed for reliable outdoor operation in various climates.
BMS Compatible: Ready for integration into modern building automation systems.
Mid-sized commercial spaces (restaurants, retail stores, small offices, clinics)
School classrooms
Server rooms
Industrial process cooling
Apartment buildings (as a dedicated system for common areas)
