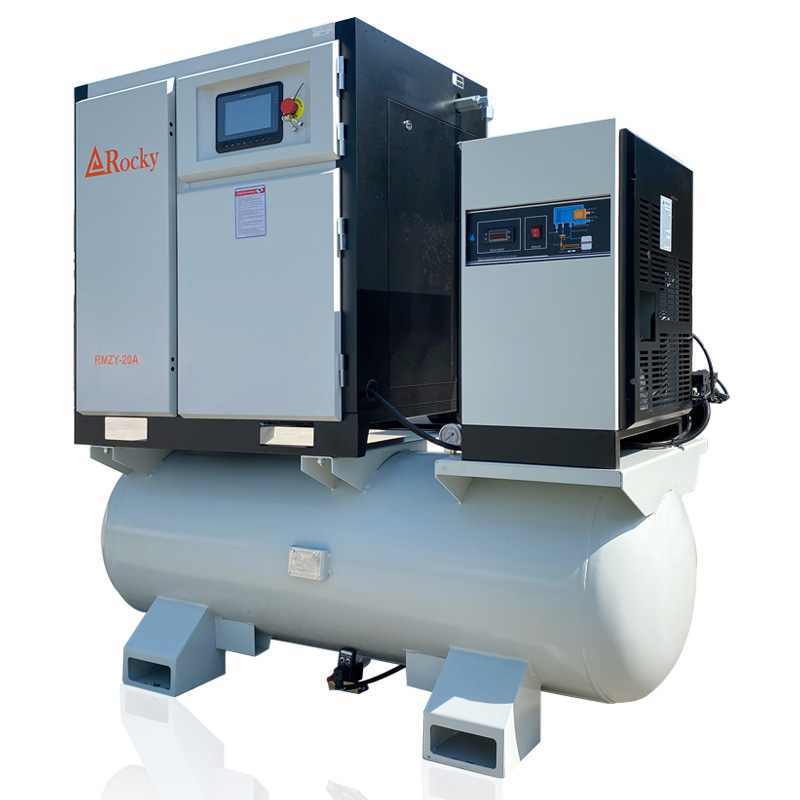

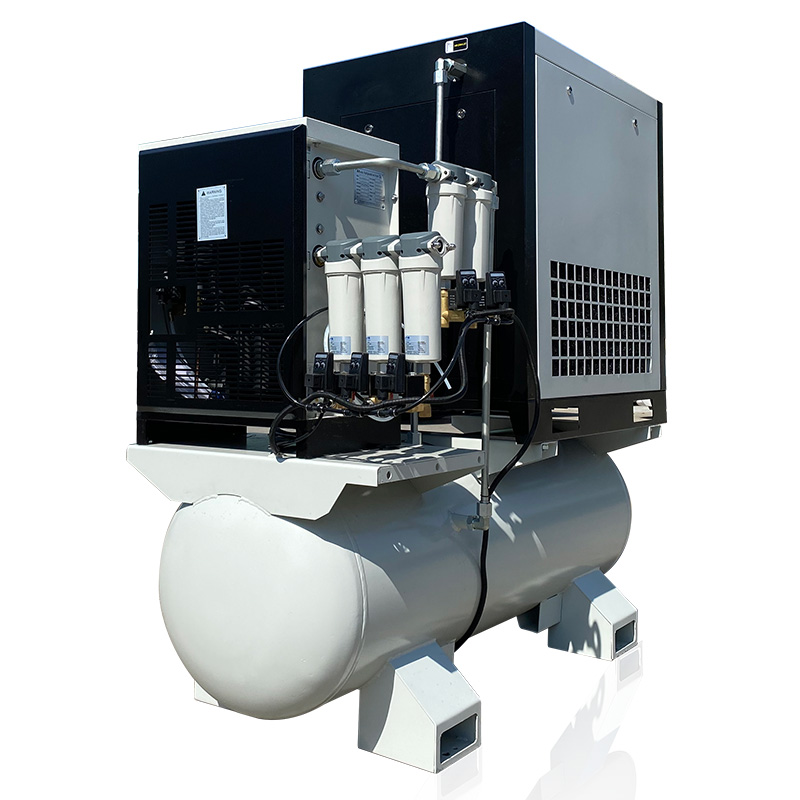

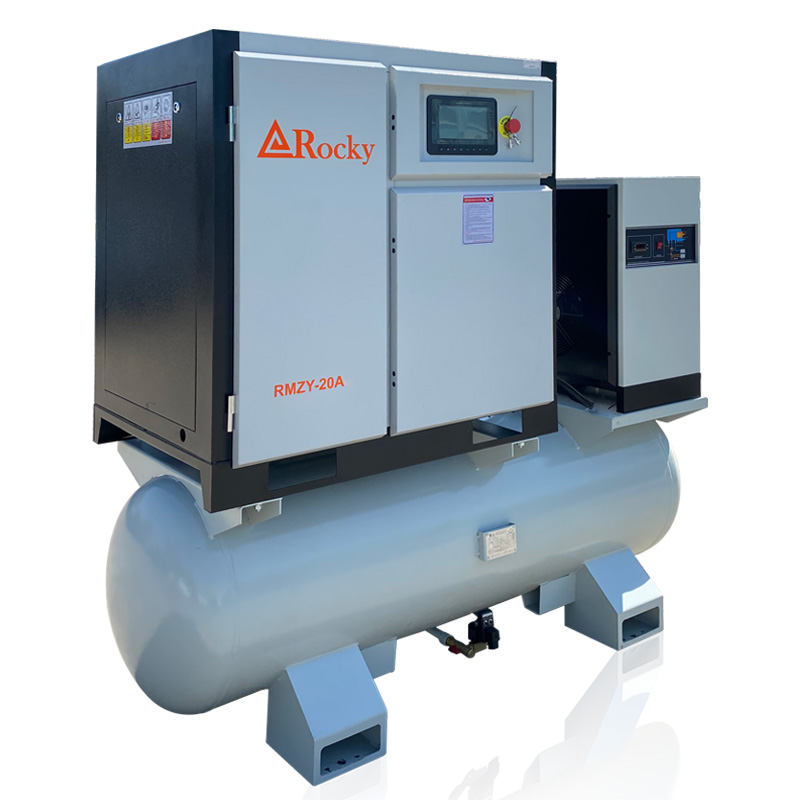

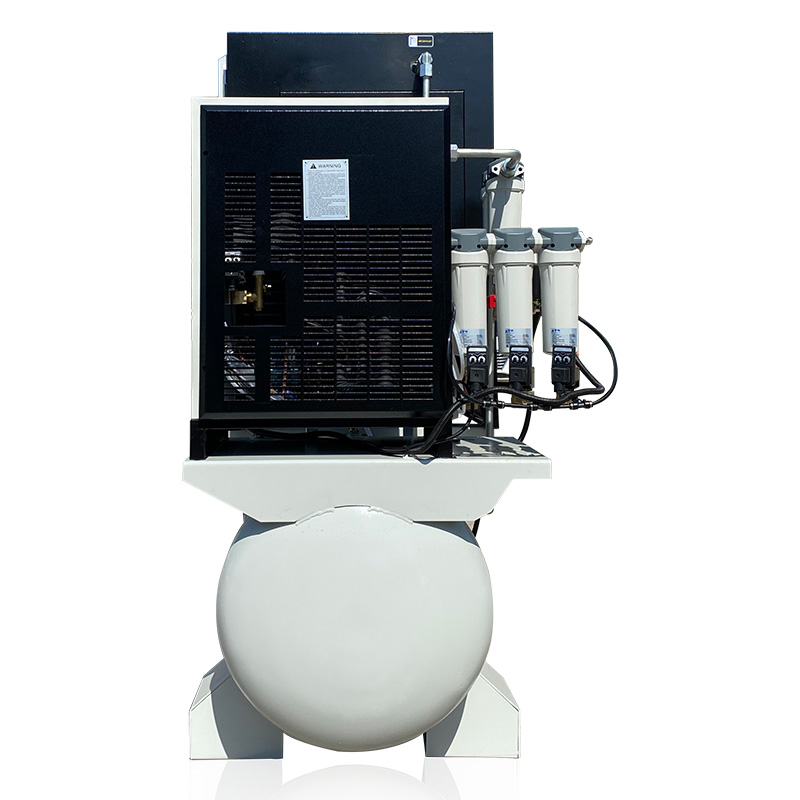

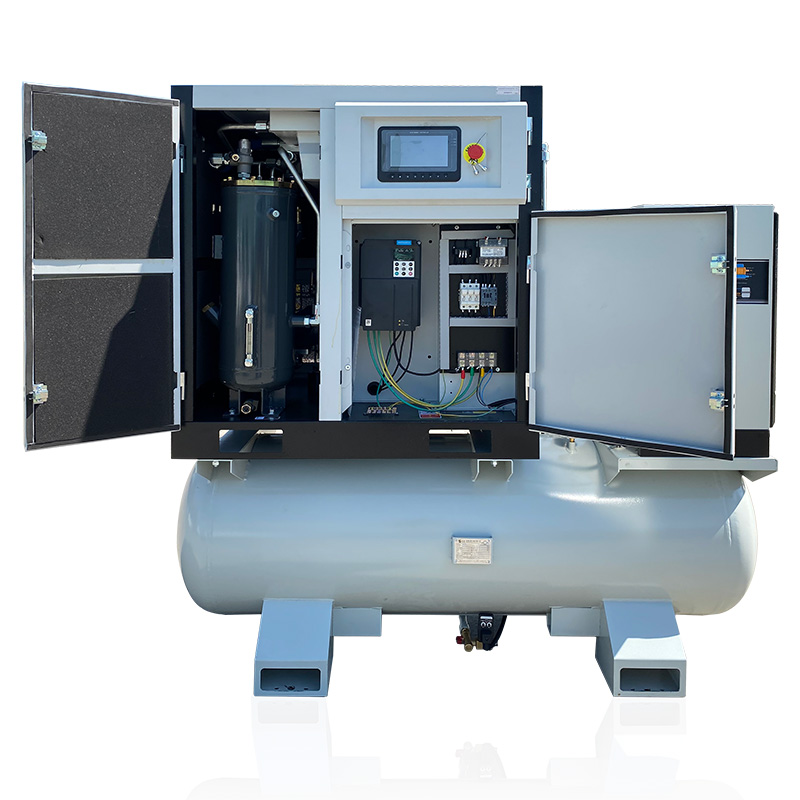

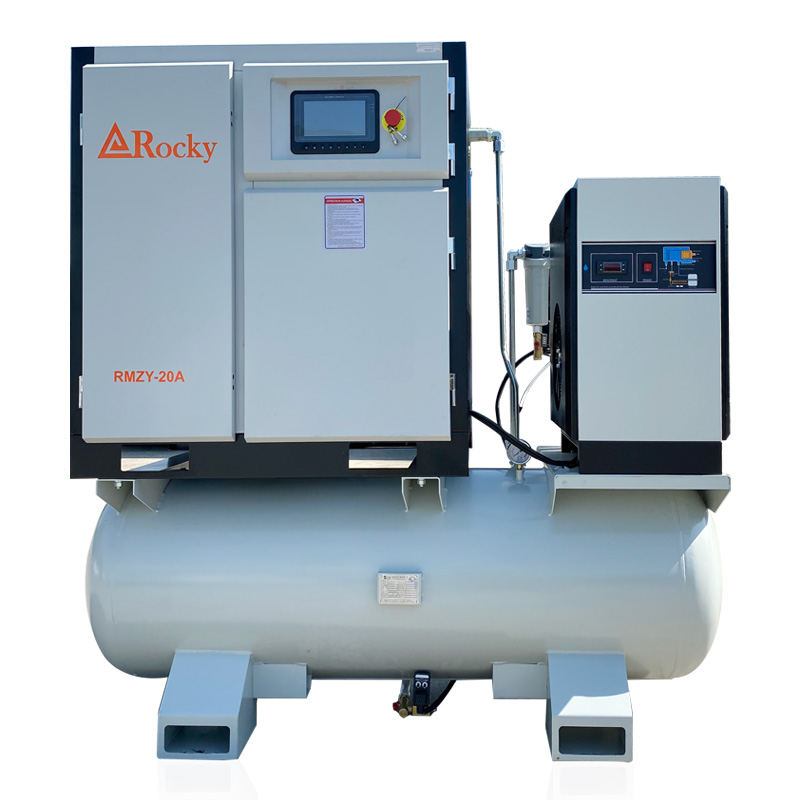

Rocky all-in-one screw air compressor
An all-in-one screw air compressor, also known as an integrated screw air compressor, integrates the core system of a screw air compressor (main unit, motor, control system) and post-processing equipment (air storage tank, refrigerated dryer, filter, etc.) into a unified box or rack to form a complete and compact compressed air supply system.
Core Advantages
Highly Integrated, Easy Installation
Users eliminate the need for complex on-site installation and piping connections. Plug-and-play operation significantly reduces installation time and costs.
Compact, Space-Saving Structure
All components are optimized for a compact layout, requiring minimal floor space.
Stable Operation, High Reliability
The screw airend boasts a sophisticated design, resulting in minimal wear and a long lifespan.
Low Noise, Environmentally Friendly
The integrated chassis often incorporates sound-absorbing foam and insulation to effectively reduce operating noise.
Intelligent Control, Easy Operation
These units are typically equipped with an advanced microcomputer control system, enabling one-touch start and stop, automatic load adjustment, and multiple protection features. The clear user interface facilitates parameter setting and troubleshooting.
High Energy Efficiency, Energy Saving and Power Saving
The integrated design reduces pressure loss at pipe connections. The intelligent control system automatically adjusts power output based on actual gas usage, avoiding energy waste during no-load operation and effectively reducing operating costs.
Built-in air receiver and drying system
"All-in-one" typically means a built-in air receiver and refrigerated dryer, providing higher quality, drier compressed air.
Model | Air Delivery (m3/min) max | Exhaust pressure (bar) max | Power (kW/hp) | Noise dB(A) | Outlet diameter(In) | Dimensions (mm) | Weight (kg) | Exhaust pressure dew point (°C) | Exhaust dust content (μm) | Exhaust oil content (ppm) | Gas storage tank capacity (L) |
| RMZY-10A8 | 1.20 | 8 | 7.5/10 | 63 | G3/4 | 1505*740*1430 | 350 | 2~10 | 0.01 | 0.001 | 260 |
| RMZY-15A8 | 1.70 | 8 | 11/15 | 65 | G3/4 | 1800*900*1780 | 410 | 2~10 | 0.01 | 0.001 | 400 |
| RMZY-20A8 | 2.30 | 8 | 15/20 | 65 | G3/4 | 1800*900*1780 | 430 | 2~10 | 0.01 | 0.001 | 400 |
| RMZY-30A8 | 3.60 | 8 | 22/30 | 68 | G3/4 | 1800*900*1980 | 530 | 2~10 | 0.01 | 0.001 | 400 |
Applications
• Small and medium-sized manufacturing enterprises: such as automotive parts processing, electronics assembly, textiles, and food packaging.
• Air supply to fixed workstations in the workshop: Serves as the central air source for the entire workshop.
• Noise-sensitive locations: such as laboratories, hospitals, and interior decoration.
• Equipment requiring high-quality compressed air: such as spray painting, precision instrument control, and pneumatic measurement equipment.
FAQS
Q1: What is this air compressor primarily used for?
A: It's widely used in industries such as automotive manufacturing, textiles, chemicals, food processing, and electronics assembly.
Q2: What's the difference between it and a traditional piston compressor?
A: The main difference lies in its more advanced technology: screw compressors offer smoother operation, lower noise, longer life, and greater energy efficiency. The integrated design eliminates complex installation, while traditional piston compressors are noisy, vibrate, and require frequent maintenance.
Q3: Does it require a dedicated foundation and machine room?
A: No dedicated foundation is required; it can simply be placed on a flat, solid surface. Because it's quieter and protected by a housing, the requirements for a machine room are relatively relaxed.
Q4: How is the so-called "energy saving" achieved?
A: Primarily through an intelligent control system: When air usage decreases, the unit automatically unloads, significantly reducing energy consumption. When pressure is insufficient, it automatically reloads. This prevents the motor from constantly running at full load, thus saving energy.
Q5: If a malfunction occurs, is repairing it a hassle?
A: Quite the contrary. Its control system usually has a fault self-diagnosis function, which can display the cause of the fault and facilitate troubleshooting.
