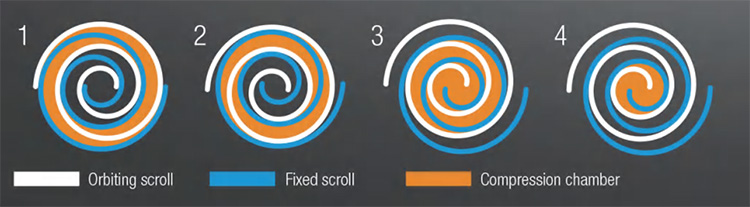

Scroll Compression Principle
Composed of a pair of intermeshing orbiting and stationary scrolls, the orbiting scroll rotates eccentrically around the stationary scroll, compressing the gas within the gradually shrinking vortex chamber and ultimately discharging it through the central exhaust port. This process is continuous and smooth, with minimal vibration and noise.
Product Parameters
| Oil free scroll air compressor | |||||||||
| Model | Air Delivery(m3/min) | Power (kW) | Air-end | Air tank | Noise dB(A) | Outlet diameter | Dimension (mm) | Weight (Kg) | |
| 8bar | 10bar | Power*Qty | Liters | L * W * H | |||||
| RO-2.2AT | 0.24 | 0.22 | 2.2 | 2.2*1 | 40 | 55 | G1/2 | 700*500*1220 | 160 |
| RO-3.7AT | 0.40 | 0.34 | 3.7 | 3.7*1 | 40 | 55 | G1/2 | 700*500*1220 | 170 |
| RO-2.2A | 0.24 | 0.22 | 2.2 | 2.2*1 | / | 55 | G1/2 | 650*500*870 | 125 |
| RO-3.7A | 0.40 | 0.34 | 3.7 | 3.7*1 | / | 55 | G1/2 | 650*500*870 | 135 |

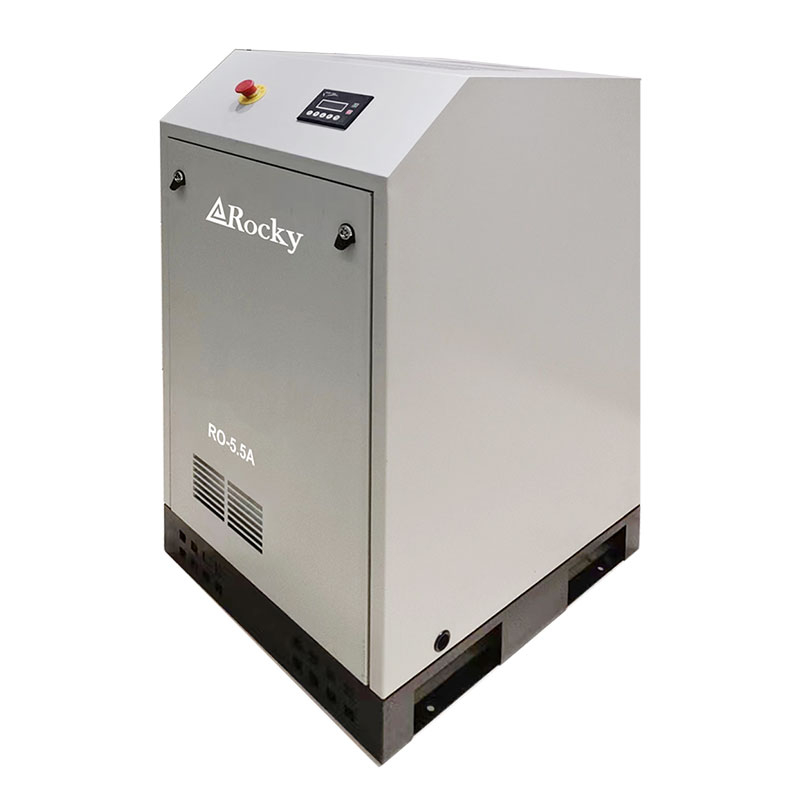

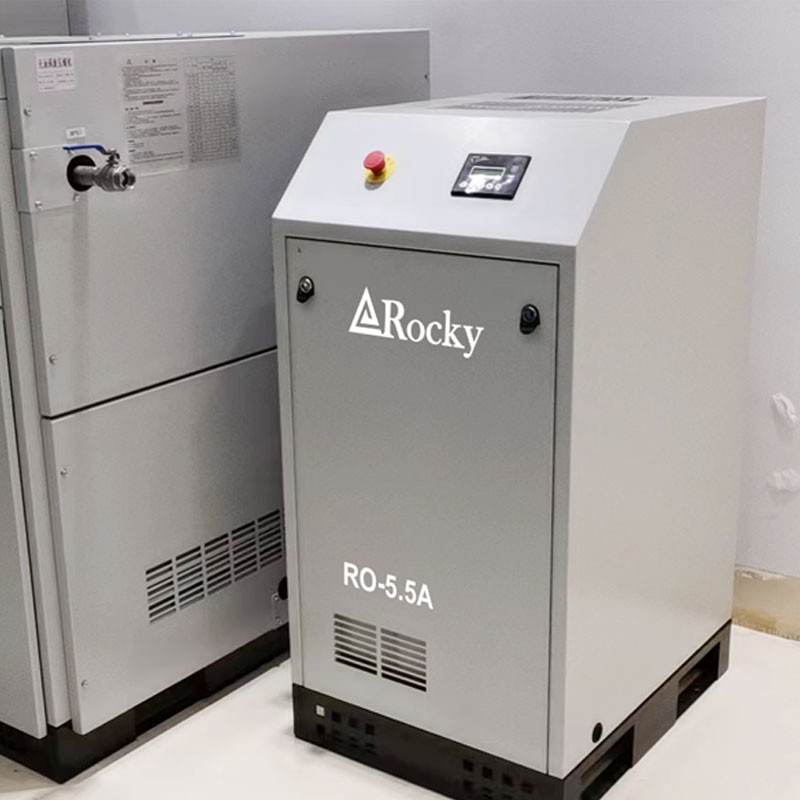

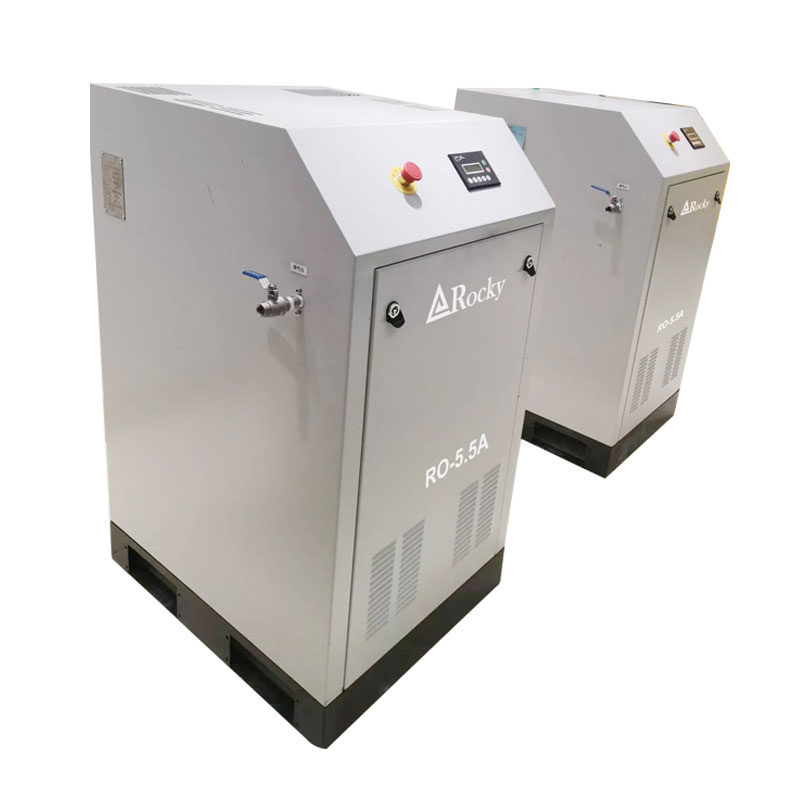

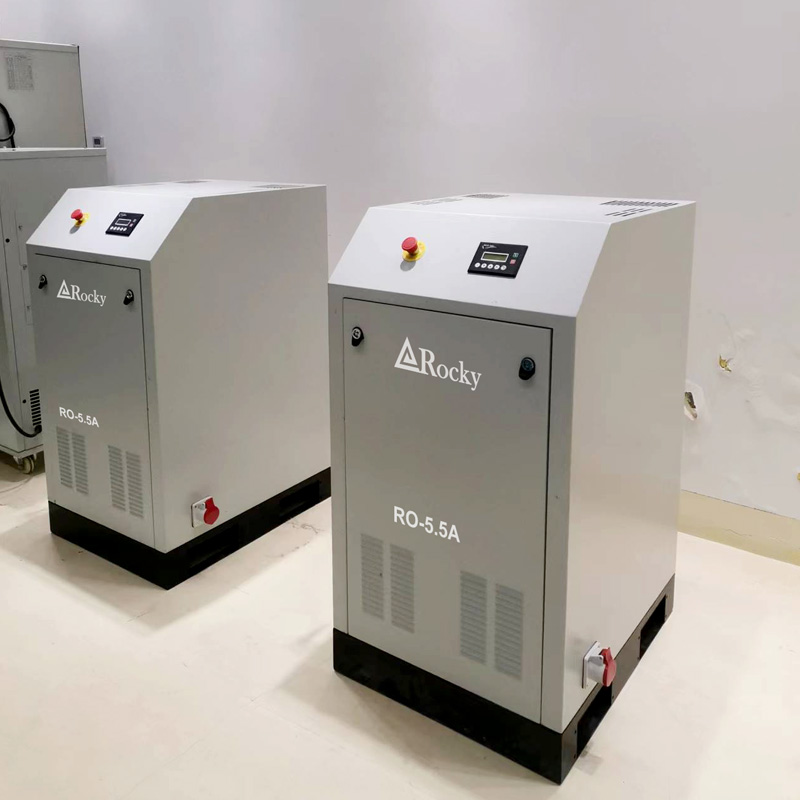

| RO-5.5A | 0.60 | 0.55 | 5.5 | 5.5*1 | / | 55 | G1/2 | 790*640*1050 | 190 |
| RO-7.5A | 0.80 | 0.68 | 7.4 | 3.7*2 | / | 60 | G1/2 | 980*675*1270 | 350 |
| RO-11A | 1.20 | 1.10 | 11 | 5.5*2 | / | 60 | G3/4 | 852*1274*1330 | 450 |
| RO-15A | 1.60 | 1.36 | 14.8 | 3.7*4 | / | 63 | G1 1/2 | 1565*1274*1330 | 700 |
| RO-16.5A | 1.80 | 1.65 | 16.5 | 5.5*3 | / | 63 | G1 1/2 | 1565*1274*1330 | 710 |
| RO-22A | 2.40 | 2.20 | 22 | 5.5*4 | / | 63 | G1 1/2 | 1565*1274*1330 | 730 |
| RO-33A | 3.60 | 3.30 | 33 | 5.5*6 | / | 65 | G1 1/2 | 1565*1274*1775 | 1020 |
| RO-44A | 4.80 | 4.40 | 44 | 5.5*8 | / | 68 | G1 1/2 | 1565*1274*1775 | 1250 |
Unique Advantages of Oil-Free Scroll Compressors
1. 100% Oil-Free Air: The compression process requires no lubricating oil, resulting in pure air output that meets ISO 8573-1 Class 0 standards.
2. Low Noise and Vibration: The scroll structure operates smoothly, typically below 60dB, making it suitable for quiet environments.
3. High Energy Efficiency: Low leakage and high volumetric efficiency yield approximately 30% energy savings compared to piston compressors.
4. Low Maintenance: No oil system, reducing maintenance costs such as oil and filter changes.
5. Compact Structure: Small size makes it suitable for applications with limited space.
Typical Applications
Medical Industry: Respirators, Dental Equipment.
Food & Beverage: Packaging and Filling Lines.
Electronics Manufacturing: Chip Production, Precision Instruments.
FAQ
Q1: What is the lifespan of an oil-free scroll compressor?
A: The core scroll typically has a lifespan of over 40,000 hours, but the air filter and seals require regular replacement.
Q2: Can it replace an oil-filled air compressor?
A: It is suitable for applications requiring high air quality, but for high power (>30kW) or large flow requirements, an oil-free screw compressor is recommended.
Q3: Is post-processing equipment required?
A: A refrigerated dryer or filter is still required to remove moisture and particles, but an oil filter is not required.
Q4: Does temperature rise affect performance?
A: The temperature rise of a scroll compressor is relatively low (<90°C), but in high-temperature environments, improved heat dissipation or derating are required.
