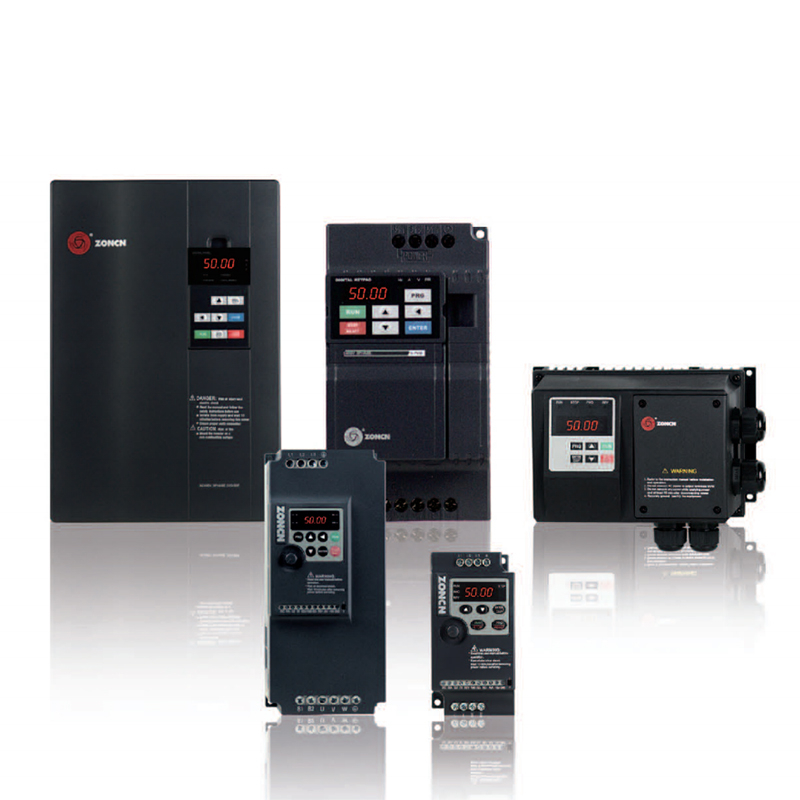

The ZONCN Z2400 series is a high-performance, general-purpose vector control inverter designed for precise speed regulation of three-phase asynchronous motors. It is part of the Z2000 series and features both V/F control and sensorless vector control (SVC) modes
Product features
1. High-Performance Control
Dual control modes: sensorless vector control (SVC) and V/F control
G-type (constant torque) and P-type (variable torque) dual ratings for optimal application matching
2. Strong Overload Capacity
150% rated current for 60 seconds; 180% rated current for 3 seconds (G-type)
Ensures stable operation under short-term heavy loads, reducing fault probability
3. Built-in Features
Built-in braking unit standard for models ≤37kW
Built-in PID for closed-loop process control
Built-in RS485 communication (Modbus-RTU protocol)
4. Robust & Reliable
IP20 protection class
Auto voltage regulation (AVR) maintains stable output during mains fluctuations
Rapid current limit prevents frequent overcurrent faults
5. Flexible Options
Optional built-in EMC filter
Optional EtherCAT communication
Supports permanent magnet (PM) motors (Z2000T series)
6. Compact & User-Friendly
Compact design with movable digital keypad
Easy installation, simple structure
Applications
The Z2400 series is widely deployed across diverse industrial sectors:
HVAC & Building Automation: Fans, pumps, compressors
Water & Wastewater Treatment: Pump regulation, flow control
Manufacturing & Machinery: Textile machinery, machine tools, conveyors
Mining & Heavy Industry: Conveyors, crushers, material handling
Oil, Gas & Energy: Pumps, compressor drives
Construction: Construction hoists/elevators (heavy-load applications)
Industrial Automation: Main spindle motors, packaging equipment
