In PET bottle blowing, compressed air does more than push a preform into shape. It comes into direct contact with the blowing process and strongly influences bottle quality, production stability, mold performance, and operating cost. Even when the blow molding machine, mold, and preform are properly selected, poor compressed air quality can still lead to unstable production and visible bottle defects.
Dry and clean compressed air is especially important in PET bottle production because the blowing process requires high-pressure air, fast cycle response, and consistent air delivery. Moisture, oil, dust, and unstable air quality can affect bottle appearance, wall thickness, hygiene, and equipment reliability.
For factories producing beverage bottles, edible oil bottles, cosmetic bottles, pharmaceutical packaging, or other PET containers, compressed air quality should not be treated as a secondary issue. It is part of the production process itself.
 |  |  |
PET bottle blowing starts with heated PET preforms. After the preform reaches the proper temperature, it is placed inside a mold. High-pressure compressed air then expands the softened preform until it fits the mold cavity.
This process seems simple, but it is highly sensitive to air quality and pressure stability. The compressed air must enter the preform quickly, evenly, and cleanly. If the air contains moisture, oil, or particles, those contaminants may affect the production environment, machine components, and final bottle consistency.
Many factories focus heavily on air pressure, such as 30 bar or 40 bar, but pressure alone is not enough. A compressor may reach the required pressure while still delivering wet, oily, or contaminated air.
For PET bottle blowing, the key question is not only “Can the compressor reach the pressure?” It is also “Can the system provide dry, clean, and stable air during continuous production?”
A complete PET Blowing Air Compressor system should therefore include not only the compressor itself, but also air drying, filtration, air storage, drainage, and proper pipeline design.
Moisture is one of the most common problems in compressed air systems. When air is compressed, its temperature rises and its ability to carry water vapor changes. As the air cools in the pipeline or storage tank, water vapor may condense into liquid water.
In PET bottle blowing, this moisture can create several production risks.
Bottle molds must maintain stable temperature conditions during production. If wet compressed air enters the system, condensation may interfere with mold temperature control and create inconsistent forming conditions.
Even small changes in mold temperature can influence bottle appearance, wall distribution, shrinkage, and dimensional consistency. For high-speed production lines, this can result in repeated quality fluctuations that are difficult to identify if the compressed air system is not checked.
Water in compressed air can accumulate in valves, pipelines, filters, and air tanks. Over time, this can increase corrosion risk and affect pneumatic components. In a PET bottle blowing line, valve response must be fast and reliable. Moisture-related sticking, corrosion, or blockage can reduce machine stability.
This is why an air dryer is not optional in many PET blowing systems. It helps remove moisture before the air reaches sensitive downstream equipment.
Wet air may contribute to unstable blowing performance. The result may include uneven bottle forming, inconsistent transparency, surface marks, or unstable strength. In some cases, the factory may blame the mold, preform, or blowing machine, while the root cause is actually poor compressed air treatment.
A dry air supply helps maintain a more predictable blowing process.
Clean compressed air means the air is free from harmful oil, particles, and other contaminants. This is especially important when PET bottles are used for food, beverage, cosmetics, or pharmaceutical products.
Oil in compressed air may come from oil-lubricated compressors, worn components, poor separation, or contaminated pipelines. Once oil enters the compressed air system, it can be difficult to remove completely.
In PET bottle blowing, oil contamination may affect bottle hygiene, odor, and customer acceptance. For packaging applications, especially beverage and food packaging, this is a serious quality issue.
Dust, pipe scale, rust, and other fine particles may enter the compressed air stream. These contaminants can affect valves, seals, molds, and blowing nozzles. They may also increase maintenance frequency and reduce the reliability of the production line.
Precision filters are used to remove these particles before air reaches the blow molding machine. For PET bottle factories, filtration protects both product quality and equipment performance.
PET bottles are often used for products that require clean packaging conditions. Even if the compressed air does not remain inside the bottle after production, the air still participates in the forming process. For this reason, clean compressed air is part of a responsible packaging production environment.
A clean air system helps factories reduce contamination risks and meet higher customer expectations for packaging quality.
Compressed air quality can directly affect how the finished bottle looks.
If air pressure fluctuates or airflow is affected by moisture and contamination, the preform may not expand evenly. This can result in uneven wall thickness, weak areas, or inconsistent bottle strength.
PET bottles often need good clarity and visual consistency. Contaminated air, unstable mold conditions, or moisture-related issues may contribute to poor appearance. For beverage bottles, visual quality is especially important because the bottle is part of the product presentation.
Moisture or particles in the compressed air system may increase the risk of marks, spots, or other surface defects. These issues may seem minor, but they can cause rejection in industries where packaging appearance matters.
Stable compressed air supports accurate bottle forming. When air quality and pressure delivery are unstable, the final bottle may show shape deviation, poor dimensional control, or inconsistent capacity.
A PET Blowing Air Compressor should work together with air treatment equipment. The main purpose of this equipment is to remove moisture, oil, particles, and pressure fluctuation before air reaches the blowing machine.
The air dryer removes moisture from compressed air. Depending on the required air quality and operating environment, factories may use a refrigerated air dryer or a desiccant air dryer.
A refrigerated air dryer is commonly used for general moisture removal. A desiccant air dryer can achieve a lower dew point when drier air is required. Rocky’s product category includes post-processing equipment such as refrigerated air dryers and desiccant air dryers for compressed air systems.
Precision filters remove solid particles, oil aerosols, and other fine impurities. In PET bottle blowing, filtration helps protect valves, molds, pipelines, and the final production process.
Filters must be selected according to the required air quality level. They should also be maintained regularly. A blocked or overloaded filter can create pressure drop and increase energy consumption.
The air tank stores compressed air and stabilizes pressure. It also helps separate some moisture from the air before the air moves downstream.
In PET bottle blowing, air demand is not always constant. During each blowing cycle, the system needs a strong burst of compressed air. A properly sized air tank helps reduce pressure fluctuation and supports smoother production.
Condensate must be removed from the compressed air system. Oil-water separators and drain valves help remove collected water and contaminants from air tanks, dryers, and filters.
If condensate is not drained properly, it may re-enter the system and reduce the effectiveness of the air treatment process.
Oil-free compression is often recommended for PET bottle blowing because it reduces the risk of oil entering the compressed air stream.
Many PET bottle manufacturers serve beverage, food, and personal care brands. These customers care about packaging cleanliness. An oil-free PET Blowing Air Compressor helps support cleaner production and reduces the risk of oil-related contamination.

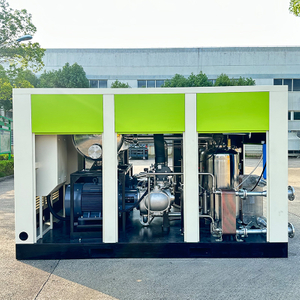

Rocky offers oil-free PET bottle blowing compressor options designed for 30–40 bar blow molding applications. The product information highlights 100% oil-free air, up to 40 bar operation, and continuous performance for bottle production lines.
Even with an oil-free compressor, filtration is still necessary. The compressed air system may still contain dust, rust, pipe scale, or moisture. Air filters and dryers are still required to achieve stable air quality.
Oil-free compression reduces one major contamination source, but the complete system still needs proper air treatment.
 |  |  |
Dry and clean air should not be separated from pressure stability. In PET bottle blowing, these factors work together.
If the air is dry and clean but pressure is unstable, bottle quality may still suffer. If the pressure is stable but the air is wet or contaminated, production problems may still occur. A reliable compressed air system must control both air quality and air delivery.
Blocked filters, undersized dryers, water accumulation, and narrow pipelines can all cause pressure loss. This means poor air treatment does not only affect cleanliness. It can also reduce system efficiency and make the compressor work harder.
When the air is clean, dry, and delivered at stable pressure, the blowing machine can perform more consistently. This helps reduce scrap rate, improve bottle strength, and maintain production rhythm.
Rocky Compressor provides compressed air solutions for PET bottle blowing applications, including oil-free PET blowing compressors and related air treatment equipment. The company’s product range covers PET bottle blowing compressors, piston air compressors, oil-free air compressors, refrigerated air dryers, desiccant air dryers, precision filters, air tanks, oil-water separators, and drain valves.
For PET bottle manufacturers, this system-based product structure is important. The quality of compressed air does not depend on the compressor alone. It depends on the complete system, including drying, filtration, storage, condensate removal, and correct equipment matching.
Rocky’s PET bottle blowing compressor solutions are designed around practical production needs such as oil-free air, high-pressure output, 24/7 continuous performance, VFD and half-load mode integration, and lower maintenance costs. These features help factories build a more stable compressed air system for continuous PET bottle production.
Factories may notice compressed air quality problems through production symptoms. These issues should be checked early before they become serious.
If bottle defects increase without clear changes in preform, mold, or machine settings, the compressed air system should be inspected. Moisture, oil, particles, or pressure instability may be involved.
Visible water in pipelines, tanks, or drains usually means the air drying system is not working properly or the condensate removal system is insufficient.
If filters become blocked quickly or pressure drop increases, there may be excessive contamination in the air system. This may require better filtration, dryer maintenance, or pipeline cleaning.
Frequent valve failure, sticking, corrosion, or unstable machine response may be linked to wet or dirty compressed air.
If filters, dryers, or pipelines create resistance, the compressor may need to work harder to maintain pressure. Poor air treatment can therefore increase energy cost.
A high-quality compressed air system still requires proper maintenance. Without maintenance, even a good system can gradually lose performance.
The air dryer should be inspected to make sure it is removing moisture effectively. Cooling performance, desiccant condition, drain function, and operating pressure should all be checked.
Filter elements should be replaced according to service conditions, not only by calendar time. A dirty filter can create pressure drop and reduce air quality.
Air tanks, dryers, filters, and separators should drain condensate reliably. Automatic drain valves can help maintain consistent drainage.
Old pipelines may contain rust, oil residue, or accumulated water. These problems can contaminate otherwise clean compressed air. Pipeline design and maintenance should be part of the air quality plan.
Factories should monitor pressure stability and air dryness. Dew point monitoring can help identify moisture problems before they affect production.
Dry and clean compressed air is essential for PET bottle blowing because it directly affects bottle quality, production stability, equipment life, and operating cost. Moisture can interfere with mold temperature control, cause corrosion, and create production instability. Oil and particles can increase contamination risk, damage components, and affect packaging quality.
A reliable PET Blowing Air Compressor system should therefore include more than a high-pressure compressor. It should include proper air drying, precision filtration, air storage, condensate removal, and system-level pressure control.
For PET bottle manufacturers, investing in dry and clean compressed air is not only about protecting equipment. It is about producing stable, consistent, and high-quality bottles. Rocky Compressor supports this need with oil-free PET bottle blowing compressors and complete compressed air treatment equipment for bottle production lines, helping factories achieve cleaner air, stable pressure, and more reliable long-term operation.
