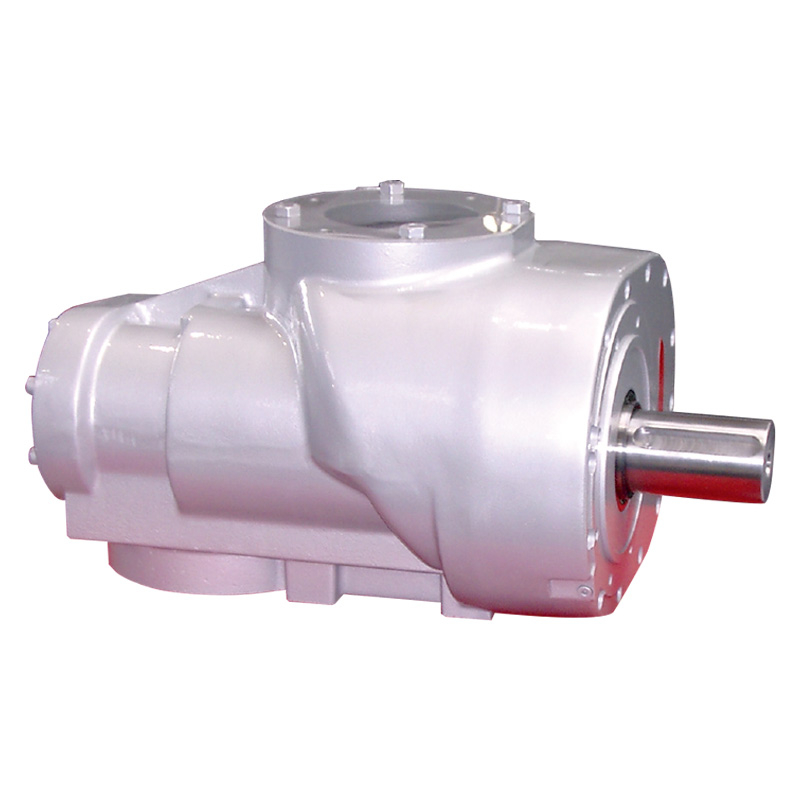

The CF128R is a single-stage, oil-injected screw air end manufactured by Ingersoll Rand (through its GHH-RAND subsidiary). It is designed for belt drive and direct drive systems, offering flexibility for various industrial compressor configurations. The CF128R is engineered for reliable, continuous operation in general industrial applications.
Single-Stage Compression – Simple, reliable design ideal for a wide range of industrial applications.
Flexible Drive Options – Compatible with both belt drive and direct drive systems for easy integration.-
Wide Pressure Range – Operates from 6 to 16 bar, accommodating diverse application requirements.
Oil-Injected Design – Provides efficient cooling and lubrication, ensuring long service life and reliable performance.
Compact Footprint – Lightweight and space-saving design (85 kg) simplifies installation and maintenance.
High Efficiency – Optimized rotor profiles deliver excellent volumetric efficiency for energy savings
Technical Parameters
| Model | Power (kW) | Flow (m³/min) | Working pressure ( bar) | Dimensions(mm) | Weight (kg) |
| CF128R | 90 | 15.93 | 6~16 | 722*433*370 | 265 |
| CF128G | 90 | 20.8 | 6~16 | 801*433*370 | 280 |
| CF128LG | 110 | 28.8 | 6~11.5 | 909*433*370 | 330 |
Application
The CF128R is widely used in general industrial compressed air systems across various sectors :
Manufacturing – Powers pneumatic tools, automation equipment, and assembly lines
Mining & Construction – Supplies compressed air for drilling rigs and heavy equipment
Automotive – Provides reliable air for paint shops, pneumatic clamps, and tire manufacturing
Food & Beverage – Delivers clean compressed air when paired with appropriate filtration
Packaging & Printing – Supports high-speed packaging lines and printing presses
General Industry – Suitable for any application requiring compressed air in the 6–16 bar ran
