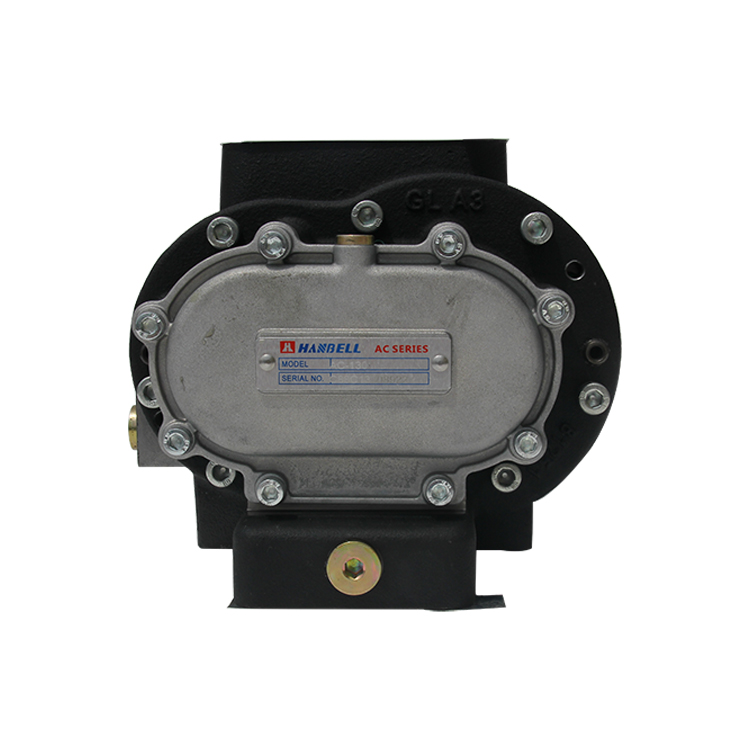

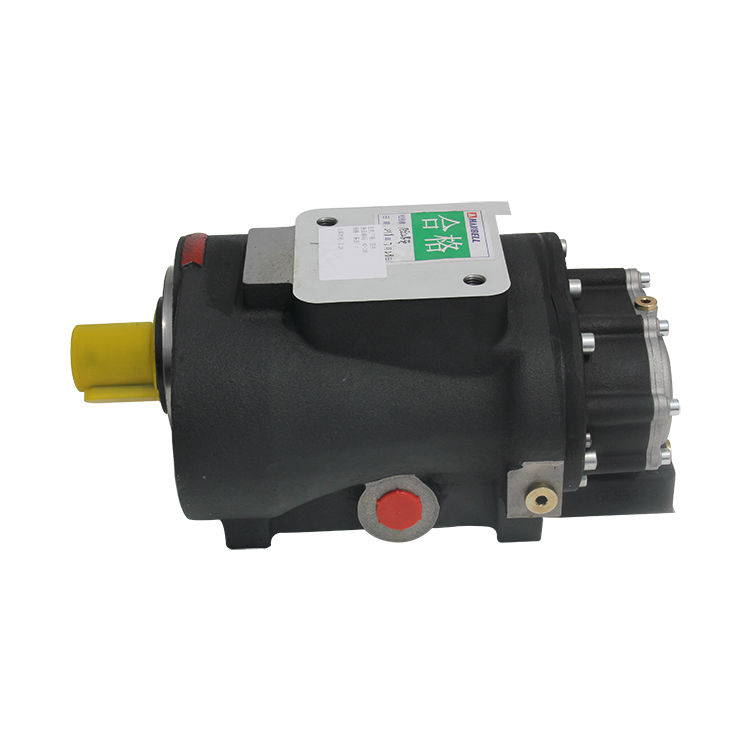

The Hanbell AC-130 is a robust and efficient oil-flooded rotary screw air compressor designed for medium to heavy-duty industrial applications. It strikes an optimal balance between substantial air delivery, proven reliability, and operational economy, making it a popular choice for a wide range of facilities requiring a dependable air source.
Technical Parameters
| Model | Power (kW) | Rotating speed (rpm) | Air Delivety (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | Dimension(mm) | Weight(kg) |
| AC-130 | 11 | 3000 | 1.92 | 12.7 | 6.61 | 380*200*170 | 50 |
| AC-130 | 15 | 3600 | 2.34 | 15.6 | 6.67 | 380*200*170 | 50 |
Substantial Air Flow Capacity
The "130" model designation indicates a Free Air Delivery (FAD) of approximately 22 - 24 m³/min (around 780 - 850 CFM).
It is commonly configured to deliver compressed air at standard industrial pressures, including 8 bar (116 psi), 10 bar (145 psi), and 13 bar (189 psi), providing versatile power for a broad array of industrial machinery.
Proven Hanbell Air End Technology
At its core is a Hanbell GS series or similarly reliable oil-flooded air end. It features the brand's signature asymmetric profile rotors, which are precision-machined for efficient compression, low operating noise, and extended service life, ensuring stable pressure output.
Efficient Drive System
The AC-130 typically features a belt-drive system. This design provides flexibility for fine-tuning pressure/output within a range by changing pulley sizes and offers beneficial isolation between the motor and air end, protecting both components.
It is powered by a high-efficiency electric motor (often IE3 premium efficiency class), which is optimally sized for its output to minimize energy waste.
Intelligent Control and Monitoring
It is equipped with an advanced microprocessor-based controller. This system provides clear digital readouts of operating parameters (pressure, temperature, hours), manages the load/unload cycle efficiently, and features diagnostic alerts for maintenance and troubleshooting.
This enhances operational control and helps in preventing downtime through timely maintenance warnings.
Integrated Package with Efficient Cooling
The unit is a complete packaged compressor, integrating the air end, motor, cooling system, oil separator, and controls on a single skid.
It is equipped with a large, efficient aftercooler and oil cooler, often with a fan sized for adequate heat dissipation even in warmer ambient conditions, ensuring consistent performance and protecting downstream equipment.
Excellent Energy Efficiency
The combination of the efficient Hanbell air end, a premium efficiency motor, and an intelligent control system that minimizes unloaded running hours results in a low specific power consumption (kW/CFM or kW/m³/min). This translates directly into significant savings on electricity costs, offering a strong return on investment.
High Reliability and Durability
Built with industrial-grade components and Hanbell's proven engineering, the AC-130 is designed for continuous operation (24/7 capability) in demanding environments. Its robust construction ensures high uptime and a long operational lifespan, protecting your production schedule.
Low Total Cost of Ownership (TCO)
Beyond its energy efficiency, the model is designed for ease of maintenance. Accessibility to filters and separators reduces service time and labor costs. Its reliability also minimizes the risk of costly unplanned downtime and major repairs.
Operational Stability and Air Quality
The machine is designed to deliver stable air pressure, which is critical for the consistent operation of sensitive pneumatic equipment. It produces air with low oil carry-over, providing a good foundation for clean air when paired with appropriate air treatment (dryers and filters).
User-Friendly Design:
The logical layout and intuitive control panel make daily operation and routine maintenance straightforward, reducing the need for highly specialized technician involvement for basic tasks.
Heavy Manufacturing & Metal Fabrication: Powering CNC machining centers, laser cutters, plasma cutters, pneumatic presses, and extensive arrays of tools in large workshops and factories.
Automotive & Aerospace Manufacturing: Used on production lines for operating robotic arms, painting systems, assembly tools, and testing equipment in manufacturing and repair facilities.
Chemical & Plastic Processing: Providing air for material handling, pneumatic conveying of pellets/powders, process air, and operating machinery in injection molding and extrusion plants.
Food & Beverage Production: Serving as a central air source for packaging machines (e.g., bottling, canning), fermentation processes, and automation lines in medium to large processing plants (requires downstream air treatment).
Mining & Quarrying: Powering drilling equipment, material handling systems, and workshop tools in mining operations and aggregate processing plants.
General Industry: A reliable air source for large-scale woodworking, textile mills, and equipment manufacturing facilities.
