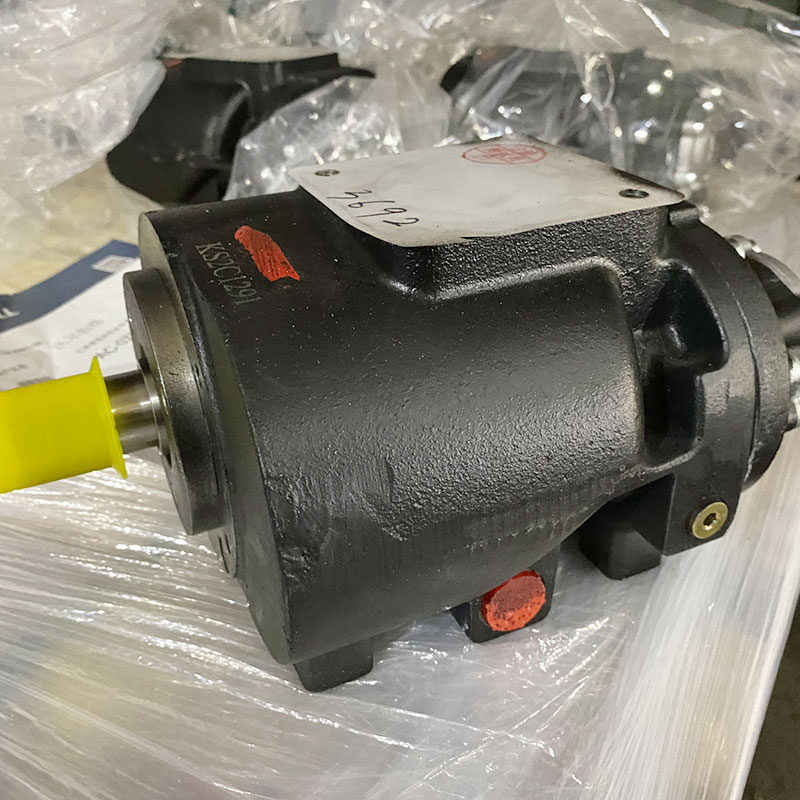

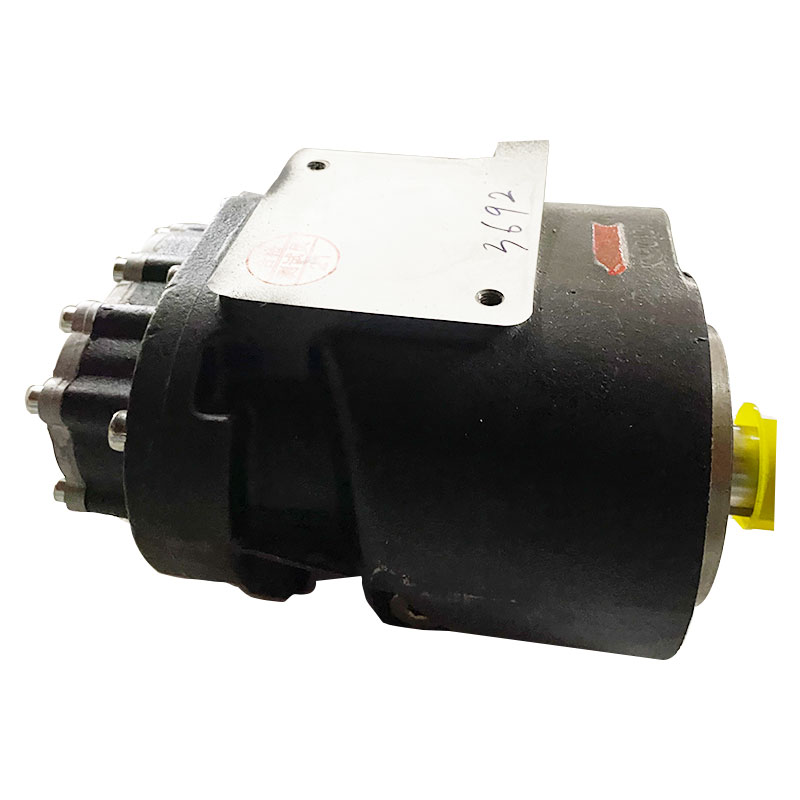

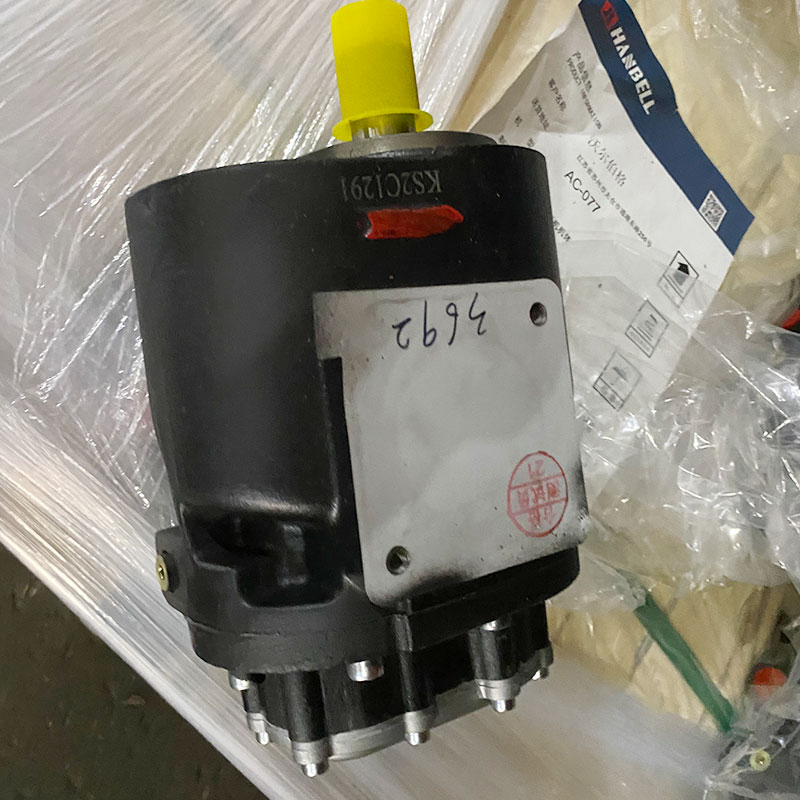

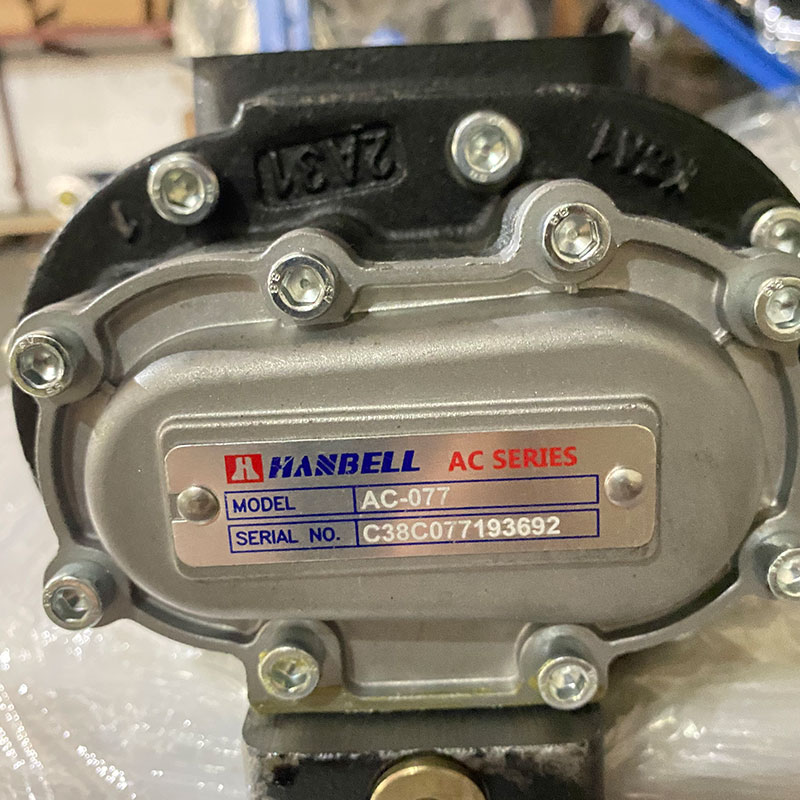

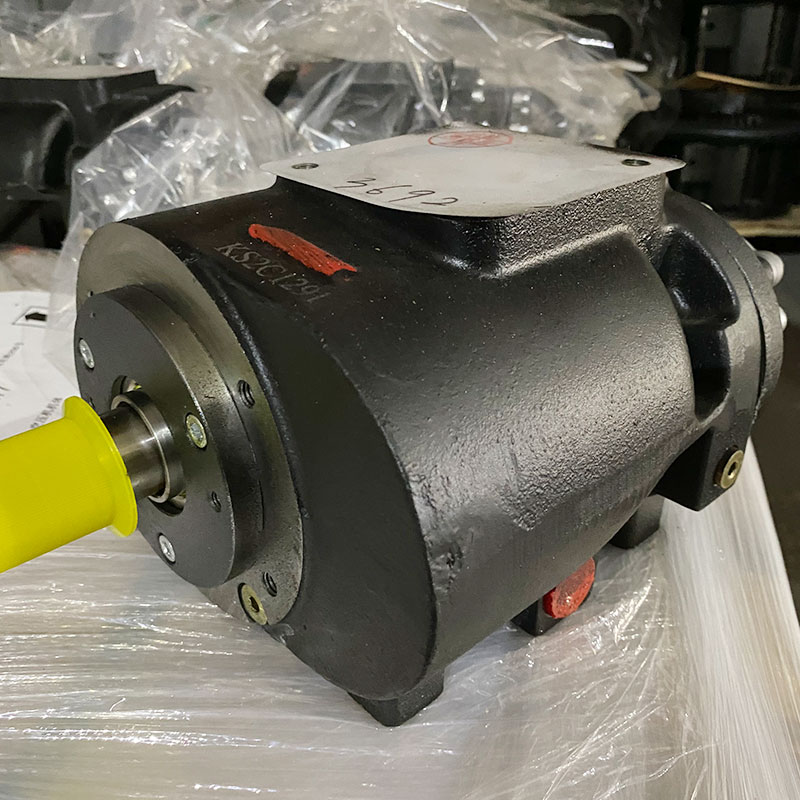

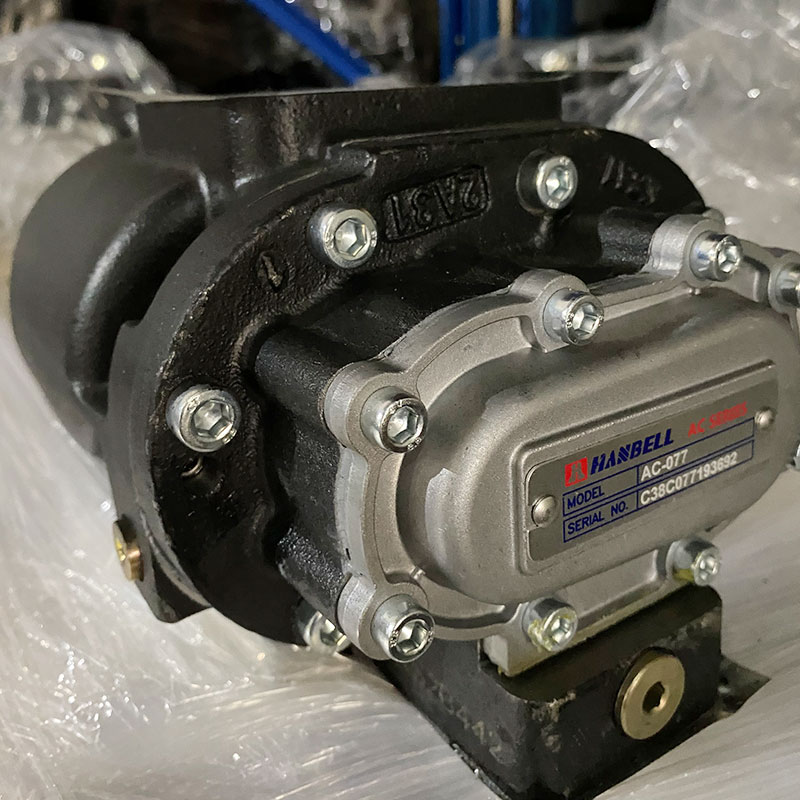

The Hanbell AC-077 is a compact and efficient oil-flooded rotary screw air compressor, designed to deliver reliable performance in a wide range of small to medium-duty industrial applications. It embodies Hanbell's core engineering principles of reliability, efficiency, and user-friendliness in a smaller package.
Technical Parameters
| Model | Power (kW) | Rotating speed (rpm) | Air Delivety (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | Dimension(mm) | Weight(kg) |
| AC-077 | 7.5 | 3600 | 1.03 | 7.3 | 7.09 | 282*178*140 | 18 |
Moderate Air Flow Capacity
The "077" model designation typically corresponds to a Free Air Delivery (FAD) of approximately 8.5 - 9.5 m³/min (around 300 - 335 CFM).
It is commonly configured to deliver compressed air at standard industrial pressures of 7 bar (102 psi), 8 bar (116 psi), 10 bar (145 psi), and 13 bar (189 psi), making it versatile for various tools and equipment.
Hanbell GS Series Air End
The heart of the compressor is a Hanbell GS series oil-flooded air end, known for its high reliability. It features Hanbell's signature asymmetric profile rotors, which are precision-machined for efficient compression, low noise, and long service life.
Belt-Driven or Direct-Driven System
Depending on the specific configuration, the AC-077 may utilize a belt-drive system. This offers flexibility in pressure adjustment by changing pulley sizes and provides inherent isolation between the motor and air end.
Alternatively, some configurations may feature a direct-drive system for higher mechanical efficiency and reduced maintenance.
User-Friendly Control System
It is equipped with a simple and reliable microprocessor-based controller. This controller provides essential functions such as start/stop, load/unload control, and basic monitoring of key parameters like pressure, temperature, and maintenance intervals.
It often includes diagnostic indicators for common issues, facilitating quick troubleshooting.
Integrated Package Design
The compressor comes as a fully assembled package, including the compressor element, motor, oil cooler, air/oil separator, and minimum pressure valve, all mounted on a single frame and housed within a sturdy canopy. This integrated design simplifies installation and saves floor space.
Cost-Effectiveness
The AC-077 offers an excellent balance of performance and initial investment cost, providing a solid entry point into the Hanbell brand's reliability without a premium price tag. Its simple design also contributes to lower maintenance costs.
Energy Efficiency
The efficient GS series air end, combined with an appropriately sized standard efficiency (e.g., IE2 or IE3) motor, ensures good energy performance for its class, helping to keep operational electricity costs manageable.
Reliability and Durability
Built with Hanbell's robust engineering standards, this model is designed for continuous operation in demanding industrial environments. Its proven components and design ensure high uptime and a long operational lifespan.
Ease of Maintenance
The layout is designed for serviceability. Key maintenance items like the air filter, oil filter, and oil separator are typically easily accessible, reducing downtime and labor costs for routine servicing.
Compact and Space-Saving
Its integrated package design makes it a space-efficient solution for workshops and plants where floor space is at a premium.
General Manufacturing: Powering pneumatic tools, small automation equipment, assembly lines, and clamping devices in workshops and factories.
Automotive and Repair: Used in auto repair shops, tire shops, and small manufacturing units for operating impact wrenches, paint sprayers, lift systems, and inflation.
Food and Beverage: Suitable for applications like packaging (e.g., form-fill-seal machines), bottling, and light pneumatic conveying in small to medium processing plants (often requiring additional air treatment).
Textile Industry: Powering air jets on looms, spinning machines, and other pneumatic controls in textile mills.
Construction: Providing air for sandblasting, painting, and powering pneumatic tools on smaller construction sites or in equipment yards.
Woodworking and Furniture: Operating nail guns, staplers, clamping systems, and sanding equipment in workshops.
