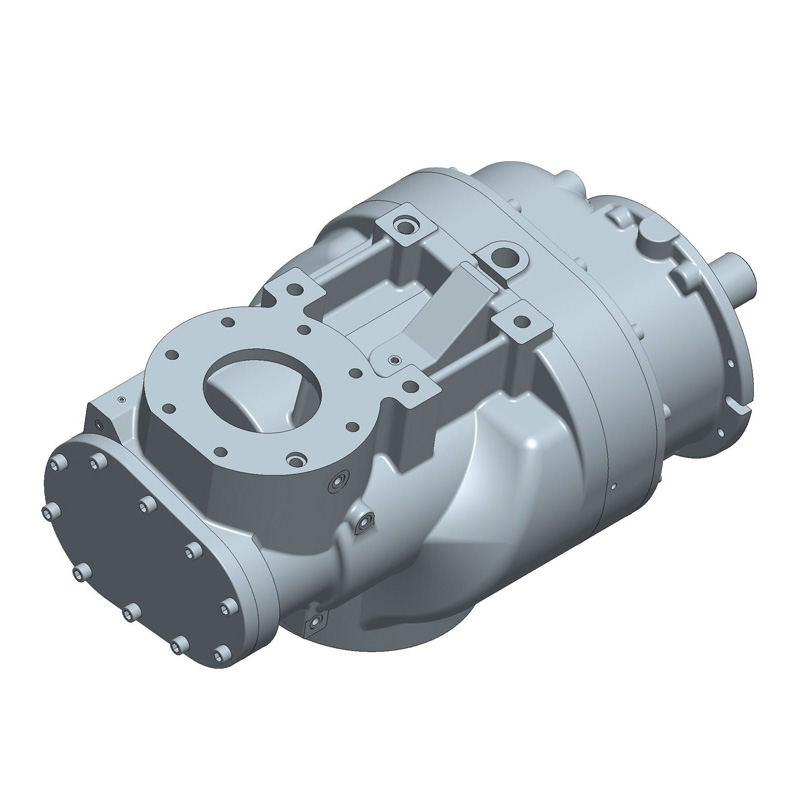

This is a single-stage, oil-injected screw compressor airend designed by Ingersoll Rand. Its most notable feature is the integrated gear drive, which means the gearbox is built into the airend, forming a compact, integrated power transmission unit.
Product features
1. Integrated Gear Drive
Efficient and Precise Transmission: Optimized gear matching ensures synchronized rotation of the male and female rotors at optimal speeds, reducing internal leakage and improving volumetric efficiency and energy efficiency.
2. Single-Stage Compression
Compact Structure and Easy Maintenance: Air is compressed to the target pressure within a pair of rotors in a single operation. The equipment is relatively simple and suitable for common industrial pressure requirements.
3. Oil-Injected Cooling
Cooling, Sealing, and Lubrication: Oil is injected during the compression process to effectively cool the air, seal the rotor gaps, and lubricate the bearings, resulting in high efficiency and reliability.
4. General Industrial
Durable and Versatile: Designed to meet the general needs of various industrial scenarios, it adheres to Ingersoll Rand manufacturing standards for high reliability and long life.
Technical Parameters
| Model | Power (kW) | Flow (m³/min) | Working pressure ( bar) | Dimensions(mm) | Weight (kg) |
| CF128LG | 110 | 28.8 | 6~11.5 | 909*433*370 | 330 |
| CF128G | 90 | 15.93 | 6~16 | 801*433*370 | 280 |
| CF128R | 90 | 15.93 | 6~16 | 722*433*370 | 265 |
Application
As stated, it's suitable for general industrial applications, covering a wide range of industries requiring a stable, reliable air source, such as:
Manufacturing: factory pneumatic tools, automated production lines, and material handling.
Automotive: parts manufacturing, spray painting, and assembly lines.
Textile: air-jet looms and spinning equipment.
Food and beverage: packaging and filling equipment (requires back-end air purification equipment).
