Adsorbents (such as molecular sieves) are used to remove moisture from the compressed air, and part of the dried compressed air (about 15%) is used directly for purge regeneration, without the need for external heating drying equipment.
Product features
• Simple structure, no heating elements, low failure rate.
• Low dew point (below -40°C), excellent drying effect.
• Suitable for special environments such as explosion-proof and power-off environments.
• Easy maintenance, requiring only regular replacement of the adsorbent.
Technical Parameters

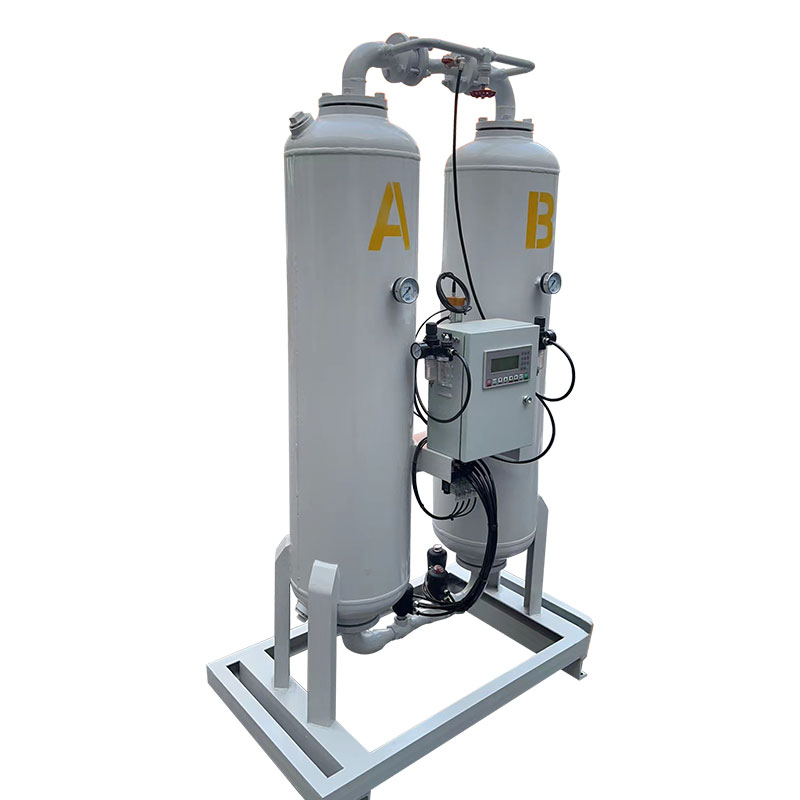

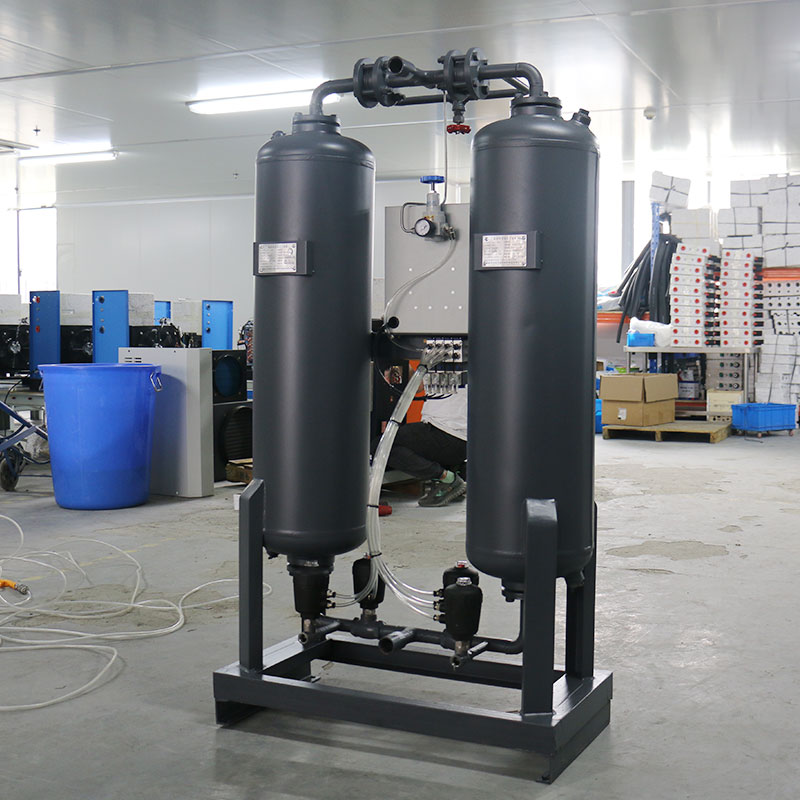

| SXD Series Heatless desiccant air dryer | ||||||
| Model | Air Delivery (m3/min) | Voltage (V/HZ) | Power (kW) | Inlet/Outlet (PT) | Dimension (mm) | Weight (Kg) |
| L*W*H | ||||||
| SXD-01 | 1.20 | 220V/50HZ | 0.2 | RC1” | 670*460*1305 | 105 |
| SXD-02 | 2.4 | 220V/50HZ | 0.2 | RC1” | 670*450*1485 | 135 |
| SXD-03 | 3.2 | 220V/50HZ | 0.2 | RC1” | 850*500*1385 | 187 |
Main Applications
• Explosion-proof locations such as petrochemicals
• Power generation, instrumentation, and other applications requiring high dew point
• Mobile equipment such as ships and railways
• Laboratories, precision manufacturing, and other applications requiring clean air
FAQ
1. What is the regeneration gas consumption?
Approximately 15% of the compressed air is used for regeneration.
2. What is the dew point?
Typically -20°C to -40°C.
3. Is a power source required?
No, it operates entirely pneumatically.
4. How often should the adsorbent be replaced?
Generally, every 2-5 years, depending on the operating environment.
5. Is it suitable for high-flow applications?
Yes, but regeneration gas consumption will increase year-on-year.
