| Quantity: | |
|---|---|
The core advantages of the automatic drain valve (or electronic drain valve) can be summarized as follows: By automating the drainage process, it significantly enhances the efficiency, reliability and economy of the compressed air system.
Features
1. Automatic control:
The fully automatic drainage valve does not require manual intervention. It automatically controls drainage through sensors and controllers, which can save a lot of labor costs.
2. Rapid drainage:
The fully automatic drainage valve can quickly remove liquid from the drainage system, greatly improving drainage efficiency.
3. High efficiency and energy saving:
The fully automatic drain valve only opens when drainage is needed, which can significantly reduce energy consumption.
4. Simple maintenance:
The fully automatic drain valve has a simple structure and is easy to maintain, which can reduce maintenance costs and failure rates.
Technical parameters

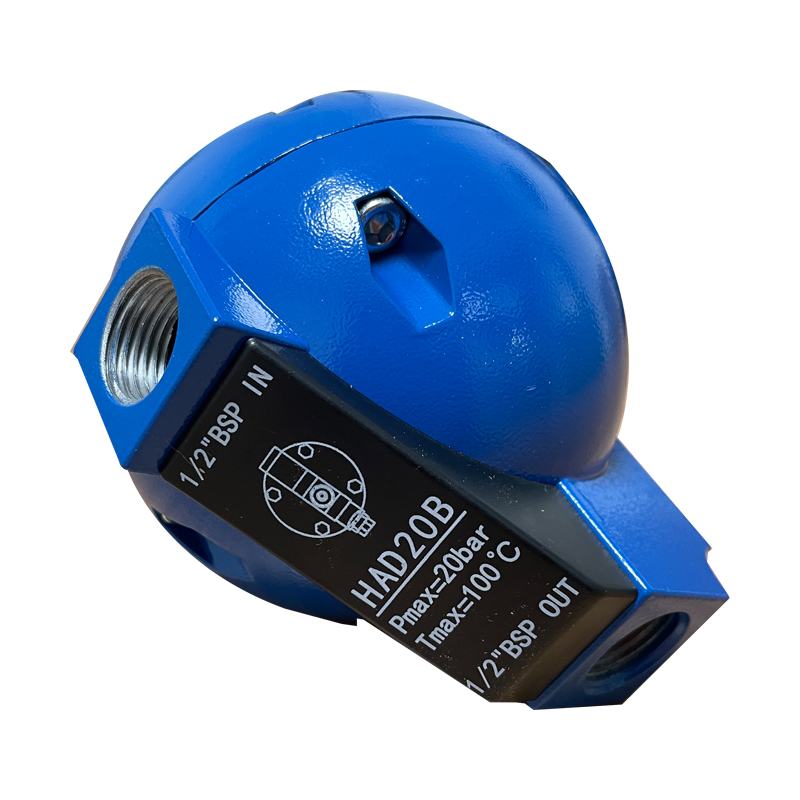

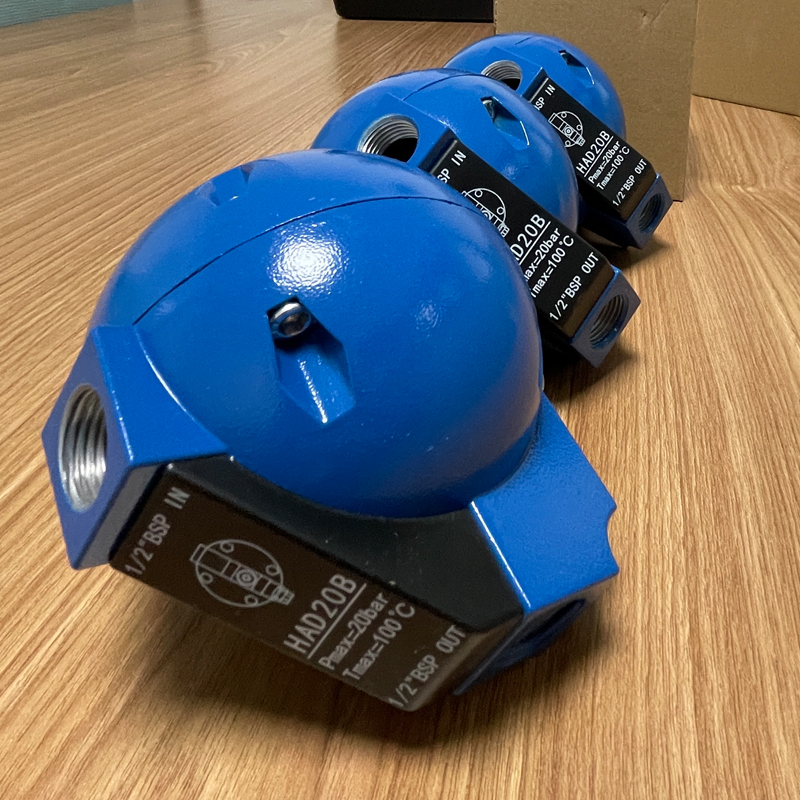

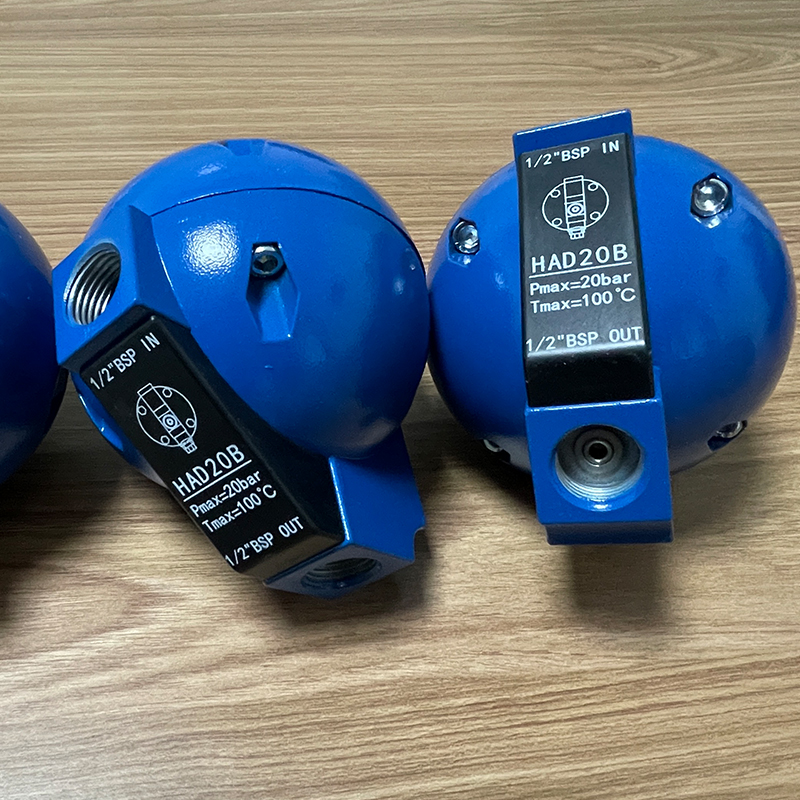

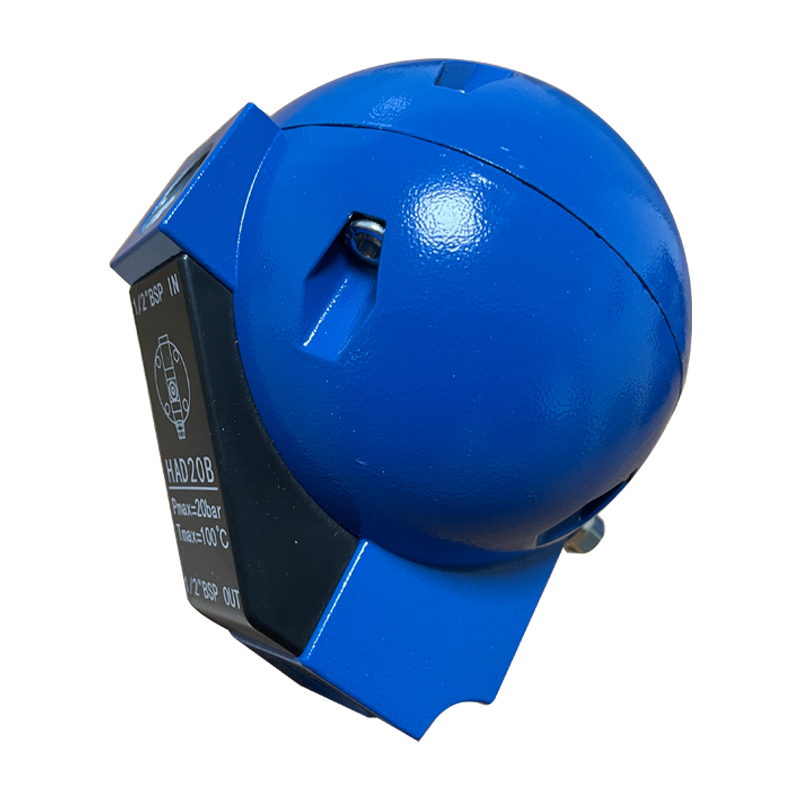

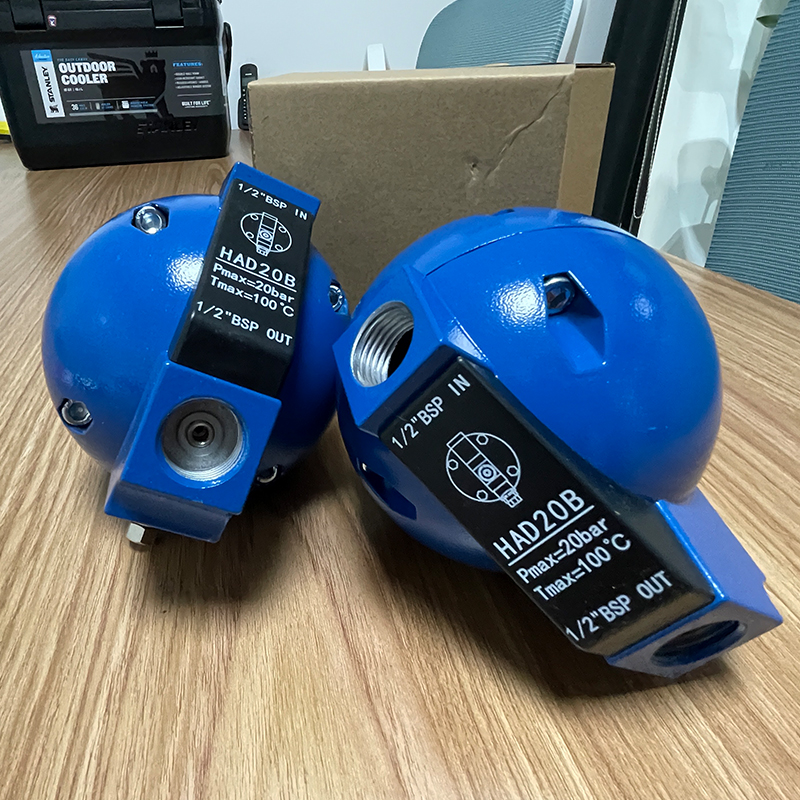

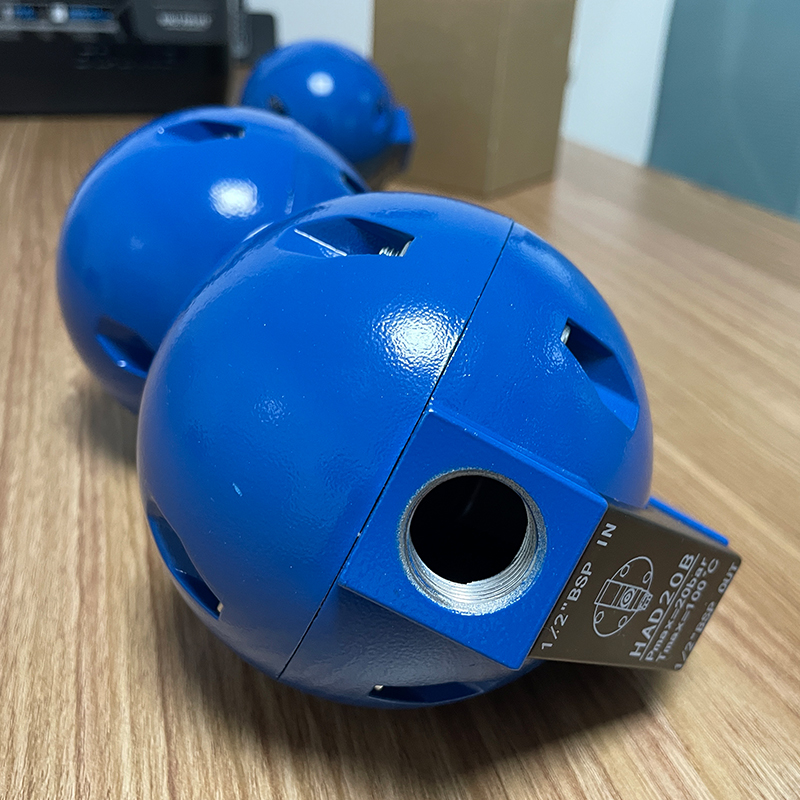

Model | HAD20B | |||
Inlet | 1/2 BSP | |||
Outlet | 1/2 BSP | |||
Max Pressure | 20BAR | |||
Max Temperature | 100ºC | |||
1. What is an automatic drain valve and how does it work?
An automatic drain valve is a device that removes condensed water (condensate) from compressed air systems without manual intervention. It works primarily in two ways:
Timer-Based: Opens at preset, fixed intervals (e.g., every 30 minutes) for a set duration.
Demand-Based (Smart): Uses a sensor (e.g., float or electronic probe) to detect water levels and only opens when a sufficient amount of condensate has accumulated.
2. Why should I choose an automatic drain valve over a manual valve?
The key advantages are:
Energy Savings: Prevents the loss of expensive compressed air, which occurs with leaking or manually opened valves.
Improved Reliability: Eliminates human error and ensures water is removed promptly, protecting downstream equipment from corrosion and damage.
Full Automation: Operates without any need for manual draining, saving labor and ensuring consistent performance.
3. What are the main types of automatic drain valves?
Timer-Controlled (Electromechanical): Opens on a fixed cycle. Simpler and more cost-effective, but may waste air if it opens when no water is present.
Demand-Controlled (Float-Operated): Uses a mechanical float mechanism to open only when water reaches a certain level. Very reliable and efficient.
Zero-Loss (Smart Electronic): Uses an electronic sensor to open only when needed. Most efficient option as it minimizes compressed air loss.
4. Is it suitable for my environment? Check the IP Rating.
The IP (Ingress Protection) Rating indicates its resistance to dust and moisture.
IP65: Protected against dust and water jets. Suitable for washdown areas or humid/dusty environments.
A lower rating (e.g., IP40) is only for protected electrical cabinets.
5. What warranty and support does the manufacturer offer?
Choose a reputable brand that offers a clear warranty (e.g., 1-2 years) and has accessible technical support. This ensures long-term reliability and help if troubleshooting is needed.
