| Quantity: | |
|---|---|

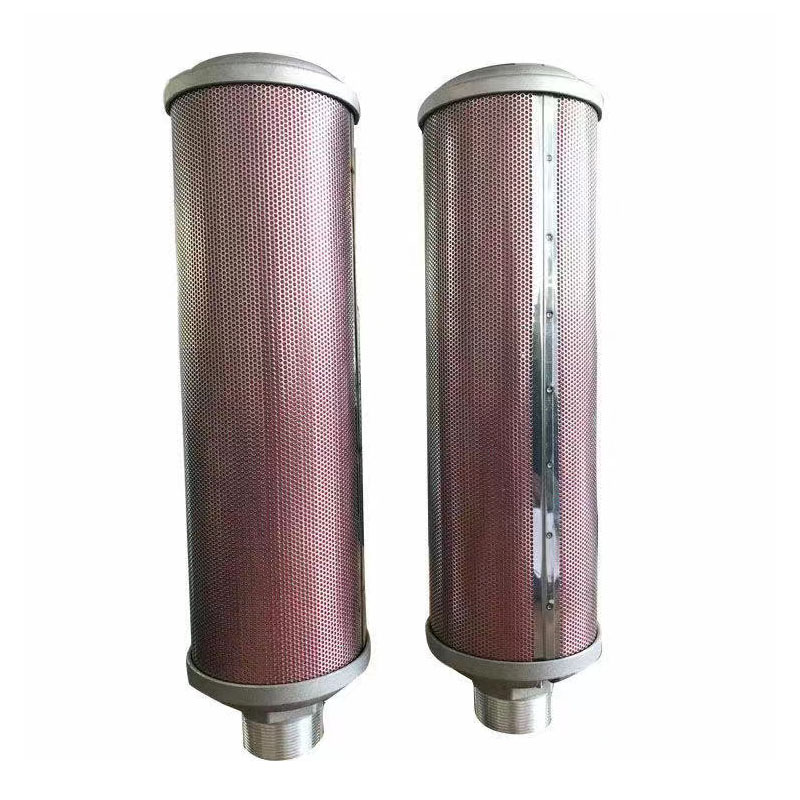

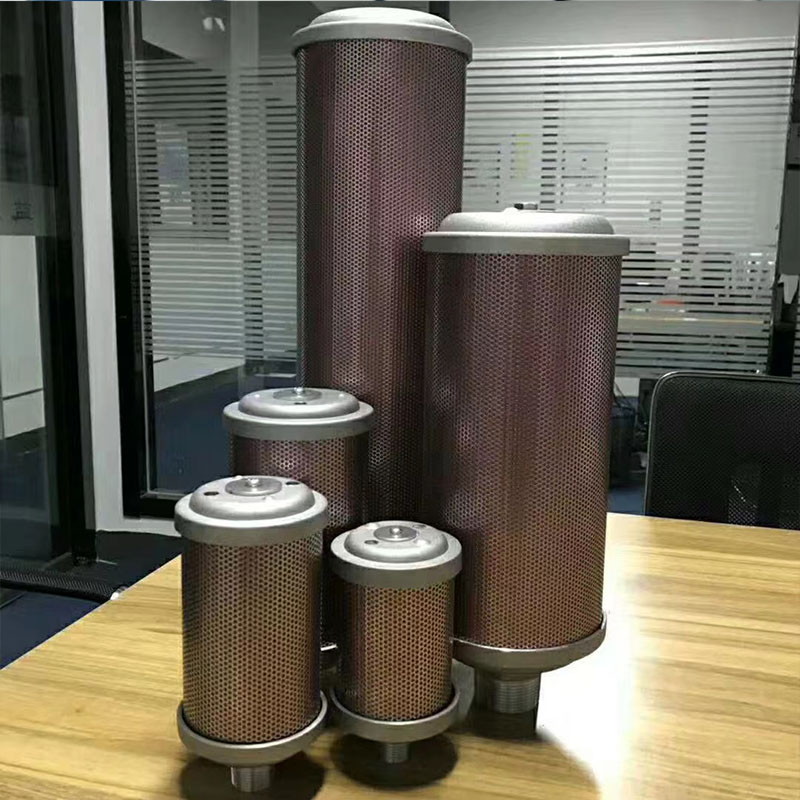

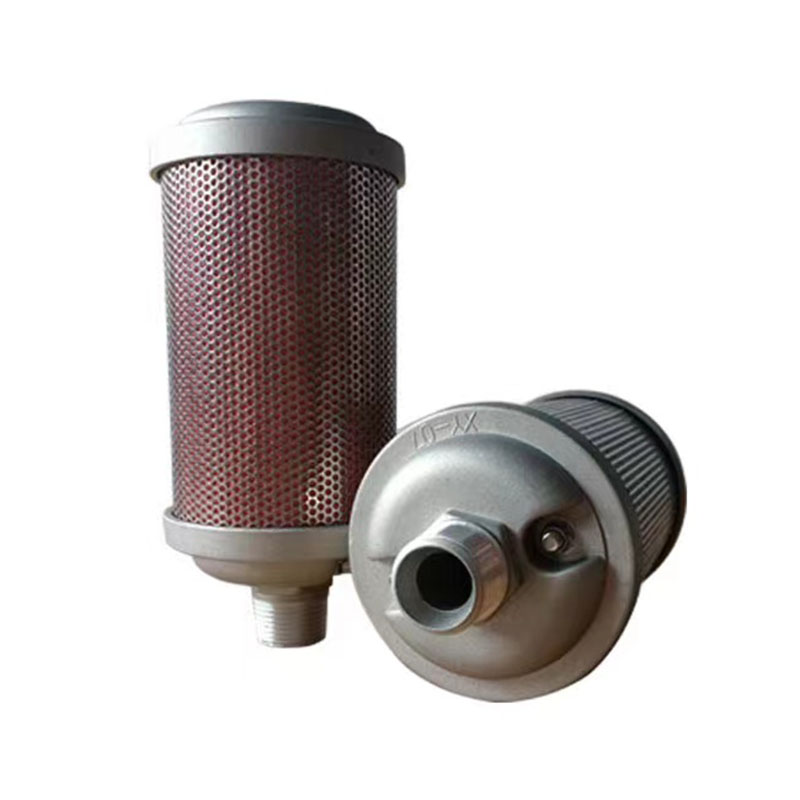

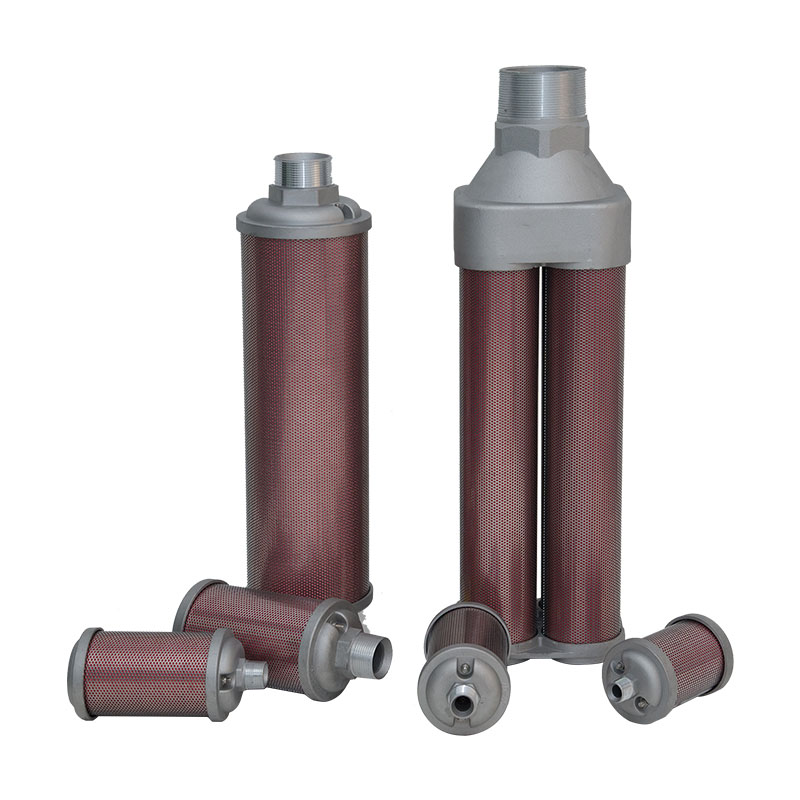

Applicationexhaust muffler for adsorption dryer

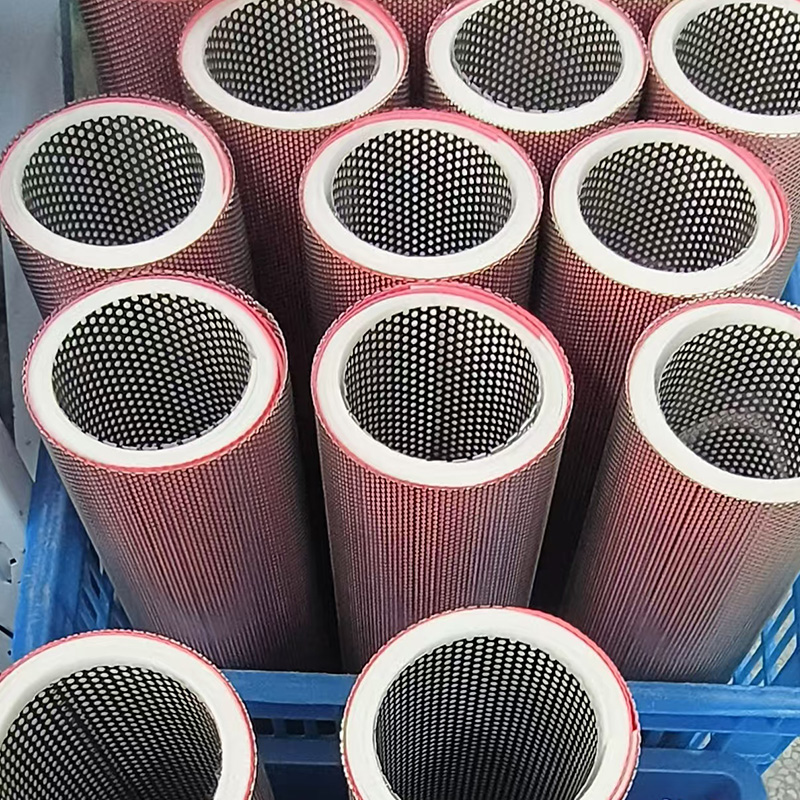

Material:sound-absorbing ultrafine glass wool with high tempetresistance
Noise reduction:30dB above
Technical Parameters
| Model No. | Connection Size(Z) | Overall Dimension(mm) | ||
| H | h | c | ||
| XY-02 | 1/4" | 112 | 92 | Φ46.5 |
| XY-05 | 1/2" | 150 | 125 | Φ80 |
| XY-O7 | 3/4 " | 181 | 156 | Φ87 |
| XY-10 | 1 " | 219 | 183 | Φ99 |
| XY-12 | 1-1/4" | 219 | 183 | Φ>99 |
| XY-15 | 1-1/2 " | 340 | 299 | Φ133 |
| XY-20 | 2" | 476 | 432 | Φ133 |
| XY-30 | 3" | 593 | 472 | 173x173 |
1. Raw Material is HPB 59-1, conforms to country standard.
2. High precision automatic lathe to make the claws not hurt tube surface.
3. 5% tested by water at 10 bar, 100% tested by air and appearance test.
4. Easy to push in and put out on the basis of working pressure assured.
1. Application Field: Pneumatic, Oil pressure and Hydraulic systems.
2. Function: to reduce noise and to remove dust and water.
3. Pressure Range: 0-10 bar, Max.Pressure: 12 bar.
4. Temperature Range: -10~70 °C.
5. Noise Elimination Effect: 20-25 db.
6. Filtration Rating: 5-100μm, regular rating is 40μm.
7. NPT, G & BSPT thread are available; regular thread is G thread.
8. Material: Brass, SS304, SS316, PE.
