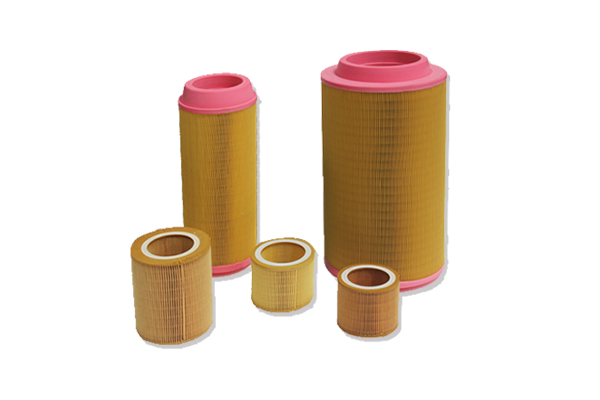

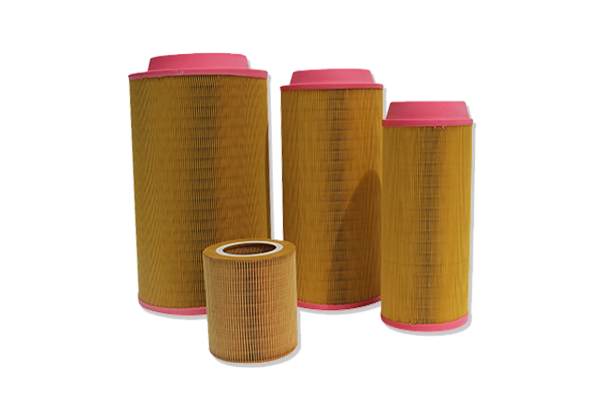

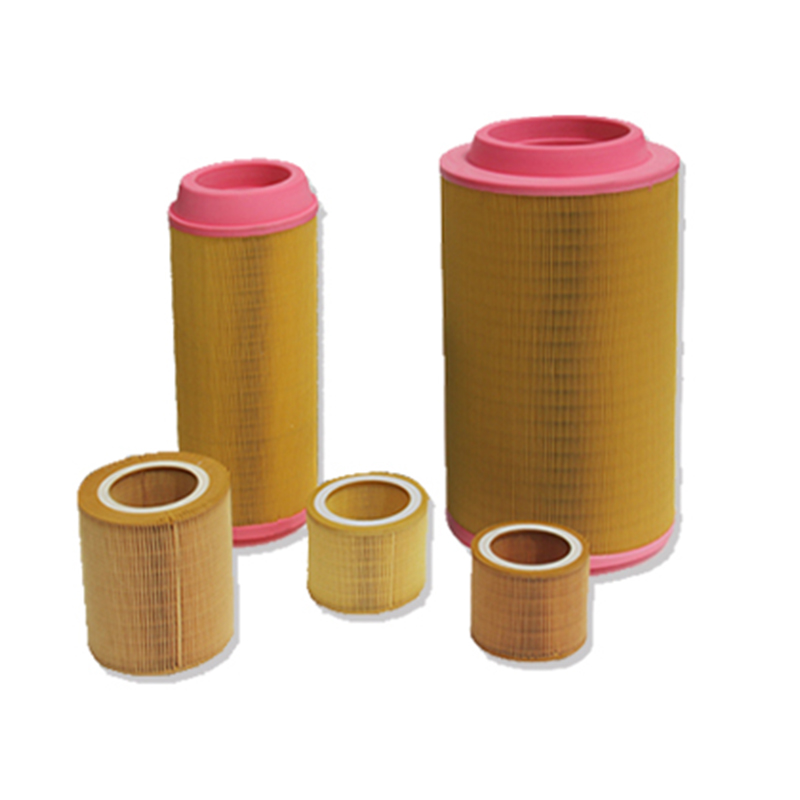

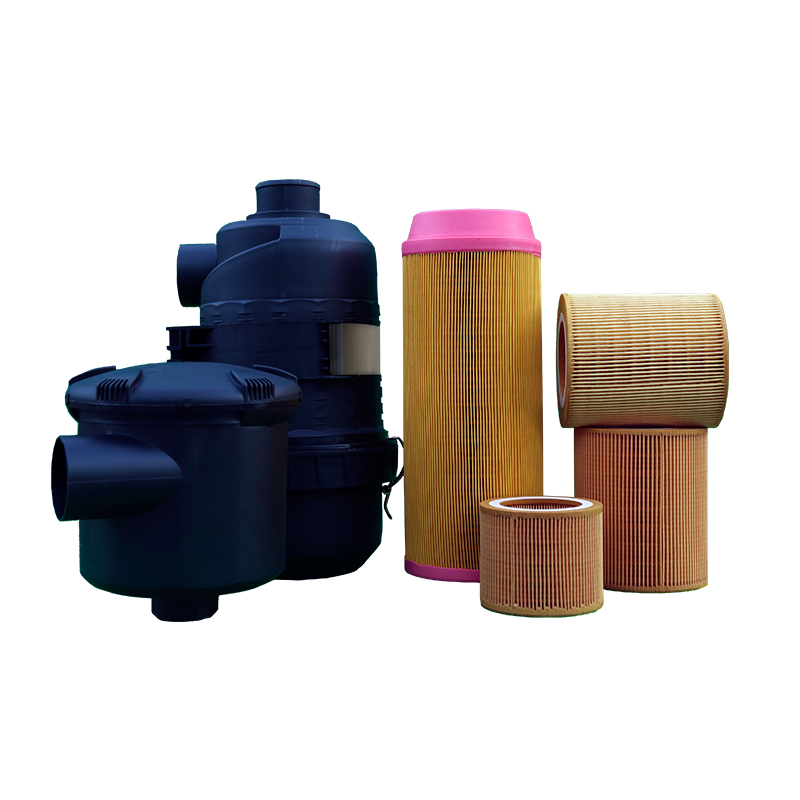

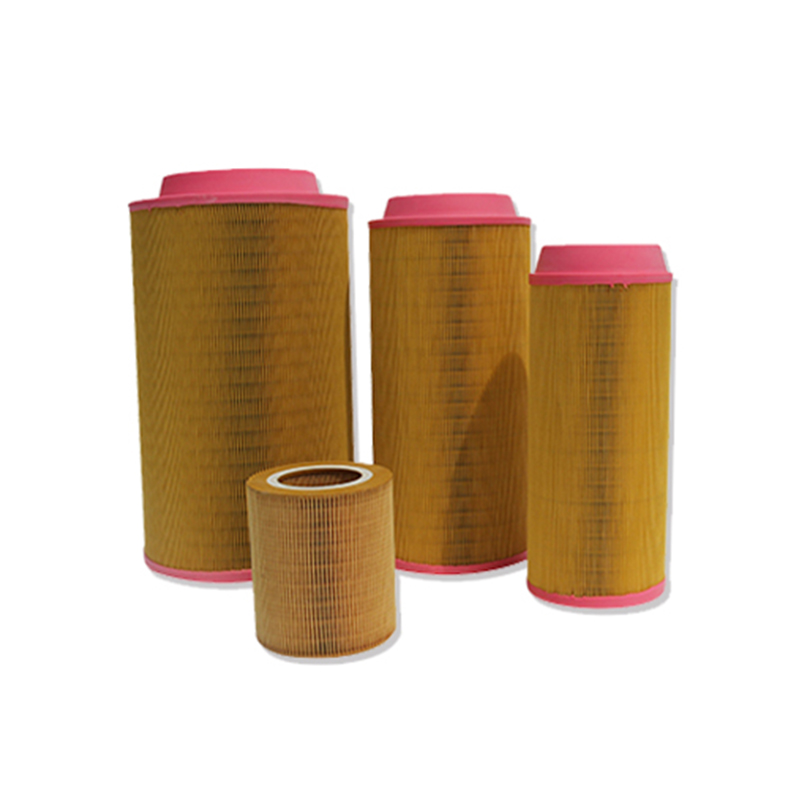

An air filter cartridge is a replaceable, porous component designed to remove solid and liquid contaminants (such as dust, pollen, moisture, oil, and microbes) from an air or gas stream. It is the core element within a filter housing, responsible for the actual filtration process.
Filtration Media: Made from a variety of materials, including:
Pleated Paper or Cellulose: For general-purpose particulate filtration. The pleats maximize the surface area within a compact space.
Synthetic Media (e.g., Polyester, Glass Fiber): Offer higher efficiency, better moisture resistance, and longer service life than paper.
Activated Carbon: Impregnated or layered to adsorb gases, odors, and oil vapors.
Sintered Materials (e.g., Plastic, Metal): Provide a rigid, reusable structure for coarse filtration.
Pore Size / Filtration Rating: Defined by its ability to capture particles of a specific size, indicated by metrics like:
Nominal Rating: The percentage of particles of a given size retained by the filter (e.g., retains 95% of particles 10 microns and larger).
Absolute Rating: The diameter of the largest particle that can pass through the filter (e.g., 1 micron).
Design & Construction:
Pleated Design: Increases surface area, reducing pressure drop and extending service life.
End Caps: Typically made of metal or plastic, sealed to the media to prevent air bypass.
Gaskets/Seals: Ensure a tight fit within the filter housing, preventing unfiltered air from leaking around the cartridge.
Support Core: An internal cage that prevents the pleated media from collapsing under pressure.
Protection of Equipment: By removing harmful contaminants, filter cartridges protect sensitive equipment like compressors, pneumatic tools, engines, and instrumentation from wear, corrosion, and damage.
Improved Product Quality: In manufacturing processes (e.g., food, pharmaceuticals, painting), clean air is critical to prevent product contamination and ensure consistent, high-quality results.
Enhanced Efficiency: Clean air systems operate more efficiently. For example, clean intake air helps engines and compressors run cooler and use less energy.
Cost-Effectiveness: Being a replaceable element, the cartridge allows for easy and economical maintenance. Only the spent cartridge needs replacement, not the entire filter housing.
Health and Safety: In industrial environments, they protect workers from inhaling hazardous dusts, fumes, and aerosols, ensuring compliance with occupational health and safety regulations.
Environmental Compliance: Helps industries meet emission standards by capturing pollutants before they are released into the atmosphere.
Compressed Air Systems: This is a primary application. They are used in multiple stages (intake, coalescing, dry particulate, and activated carbon filters) to produce clean, dry, and oil-free compressed air for pneumatic tools, controls, and processes.
Manufacturing & Automation: Protecting robotic equipment, CNC machines, and assembly lines from particulate contamination.
Pharmaceutical & Biotechnology: Providing sterile, particle-free air for cleanrooms, fermentation processes, and product packaging to meet Good Manufacturing Practice (GMP) standards.
Food & Beverage: Ensuring air that comes into contact with products is free of microorganisms and odors, critical for product safety and shelf life.
Paint & Coating (Spray Booths): Removing overspray and particulates from the air to achieve a flawless finish and protect booth equipment.
Power Generation: Filtering intake air for gas turbines and protecting critical control instrumentation.
Mining & Construction: Filtering intake air for heavy machinery engines operating in extremely dusty environments.
