| Quantity: | |
|---|---|
The Hanbell AB-1030R is a flagship, large-capacity oil-injected screw air compressor designed for ultra-heavy-duty, continuous operation. It serves as a central compressed air source for the most demanding industrial applications where immense air flow, supreme reliability, and high efficiency are non-negotiable.
Technical Parameters
| Model | Power (kW) | Rotating speed (rpm) | Air Delivery (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | S.F. | Dimension(mm) | Weight(kg) |
| AB-1030R | 90 | 2950 | 14.8 | 95 | 6.4 | 1.08 | 772*402*350 | 260 |

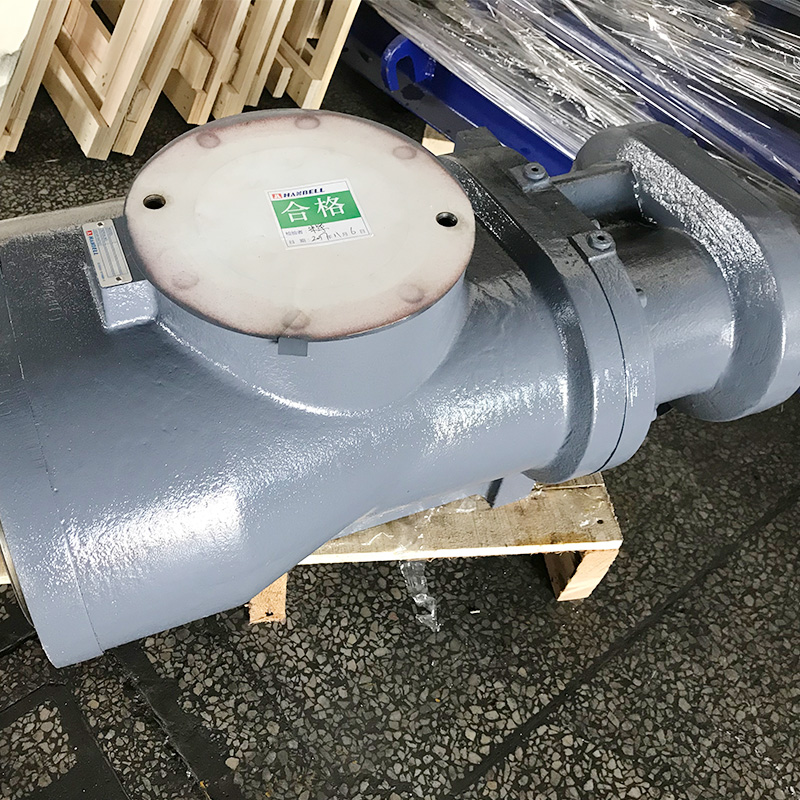

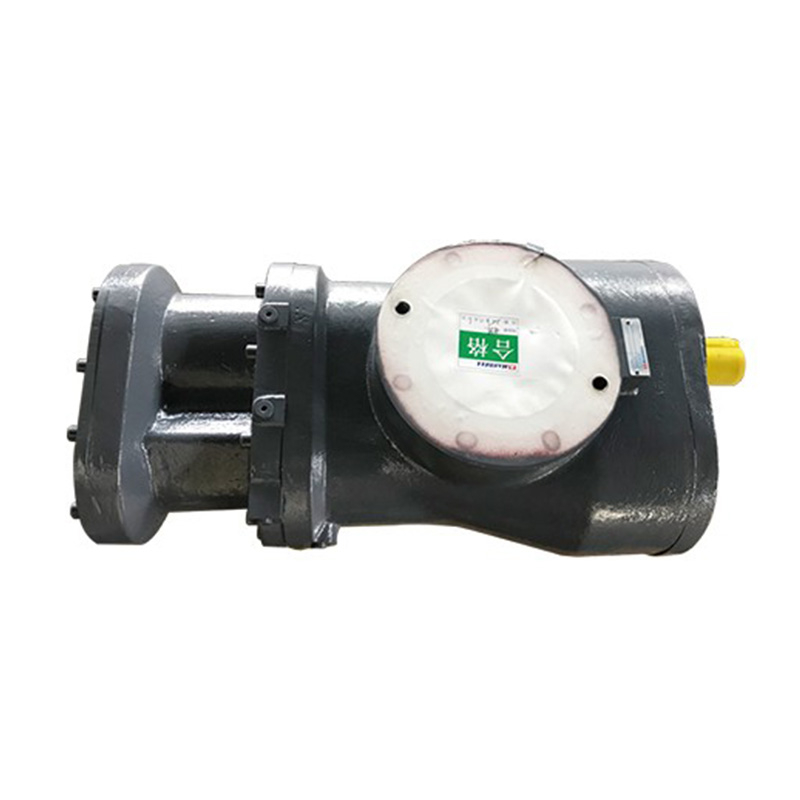

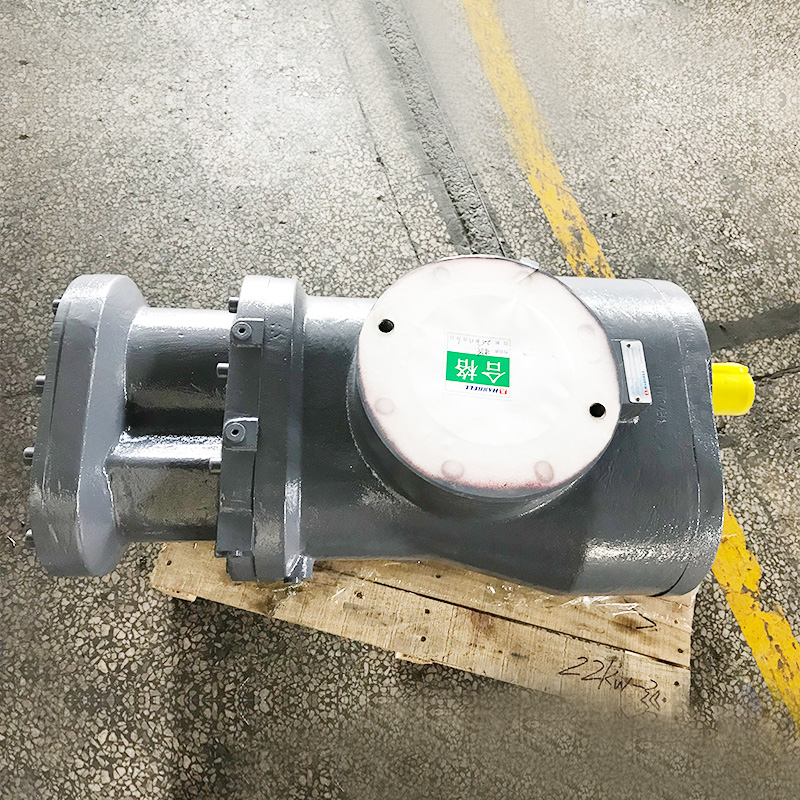

Hanbell Proprietary Air End
The heart of the compressor is Hanbell's renowned asymmetric profile screw rotor set. These large-diameter, precision-machined rotors are designed for maximum air output with minimal energy loss, ensuring superior volumetric efficiency, exceptional longevity, and outstanding performance under full-load conditions.
Premium Energy Efficiency
Energy savings are a critical design focus. The AB-1030R incorporates features like an optimized compression chamber, low-friction bearings, and is driven by a high-efficiency, low-RPM motor (often IE4 Super Premium or IE5 ultra-premium efficiency class). This minimizes kW consumption per cubic meter of air produced, leading to significant operational cost savings.
Advanced Intelligent Control System
It is managed by a sophisticated microprocessor-based control system, likely a large touch-screen interface.
This system provides comprehensive real-time monitoring, data logging, remote connectivity, and advanced diagnostics. It enables predictive maintenance, system optimization, and seamless integration into larger plant air management networks.
Heavy-Duty Construction and Cooling
Built for 24/7 operation in harsh environments, it features a massive, reinforced base frame and industrial-grade components.
A critical feature is its high-capacity cooling system, often a dedicated independent fan and oversized radiator, designed to maintain precise operating temperatures under extreme ambient conditions, ensuring consistent performance and protecting components from thermal stress.
Designed for Centralized Systems
This model is not a standalone unit but is typically the core component of a centralized compressed air station. It is designed to be paired with external refrigerated or desiccant air dryers and large-capacity air receivers to create a complete, clean, and stable air supply for an entire facility.
High Efficiency & Performance: Excels under full and partial load conditions, offering superior Energy Efficiency Ratios (EER) and Coefficients of Performance (COP) for large-scale operations.
Exceptional Durability & Longevity: Screw compressors are renowned for their robust construction, minimal vibration, and long operational life, making them ideal for 24/7 operation.
High Pressure Ratio Capability: This makes them highly effective in heating mode, capable of producing higher hot water temperatures even in moderately low ambient conditions.
Very Large-Scale Manufacturing Plants: Serving as the primary air source for automotive manufacturing facilities, large steel mills, shipyards, and heavy equipment factories, powering vast arrays of automation, robotics, and pneumatic tools.
Petrochemical & Oil Refineries: Providing massive volumes of instrument air for countless process control valves and plant air for pneumatic conveying, catalyst regeneration, and other core processes in sprawling refinery complexes.
Power Generation Stations: Essential for soot blowing in boiler systems, operating fluidized bed systems, and powering control instruments in coal, gas, biomass, and waste-to-energy plants.
Mining & Mineral Processing: Used in massive mining operations to power deep-hole drilling rigs, pneumatic material handling systems for ore and slurry, and mineral processing machinery.
Large Aerospace & Defense Manufacturing: Supplying the clean, high-volume air required for composite material production, painting large aircraft components, and operating extensive testing facilities.
Major Chemical & Pharmaceutical Facilities: Providing the reliable air supply needed for large-scale fermentation, processing, and packaging lines where air quality and continuity are vital.
