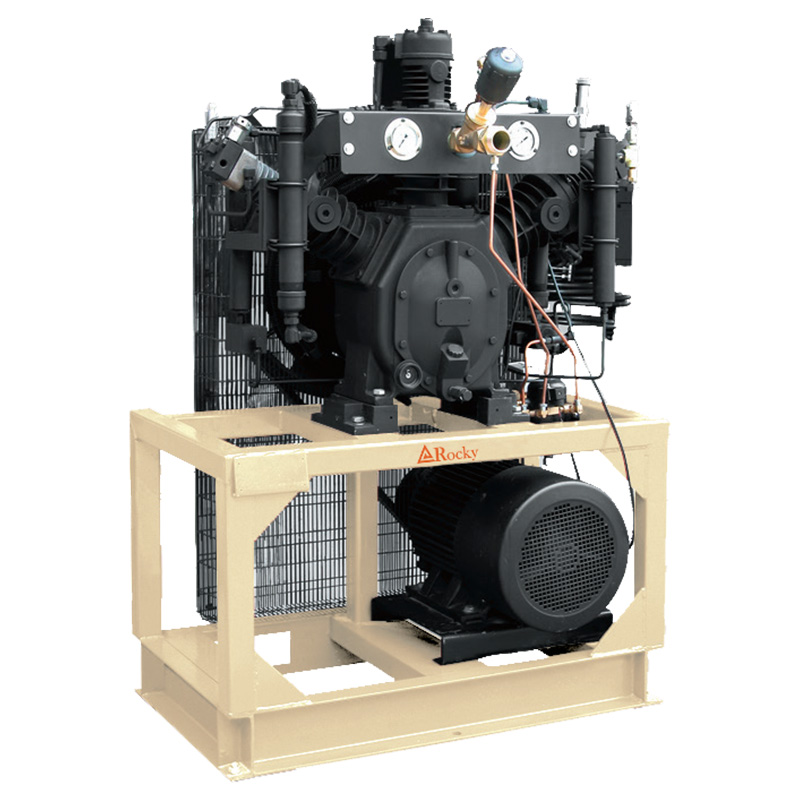

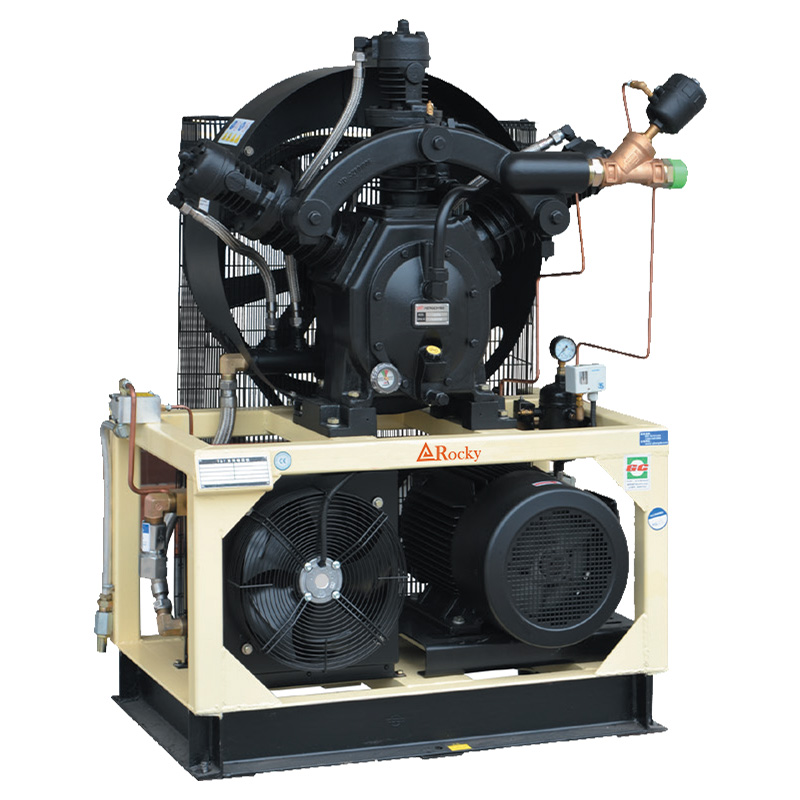

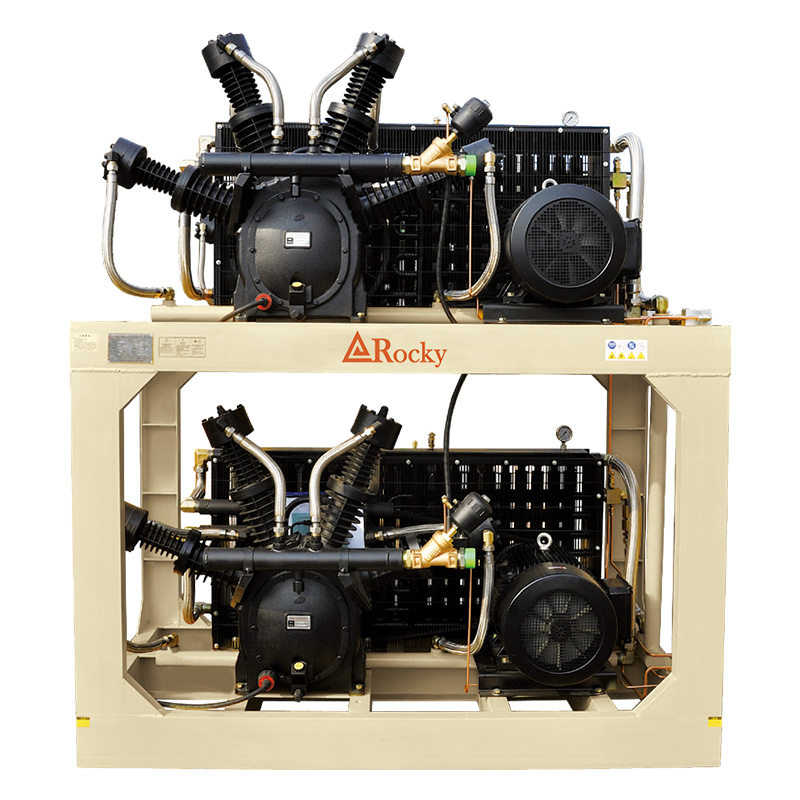

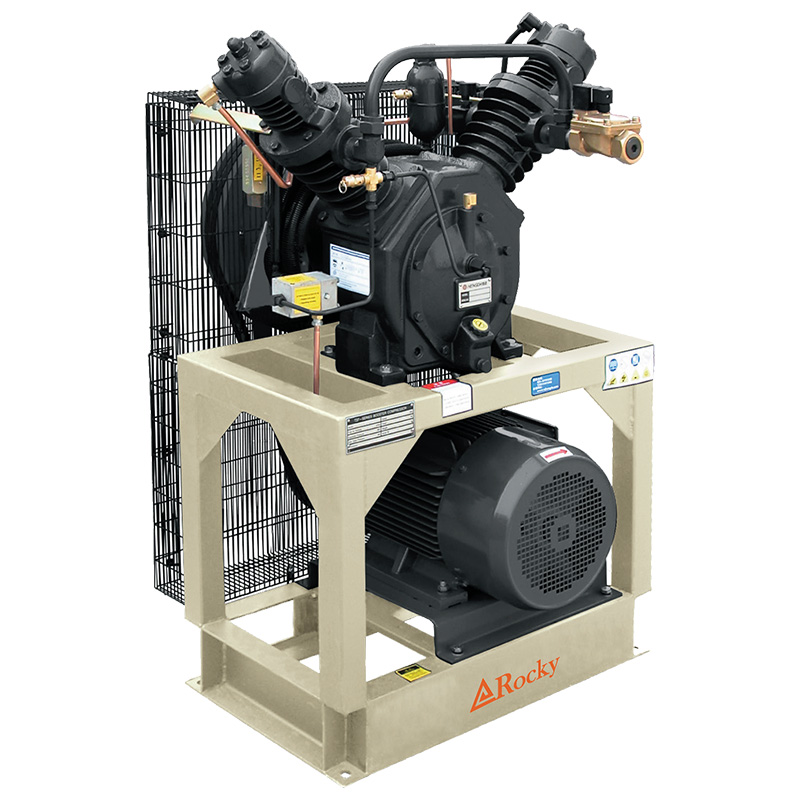

Oil-free clean pneumatic equipment specifically designed to boost 4-10 Bar ordinary compressed air to 40 Bar (580 psi). It uses oil-free lubrication technology throughout the process and outputs pure compressed air that meets ISO 8573-1 Class 0 standards.
Core Advantages
• Absolutely Clean: 100% oil-free output, eliminating the risk of oil contamination
• Precision Control: ±1% pressure accuracy, digital pressure regulation
• Highly Efficient and Energy-Saving: 25% energy savings compared to traditional models, lowering operating costs
• Ultra-Quiet: <65dB low-noise operation, suitable for quiet environments
• Maintenance-Free: Self-lubricating design, 8,000 hours of maintenance-free operation
Product Parameters
| Model | Intake pressure (bar) | Discharge Pressure (bar) | Free Air delivery （m³/min） | Motor power （kW） | Speed (rpm) | Dimensions (mm) | Weight（kg） |
| RKBW-5/10-40 | 10.0 | 40.0 | 5 | 22 | 680 | 2300*1580*1920 | 1600 |
| RKBW-10/10-40 | 10.0 | 40.0 | 10 | 45 | 690 | 2750*1580*1600 | 2000 |
| RKBW-12/8-40 | 10.0 | 40.0 | 12 | 45 | 690 | 2750*1580*1600 | 2000 |
| RKBW-15/10-40 | 10.0 | 40.0 | 15 | 55 | 690 | 2750*1580*1950 | 2250 |
Applications
• Medical: Dental equipment, respiratory therapy equipment air supply
• Food: Aseptic filling, packaging machinery pneumatic control
• Electronics: Semiconductor manufacturing, precision assembly equipment
• Scientific research: Environmental simulation chambers, laboratory instrument drives
• Military: Aerospace component testing, shipboard equipment air supply
FAQs
Q: What air source is required?
A: 4-10 bar clean compressed air is required (pre-filter recommended).
Q: What is the maximum flow rate?
A: Standard models offer 0.5-5 m³/h, and support parallel expansion with multiple units.
Q: Is it explosion-proof?
A: Pneumatic drive is inherently explosion-proof and suitable for hazardous areas.
Q: How is humidity controlled?
A: A refrigerated dryer is recommended (dew point up to 3°C).
Q: What is the service life?
A: Core components are designed to have a lifespan of >30,000 hours.
