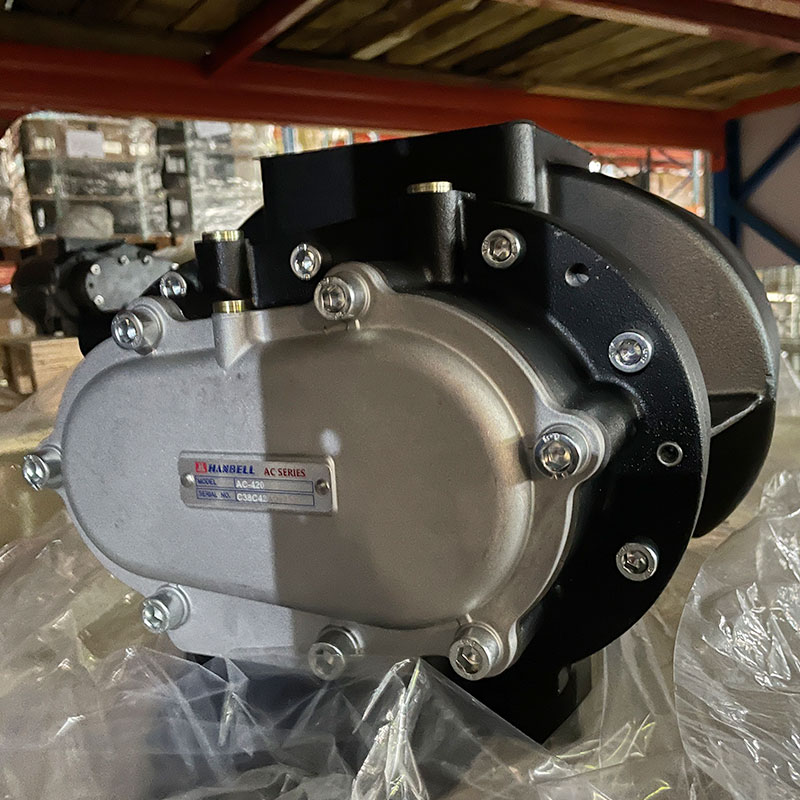

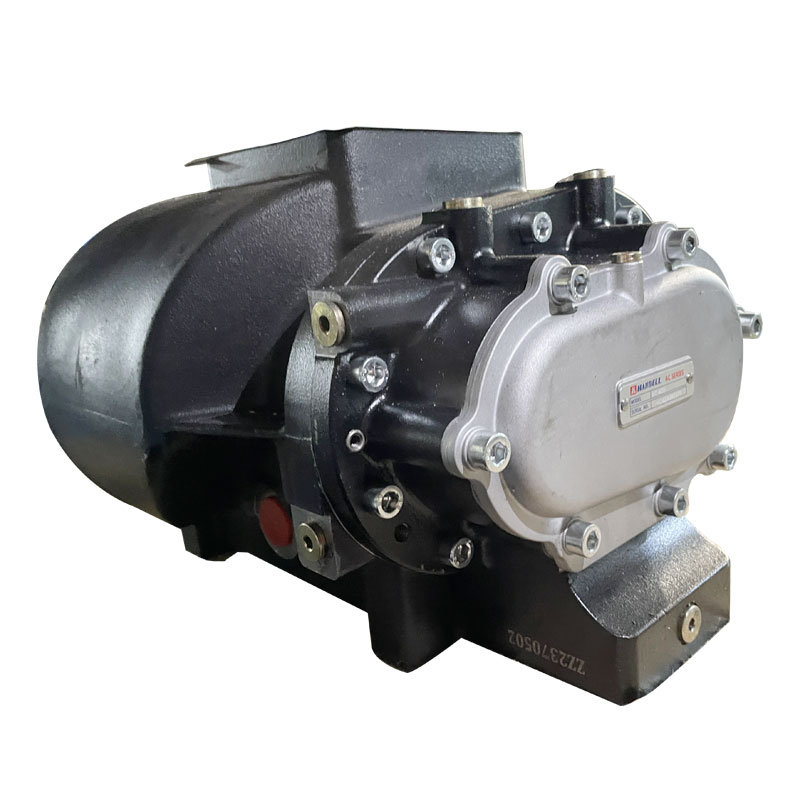

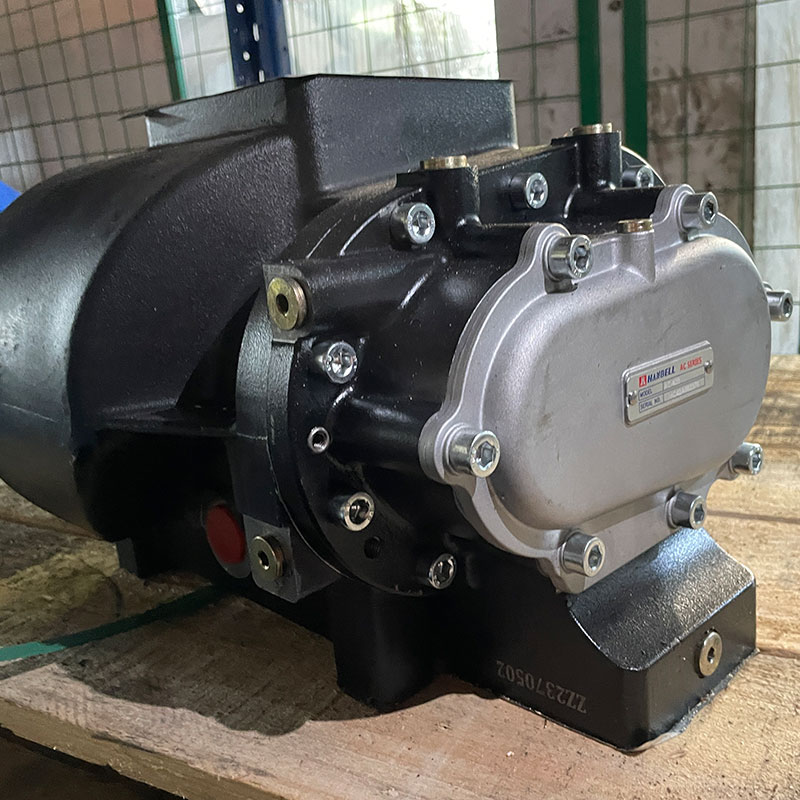

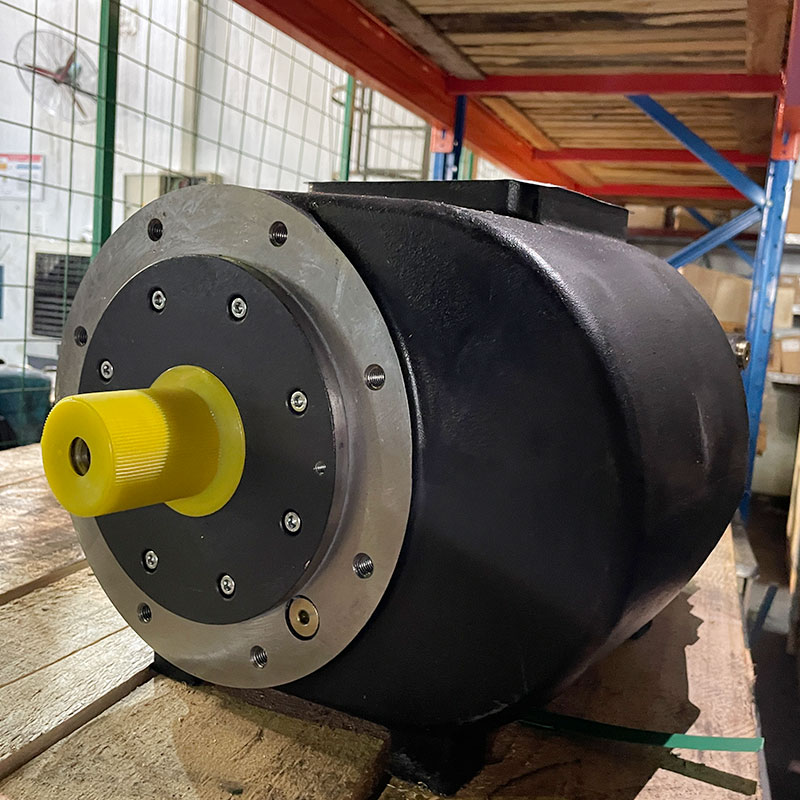

The Hanbell AC-420 is a high-performance, industrial-grade screw air compressor designed for reliability, efficiency, and heavy-duty operation. It represents a robust solution in the large-capacity compressor market.
Technical Parameters
| Model | Power (kW) | Rotating speed (rpm) | Air Delivety (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | Dimension(mm) | Weight(kg) |
| AC-420 | 37 | 3000 | 6.28 | 38.9 | 6.19 | 453*353*280 | 100 |
High Efficiency Air End: At its core is a custom-designed, large rotor profile screw air end. This proprietary technology ensures optimal air delivery with minimal energy consumption, providing superior volumetric efficiency.
Advanced Cooling System: Features a large surface area cooler and an optimized airflow design, ensuring stable operating temperatures even in demanding ambient conditions, which enhances component longevity.
Intelligent Control System: Equipped with a sophisticated microprocessor controller (typically a touch-screen PLC). It allows for precise monitoring of operational parameters (pressure, temperature, power consumption), automatic load/unload control, and provides diagnostic alerts and maintenance reminders.
Premium Motor & Drive: Utilizes a high-efficiency, Class F insulation, low RPM electric motor directly coupled to the air end. This ensures perfect alignment, reduces transmission losses, and enhances overall reliability.
Robust Construction: Built with a heavy-gauge steel frame and housed in a durable, acoustically treated canopy. This design reduces noise levels and provides exceptional protection for internal components in harsh industrial environments.
Energy Saving Design: Incorporates features like intelligent fan control (which adjusts cooling fan speed based on temperature) and minimal pressure drop across the system, contributing significantly to reduced energy costs.
Exceptional Reliability & Durability: Hanbell is renowned for the ruggedness of its air ends. The AC-420 is built for continuous operation (24/7) with minimal downtime, making it a workhorse for critical applications.
Superior Energy Efficiency: The combination of the efficient air end, low-RPM motor, and intelligent controls translates directly into lower operating costs. This offers a rapid return on investment (ROI), especially for operations with high air demand.
Low Lifecycle Cost: While the initial investment might be competitive, its true value lies in its low maintenance requirements, high energy efficiency, and outstanding durability, leading to a lower total cost of ownership over its lifespan.
Quiet Operation: The acoustic enclosure and low-RPM design make it significantly quieter than many competitors in its class, contributing to a better and safer working environment.
User-Friendly Operation & Maintenance: The intuitive control panel simplifies operation, while the well-designed layout provides easy access to filters, oil separators, and other components for routine servicing.
Heavy Manufacturing: Such as automotive plants, steel fabrication, and shipbuilding.
Mining & Quarrying: Powering pneumatic tools, drilling rigs, and material handling systems.
Chemical & Petrochemical Industries: For process air, instrument air, and plant air.
Large-Scale Workshops & Garages: Supporting multiple high-demand tools like sandblasters, paint sprayers, and impact wrenches simultaneously.
Construction & Infrastructure Projects: Ideal for fixed installation on large project sites requiring a dependable air source.
Food & Beverage Industry: Where reliable compressed air is critical for packaging, automation, and processes (using appropriate air treatment).
