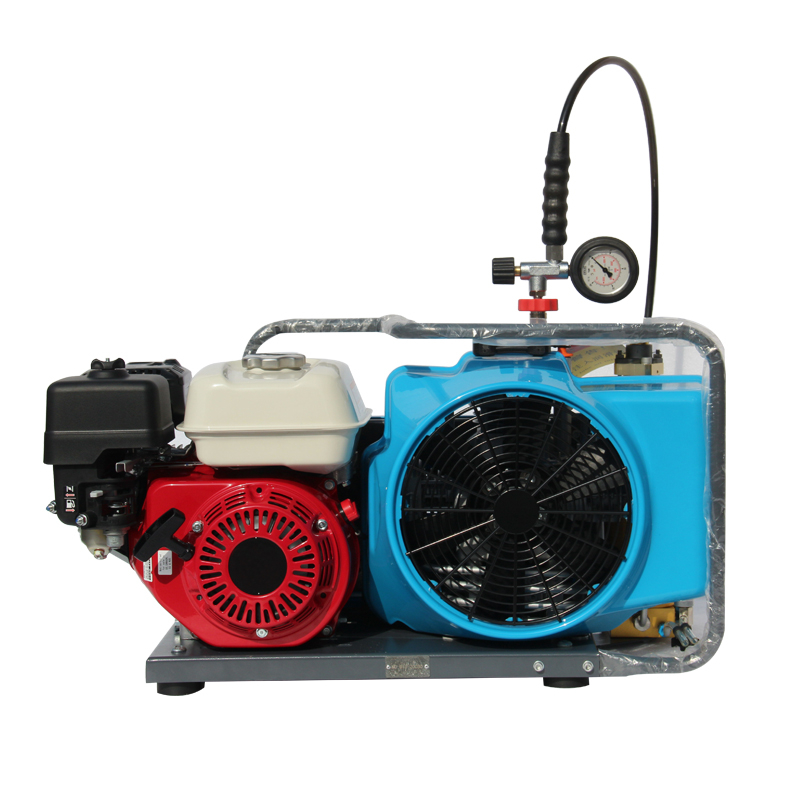

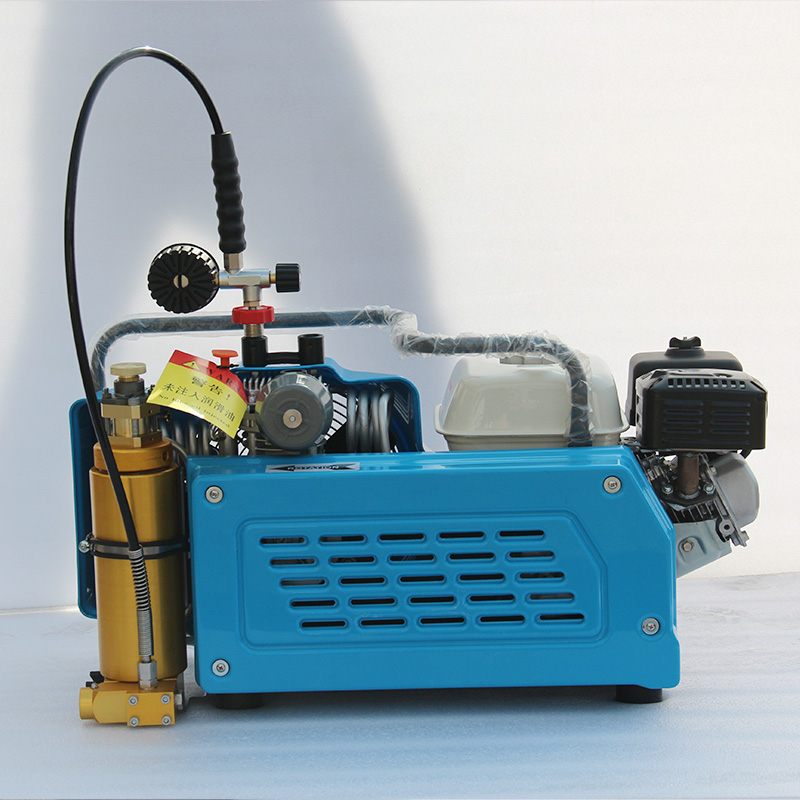

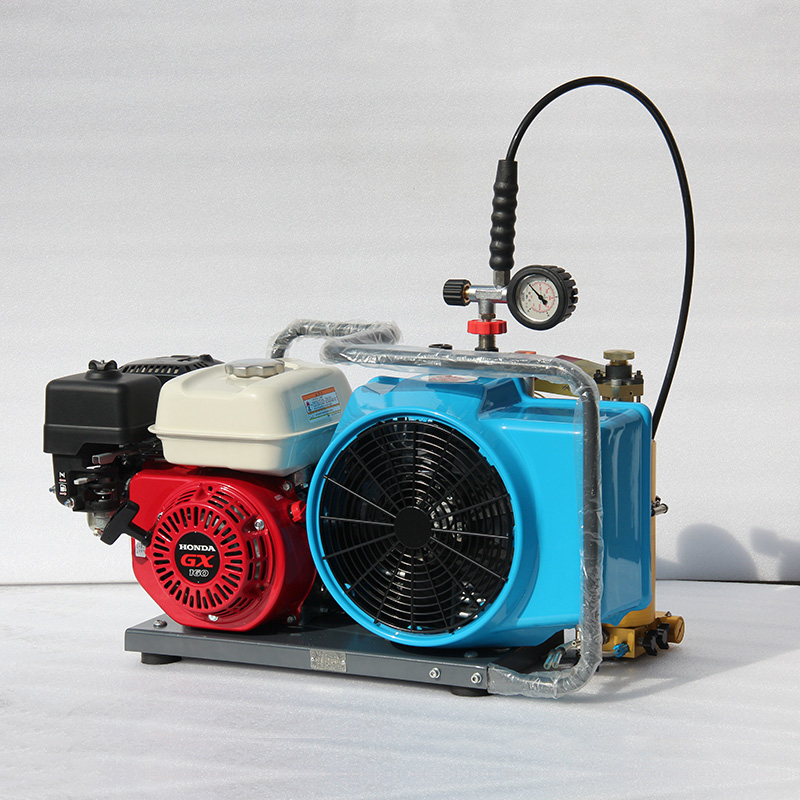

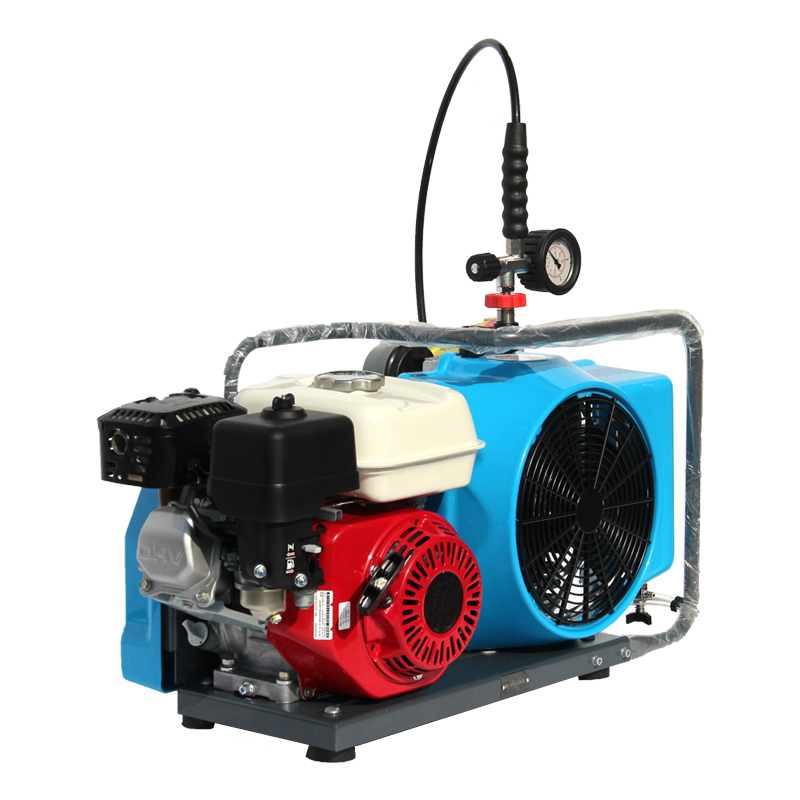

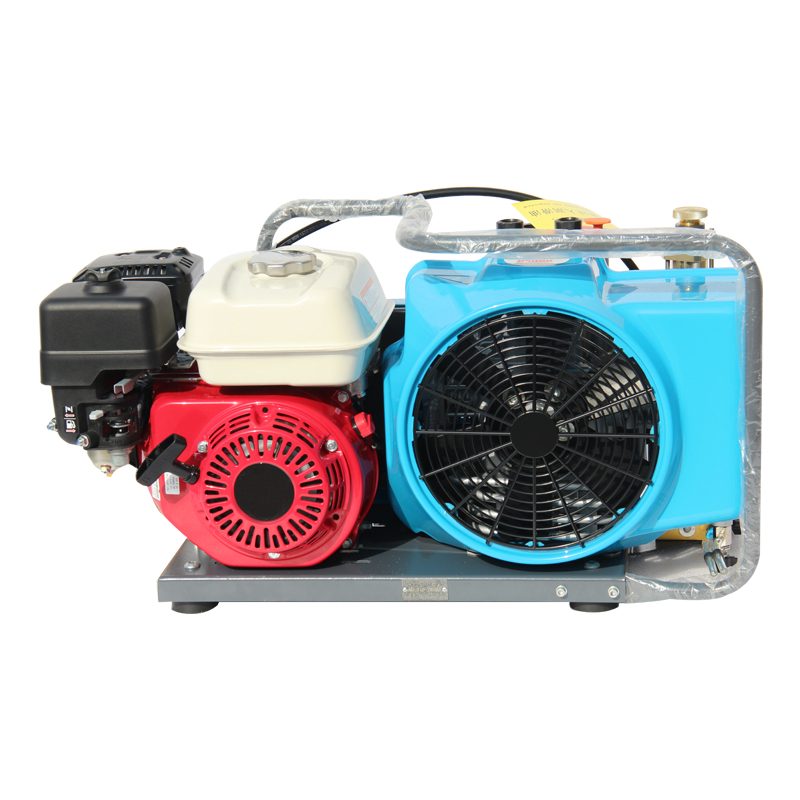

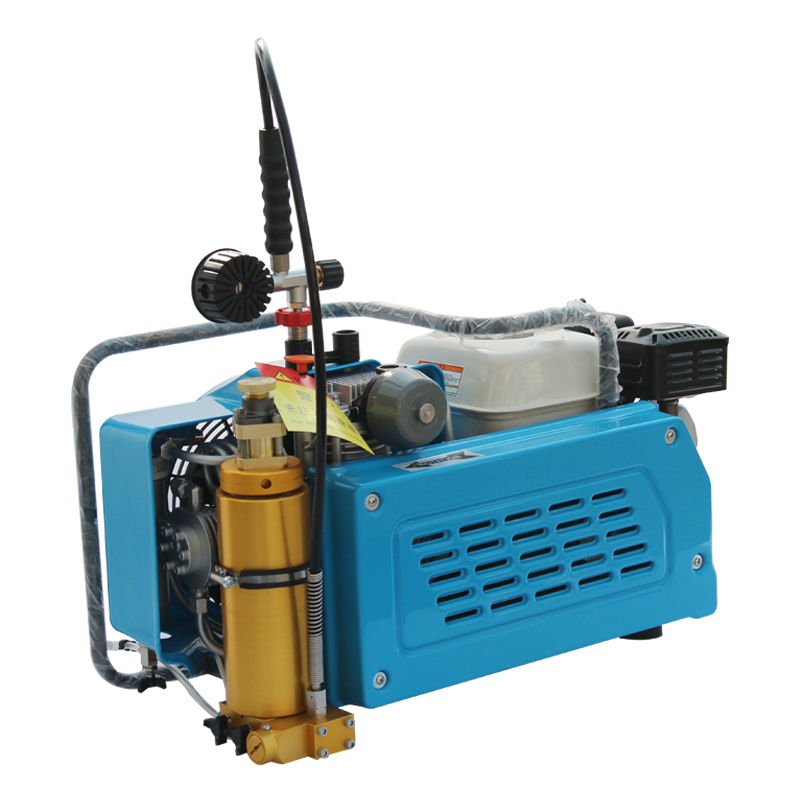

Introduction to High-Pressure Breathing Compressors
High-pressure breathing air compressors are widely used in firefighting,marine and diving breathing fields, and are specially used to fill breathing cylinders. Dual pressure configuration, quick bottle filling, provide safe and pure breathing air source, in line with European standard EN12021. With compact structure, easy to move, safe and efficient, it is a reliable high-pressure breathing air filling device.
Product Parameters
| Model | Flow (L/min/cfm) | Pressure (Bar) | Power (Hp) | (V/HZ/PH) | Speed （Rpm） | Compression stage | Oil amount (L) | Operating Temp (°C) | Dimension L*W*H(mm) | Weight (Kg) | |||||
| GDR-100P | 100/3.5 | 225/350 | 5.5 | Honda Gasoline Engine | 2300 | 3 | 0.36 | 5~ +45 | 770*420*420 | 44 | |||||
| GDR-150P | 150/5.2 | 225/350 | 6.5 | Honda Gasoline Engine | 2450 | 3 | 0.36 | 5~ +45 | 790*420*420 | 47 | |||||
Features and Advantages
1. Compact: Small and compact, lightweight and easy to move, it can fit in a car trunk.
2. Oil-free design, meets breathing air standards
3. High-voltage stable output, high efficiency and energy saving
4. Corrosion-resistant materials, easy maintenance
5. Modular design, portable and flexible
Application Industries
Diving: Cylinder filling
Firefighting: Breathing apparatus air supply
Medical: Oxygen chamber/hospital oxygen supply
Industrial: Workplace protection
Military: Specialty air supply
FAQs
1. Is maintenance required?
Replace the filter regularly and check for leaks.
2. Is the pressure adjustable?
Most models support pressure adjustment.
3. How long does it take to fill the tank?
Depends on the tank capacity (usually 5-60 minutes).
4. Can I breathe directly from the tank?
The gas must be filtered and purified through multiple stages.
