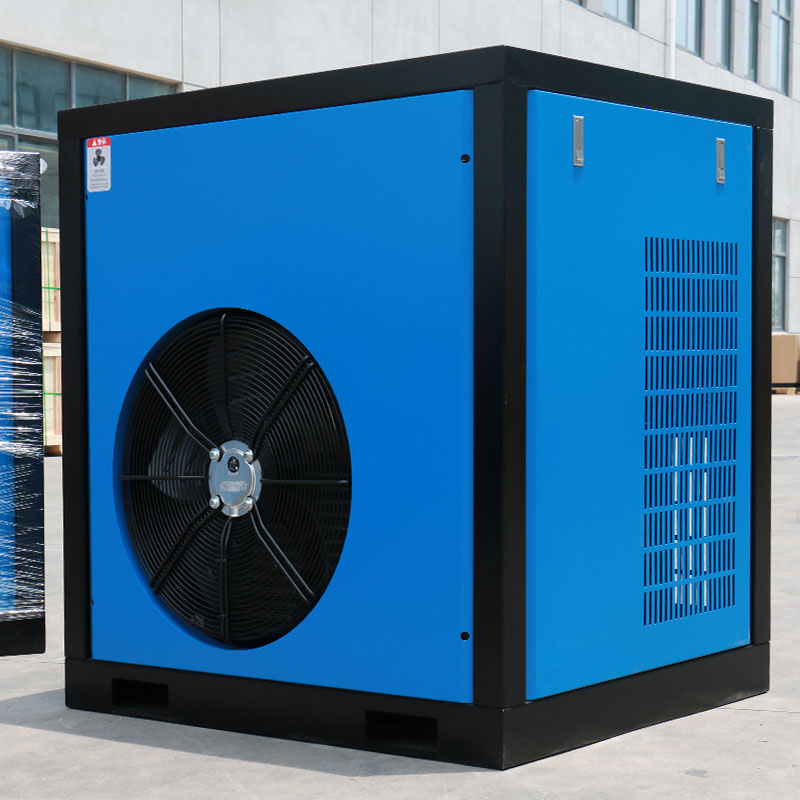

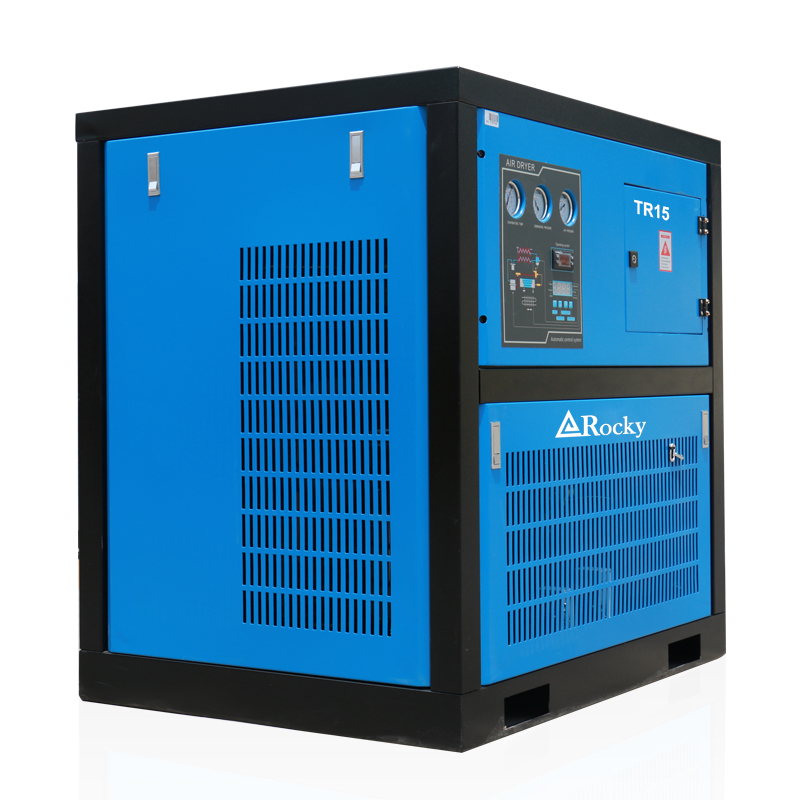

The ROCKY TR20 Refrigerated Air Dryer is an industrial-grade solution designed to deliver clean, dry, and reliable compressed air. By effectively removing moisture, it protects your pneumatic equipment, improves production efficiency, and reduces operational costs.
Key features
High-Efficiency Cooling System
Utilizes a precision-designed heat exchanger and an eco-friendly refrigerant (e.g., R134a) to achieve a stable and consistent Pressure Dew Point (PDP) of +3°C to +10°C.
Ensures compressed air is thoroughly dried to prevent moisture-related issues.
Robust Construction & Corrosion Resistance
Features a heavy-duty air-to-refrigerant heat exchanger made from high-grade materials (e.g., copper or stainless steel) for excellent heat transfer and long service life.
The cabinet is made from powder-coated steel, offering protection against rust and corrosion in harsh industrial environments.
Intelligent Control System
Equipped with a user-friendly microprocessor controller.
Provides real-time monitoring of key parameters like temperature and system status.
Features automatic alerts and safety shutdowns to protect the unit from overloads or abnormal operating conditions.
Energy-Saving Design
Incorporates a high-efficiency compressor and fan motor with automatic cycling control.
This smart regulation minimizes power consumption during low-load conditions, leading to significant energy savings.
Low Maintenance & Easy Serviceability
Designed with a cleanable condenser coil for easy maintenance.
Includes a highly reliable automatic drain valve to eject condensate without manual intervention.
All service points are easily accessible to reduce downtime.
Technical Parameters
| TR series Environmental Protection Refrigerant Air Dryer | ||
| Model | TR20 | |
| Capacity | m3/min | 23 |
| Power supply | 220~660V 3PH 50HZ/60HZ | |
| Input power | kW | 4.9 |
| Air pipe connection | DN65 | |
| Evaporator type | Aluminum alloy plate | |
| Refrigerant model | R407C | |
| Display Anti-freezing protection | Smart PLC,LED dew point display, LED alarm code display, operation status indication Constant pressure expansion valve & compressor | |
| automatic start /stop | ||
| Temperature control | Automatic control of condensing temperature / dew point temperature | |
| High voltage protection | Temperature sensor&lnductive intelligent protection | |
| Low voltage protection | Temperature sensor&lnductive intelligent protection | |
| Weight | Kg | 210 |
| Dimension | L | 1200 |
| W | 900 | |
| H | 1203 | |
Core Advantages
Enhanced Equipment Protection: Prevents rust, corrosion, and water damage in pneumatic tools, valves, and machinery, extending their lifespan.
Improved Product Quality: Eliminates the risk of moisture contamination in manufacturing processes such as painting, sandblasting, or food and beverage production.
Reduced Operational Costs: Prevents costly downtime and repairs caused by water in air lines. The energy-efficient design also lowers your electricity bills.
Reliability in Demanding Conditions: The TR20 is built to perform consistently in challenging environments, ensuring your operations run smoothly.
User-Centric Operation: The intuitive control panel and low-maintenance design make it simple to operate and manage.
Q1: What is the main function of the TR20 Air Dryer?
A: Its primary function is to remove water vapor from compressed air systems by cooling the air, which causes moisture to condense. The liquid water is then separated and automatically drained out, resulting in dry, high-quality compressed air.
Q2: What is the recommended flow rate for the TR20 model?
A: The TR20 is designed to handle a nominal flow rate of approximately [e.g., 2.0 m³/min or 70 SCFM] at a standard operating pressure of 7 bar. Please consult the technical datasheet for precise specifications matching your pressure requirements.
Q3: Where should I install the TR20 in my compressed air system?
A: For optimal performance, install the TR20 after the air compressor and air receiver tank, but before any precision filters or end-use equipment.
Recommended Order: Air Compressor → Receiver Tank → TR20 Refrigerated Air Dryer → Point-of--Use Filter → Equipment.
Q4: A lot of water is being drained. Is this normal?
A: Yes, this is perfectly normal. It indicates that the dryer is working effectively. The amount of water drained depends on the humidity and the load of your air compressor. The automatic drain valve is designed to handle this.
Q5: The unit is not starting. What are the first things I should check?
A:
Power Supply: Ensure the unit is plugged in and the main power switch is ON.
Circuit Breaker: Check if the circuit breaker has tripped.
Safety Lockouts: The controller may have a safety delay. Wait a few minutes. Also, check that the inlet air pressure and temperature are within the specified operating range, as the unit may not start if they are outside the limits.
Q6: How often does the TR20 require maintenance?
A: Maintenance needs are minimal but crucial:
Condenser Coil: Clean every 1-3 months (depending on dust levels) to maintain efficiency.
Auto Drain Valve: Inspect and clean the valve filter semi-annually.
General Inspection: It is recommended to have a professional service check annually.
