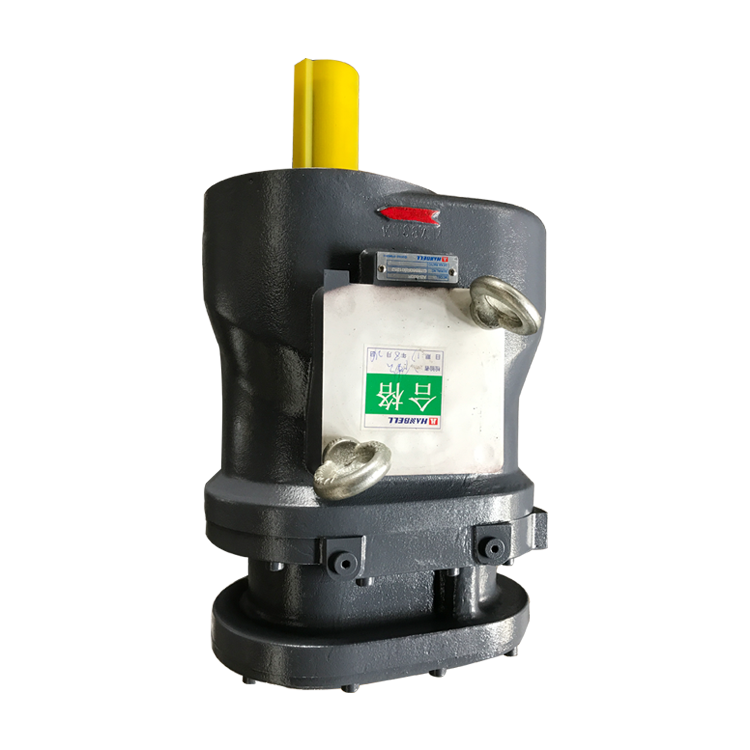

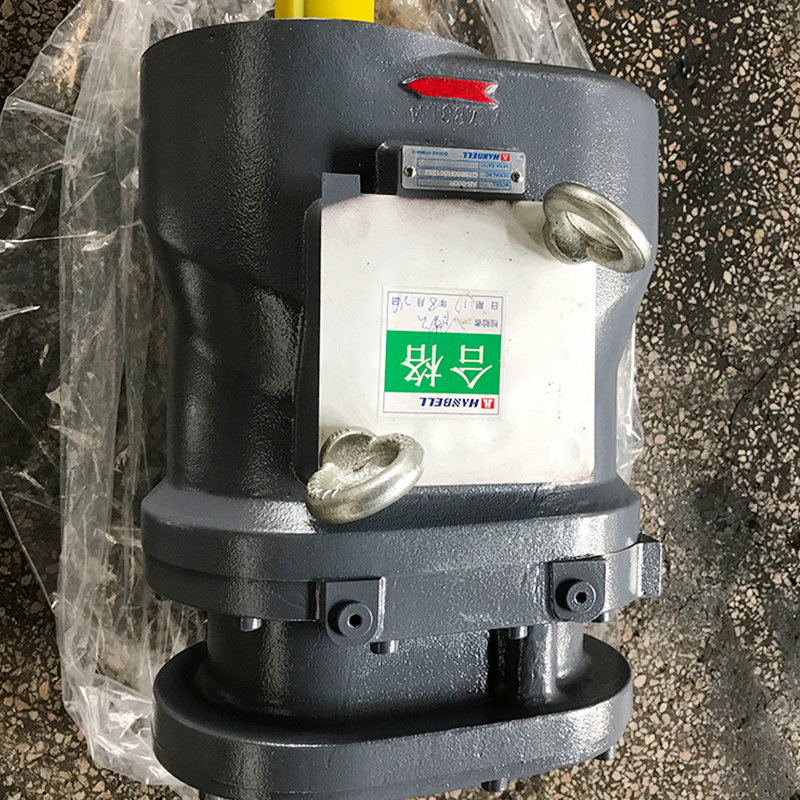

The Hanbell AB-600R is a high-performance industrial air compressor engineered for large-scale, continuous-duty operations. It delivers reliable, high-volume compressed air with advanced energy management, targeting demanding applications in heavy manufacturing, processing plants, and large-scale infrastructure projects where operational uptime and efficiency are critical.
Technical Parameters
| Model | Power (kW) | Rotating speed (rpm) | Air Delivery (m3/min) | Shaft power (kW) | Specific power (kW/m'/min) | S.F. | Dimension(mm) | Weight(kg) |
| AB-600R | 55 | 2950 | 9.1 | 57.6 | 6.3 | 1.05 | 630*350*300 | 155 |
1. High-Efficiency Compression System
Advanced Screw Airend: Precision-machined asymmetric rotor profile with optimized sealing line for maximum volumetric efficiency
Direct Drive Configuration: Gearless drive system eliminating transmission losses and maintenance requirements
Adaptive Control Logic: Real-time adjustment of compression parameters based on demand and operating conditions
2. Intelligent Energy Management
Variable Speed Drive (VSD) Technology: Precise motor speed control matching exact air demand
Power Factor Correction: Integrated system maintaining PF >0.95 across operating range
Energy Recovery Option: Waste heat recovery system for secondary heating applications
Smart Sequencing: Multi-compressor control capability for optimized plant efficiency
3. Enhanced Thermal Management
Dual Cooling Circuit Design: Independent cooling for compression oil and compressed air
Intelligent Fan Control: ECM fans with variable speed operation based on thermal load
High-Efficiency Oil Separator: Multi-stage separation system with <3ppm oil carryover
Optimized Airflow Design: Computational fluid dynamics (CFD) optimized cooling airflow
4. Advanced Control & Monitoring
Industrial-Grade Controller: 10-inch touchscreen HMI with data logging capability
IoT Connectivity: Remote monitoring via Modbus TCP, Ethernet/IP, or cloud-based platforms
Predictive Maintenance: Integrated sensors monitoring vibration, temperature, and performance trends
Automated Control Modes: Multiple operating strategies (VSD, dual-control, network control)
5. Robust Construction
Heavy-Duty Enclosure: Sound-attenuated canopy with <75 dBA noise level
Vibration Isolation: Multi-point mounting system with industrial-grade isolators
Corrosion Protection: Epoxy-coated components and stainless steel fittings in critical areas
Service Accessibility: 360-degree maintenance access with fold-down panels
Operational Excellence
Energy Efficiency: IE4 premium efficiency motor combined with VSD technology reduces energy consumption by 20-35% compared to fixed-speed units
High Reliability: Designed for 100% duty cycle operation with 60,000+ hours before major overhaul
Low Lifecycle Cost: Extended maintenance intervals and high-efficiency operation minimize total cost of ownership
Technical Superiority
Stable Air Supply: Pressure stability within ±0.1 bar across entire operating range
Wide Operating Range: Capable of 40-100% capacity modulation without efficiency penalty
Quick Response: Full pressure recovery within 30 seconds from standby mode
Environmental Compliance: Meets ISO 8573-1:2010 Class 1.4.1 air quality standards
User Benefits
Reduced Operating Costs: Lower energy consumption and maintenance requirements
Enhanced Productivity: Reliable air supply minimizing production interruptions
Future-Proof Design: Compatible with Industry 4.0 and smart factory initiatives
Comprehensive Protection: Multiple safety interlocks and fault protection systems
Heavy Manufacturing
Automotive assembly plants and component manufacturing
Steel mills and metal fabrication facilities
Large-scale foundry operations
Shipbuilding and aerospace manufacturing
Process Industries
Chemical processing plants
Petrochemical refineries
Pharmaceutical manufacturing (with appropriate filtration)
Food and beverage processing (with purification systems)
Infrastructure & Energy
Power generation facilities
Water treatment and distribution systems
Mining and mineral processing
Large-scale construction projects
Specialized Applications
Pneumatic conveying for bulk materials
Industrial wastewater treatment
Large-capacity air blast systems
Process cooling and instrument air
