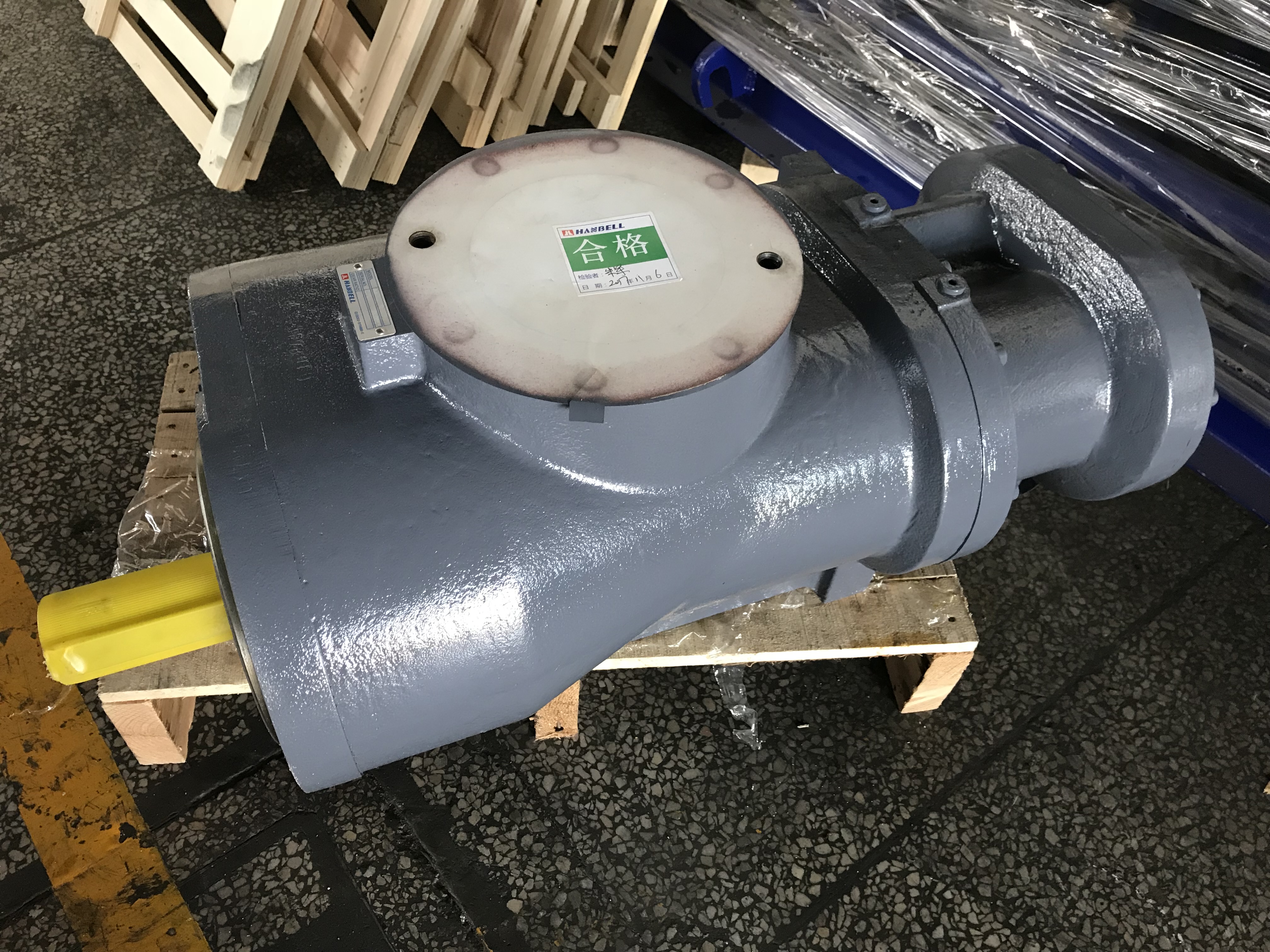

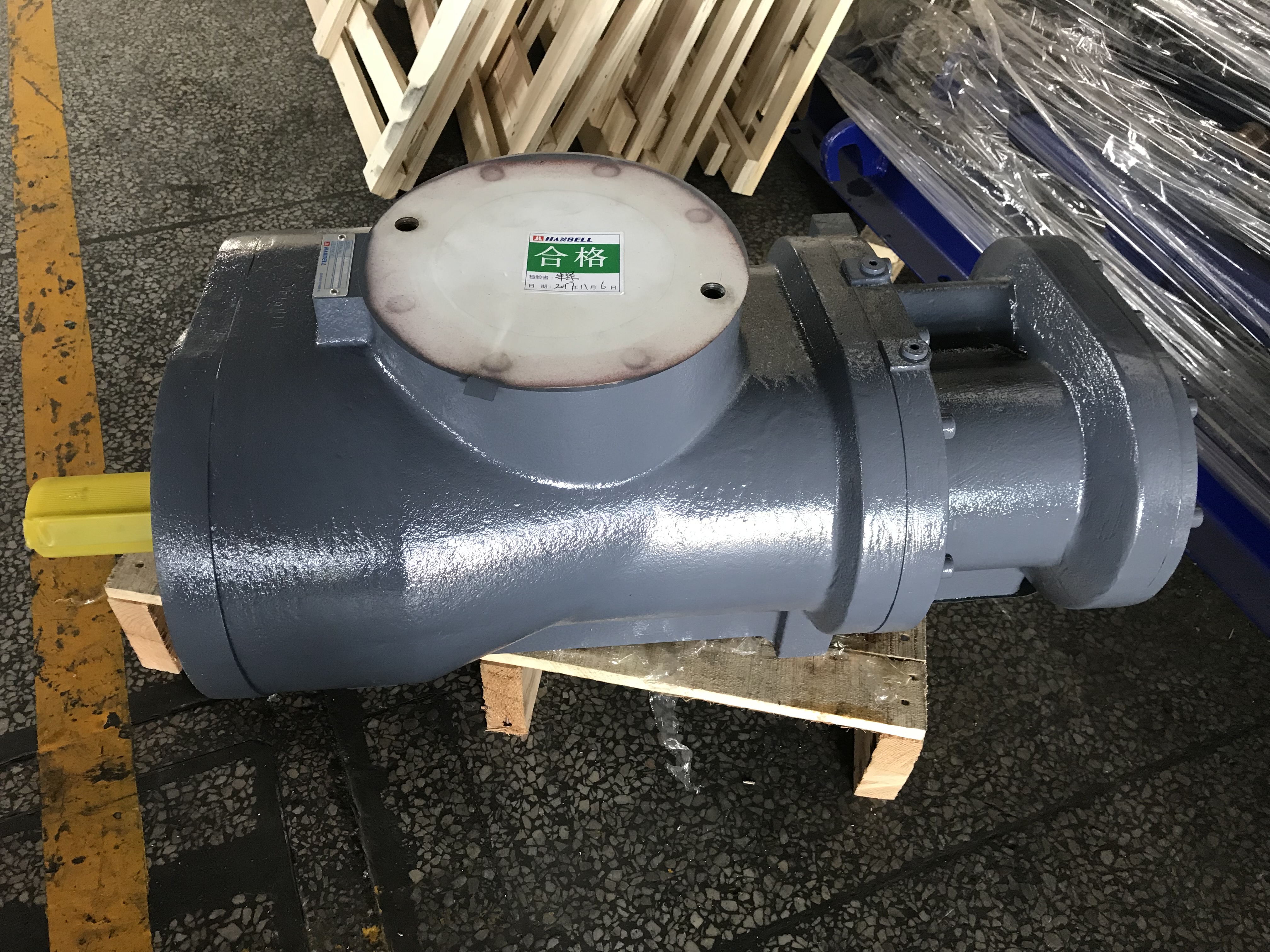

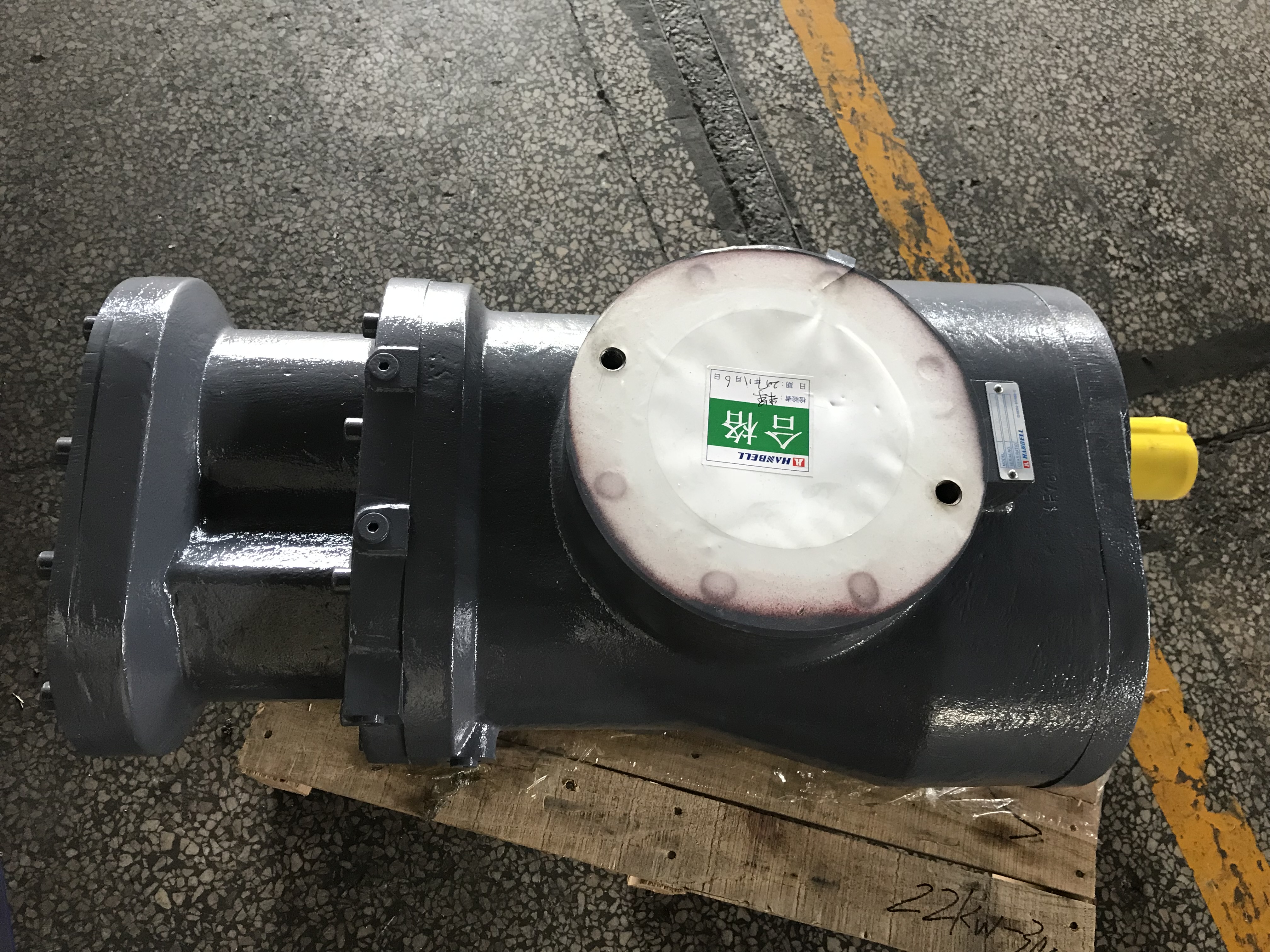

The Hanbell air compressor unit, manufactured by Shanghai Hanbell Precise Machinery Co., Ltd., is a core component of screw-type air compressors and represents advanced engineering in the field of industrial compressed air systems. Known for its high efficiency, reliability, and innovative design, the Hanbell unit is widely used across various industries.
Technical Parameters
| Model | Power (kW) | Rotating speed (rpm) | Air Delivery (m3/min) | Shaft power (kW) | Specific power (kW/m3/min) | S.F. | Dimension(mm) | Weight(kg) |
| AA-1560 | 160 | 2950 | 23.9 | 151.6 | 6.3 | 0.95 | 928*630*453 | 558 |
Advanced Rotor Profile:
Hanbell employs proprietary asymmetric rotor profiles optimized for minimal internal leakage, maximizing volumetric efficiency and reducing energy consumption.
Precision Manufacturing:
The unit features high-strength cast iron housing and precisely machined alloy steel rotors, ensuring durability, minimal operational clearance, and stable performance under heavy loads.
Efficient Oil Injection System:
In oil-injected models, the optimized oil injection technology provides effective lubrication, cooling, sealing, and noise reduction, achieving near-isothermal compression for enhanced efficiency.
High-Quality Components:
Equipped with internationally renowned bearings (e.g., SKF, FAG) and reliable shaft seals, the unit ensures long service life and minimal maintenance requirements.
Low Noise and Vibration:
Precision dynamic balancing and rigid construction contribute to smooth, quiet operation, reducing the need for special foundations or noise mitigation.
Energy Efficiency: Reduced operational costs due to optimized rotor design and precise manufacturing.
Durability: Robust construction and premium components ensure extended lifespan and reliable performance.
Low Maintenance: Modular design simplifies servicing and reduces downtime.
Industry Recognition: Hanbell units are trusted by global compressor manufacturers and end-users for their quality and performance.
Applications
Oil-Injected Series
A versatile range for general industrial use, offering power from several kW to hundreds of kW.
Permanent Magnet Variable Frequency Series
Integrates a permanent magnet synchronous motor with the compressor unit, enabling IE4/IE5 efficiency levels and significant energy savings through variable speed control.
Oil-Free Screw Units
Designed for critical applications requiring 100% oil-free air (e.g., food, pharmaceuticals, electronics), utilizing timing gears to prevent rotor contact.
