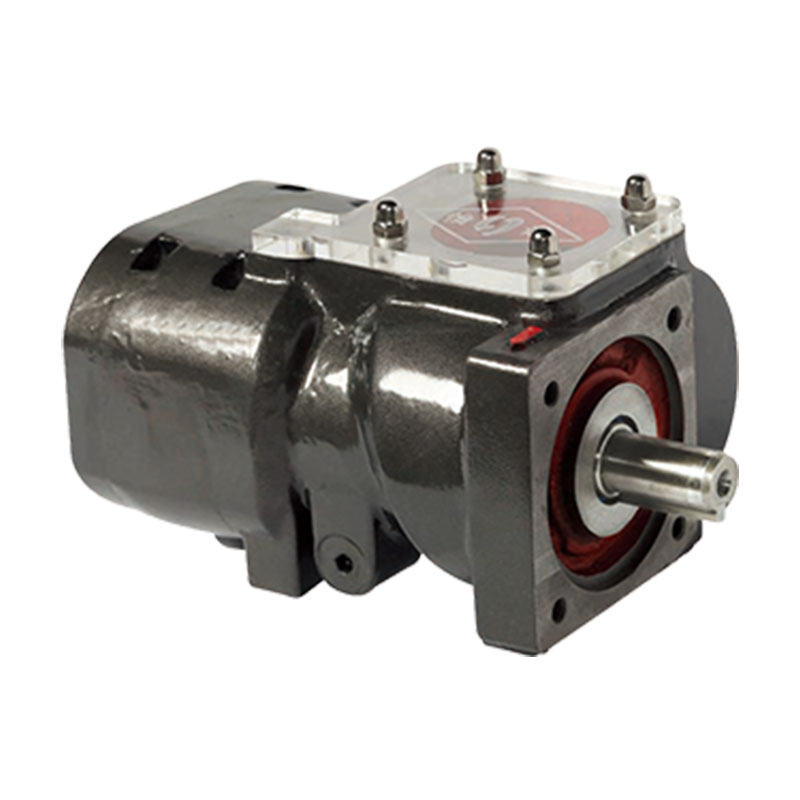

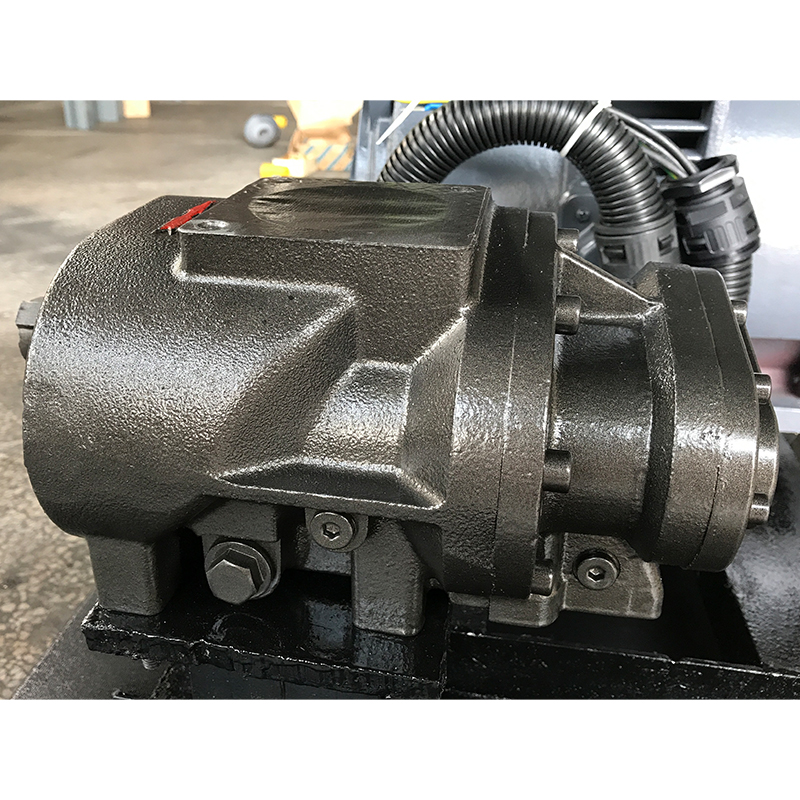

The Baosi YNT70B is an advanced, high-efficiency oil-injected rotary screw air compressor designed for small to medium industrial enterprises seeking superior energy savings, reliable performance, and intelligent operation. It represents an evolution in the YNT series, incorporating enhancements focused on operational economy and connectivity.
Technical Parameters
| Model | Power(kW) | Connection method | Dimension（mm） | Weight（kg) |
| YNT70B | 15KW | direct drive | 398*220*175 | 35 |
Optimized Two-Stage Air End (Potential Feature Enhancement): While maintaining the proven asymmetric rotor profile, the YNT70B may incorporate design optimizations for higher volumetric efficiency. Some variants in this class might feature a two-stage compression process, significantly improving energy efficiency over standard single-stage models.
Permanent Magnet Synchronous Motor (PMSM): A key upgrade, the YNT70B is typically equipped with a high-efficiency Permanent Magnet Synchronous Motor. This motor offers a higher power factor, excellent starting torque, and superior energy efficiency across a wider load range, especially under partial loads, leading to substantial power savings.
Advanced Intelligent Control System: Features a modern, full-featured PLC or microprocessor-based controller with a clear digital interface. This system provides precise system control, detailed real-time monitoring (including energy consumption tracking), customizable pressure bands, and comprehensive fault diagnostics. It often supports remote monitoring capabilities via modem or network connection.
Enhanced Forced-Draft Cooling System: Utilizes an independent, intelligent cooling fan system that adjusts speed based on real-time temperature readings. This ensures optimal thermal management, reduces power consumption of the fan itself, and maintains consistent operating temperatures for maximum component lifespan and oil longevity.
Low Noise, Robust Enclosure: Housed in a full, acoustically engineered canopy with improved sound insulation materials. This design achieves notably low noise levels, protecting components from harsh workshop environments and contributing to workplace safety and comfort.
Extended Maintenance Intervals: Designed for high productivity. Features such as a large oil reservoir, high-efficiency oil separation system, and intelligent temperature control contribute to extended service intervals for lubricant and filter changes, reducing maintenance frequency and downtime.
Exceptional Energy Efficiency: The combination of a potential optimized (or two-stage) air end and the PMSM motor is the core advantage. This synergy can result in energy savings of 15-30% compared to standard fixed-speed compressors, offering an extremely fast return on investment (ROI) through drastically reduced electricity costs.
Outstanding Reliability and Stability: Built with industrial-grade components and featuring advanced thermal management, the YNT70B ensures stable air output and pressure, even in demanding 24/7 operating conditions. This minimizes production downtime and provides a dependable air supply.
Lowest Total Cost of Ownership (TCO): While the initial investment might be higher than basic models, the YNT70B is engineered for the lowest TCO. This is achieved through radical energy savings, reduced maintenance costs, and enhanced durability, maximizing long-term value.
Intelligent Operation and Connectivity: The advanced control system enables predictive maintenance, data-driven decision-making, and remote system management. This connectivity is a crucial step towards Industry 4.0, allowing for integration into smart factory systems.
Environmental Compliance and Quiet Operation: The high efficiency directly reduces the carbon footprint. Coupled with its low noise emission, it supports compliance with workplace safety and environmental regulations, promoting a greener and more pleasant workshop environment.
Automotive Manufacturing and Large Repair Shops: Powering automated assembly tools, painting robots, and multiple service bays simultaneously in large facilities where energy efficiency translates to major cost savings.
Precision Manufacturing and Metal Fabrication: Providing stable, clean air for CNC machining centers, laser cutters, plasma cutters, and automated pneumatic systems in job shops and small manufacturing plants.
Electronics and Appliance Assembly: Serving as a central air source for production lines where consistent pressure is required for sensitive pneumatic equipment and automation (with appropriate air treatment).
Textile and Packaging Industries: Powering air jets in looms, packaging machinery, and automated palletizing systems where compressed air is a major utility cost.
Food and Beverage Processing (with appropriate air treatment): Used in processing and packaging applications where high air quality (after filtration) and energy efficiency are paramount for operational profitability.
