Your industrial screw air compressor is a powerful workhorse, but the air it produces isn't ready for sensitive equipment right at the discharge port. Think of it like a mountain spring—the water may come from a pure source, but it picks up debris and contaminants on its way to your tap. Compressed air is similar, containing heat, moisture, oil, and particles. To ensure reliable, efficient, and clean operation, a robust post-compression treatment system is not a luxury; it's a necessity. Here’s a breakdown of why this "dream team" of a receiver tank, refrigerated dryer, desiccant dryer, and precision filters is essential.
Imagine your compressed air demand spiking every few minutes. Without a buffer, your compressor would constantly cycle on and off, leading to excessive wear, energy waste, and pressure fluctuations ("pressure droop") that can disrupt tools and processes.
Function: The storage tank, or receiver, acts as a reservoir and a buffer. It stores compressed air, allowing the compressor to run in longer, more efficient cycles and meet sudden demand surges without immediate startup. It also provides crucial cooling, causing the first stage of water vapor to condense and drop out of the air stream.
The "Why": It protects your compressor, saves energy, stabilizes system pressure, and initiates the moisture removal process.
The air from the compressor is hot and saturated with water vapor. As it cools downstream, this vapor will condense into liquid water, causing corrosion in pipes, washing away tool lubrication, damaging pneumatic controls, and ruining paint finishes.
Function: A refrigerated dryer cools the compressed air to a low temperature (typically around 3°C/37°F) using a refrigeration circuit. This forces the bulk of the water vapor to condense into liquid, which is then drained away automatically.
The "Why": It removes over 70-90% of the liquid water and vapor, protecting your system from bulk moisture damage. It's the standard, energy-efficient workhorse for general industrial applications where a dew point of around 3°C is acceptable.
For applications where even a tiny amount of moisture is catastrophic—such as in pharmaceutical manufacturing, food and beverage packaging, electronics painting, or instrument air—a lower dew point is required. A refrigerated dryer alone cannot achieve this.
Function: A desiccant dryer uses hygroscopic materials (like silica gel or activated alumina) to adsorb water vapor from the air. The air passes through towers filled with desiccant, which attracts and holds the moisture molecules. These dryers typically come in pairs: one tower dries the air while the other is regenerated (dried out) using a purge of dry air or heat.
The "Why": It delivers extremely dry air, achieving dew points as low as -40°C or even -70°C. This prevents any chance of freezing or condensation in critical processes, ensuring product quality and system integrity in moisture-sensitive applications.
Even after drying, compressed air contains contaminants: liquid oil and water aerosols, compressor lubricant vapors, and solid particles (pipe scale, rust, dust). These can clog valves, erode cylinders, and contaminate end products.
Precision filters are deployed in stages, each with a specific target:
Coalescing Filters: Placed after the dryers, these filters use a fibrous medium to coalesce tiny oil and water aerosols (mist) into larger droplets that fall to the bottom and are drained. They remove liquids and solid particles down to 0.01 micron (and sometimes 0.01 mg/m³ oil content).
Adsorption Filters (Activated Carbon): These are the final polish. They use activated carbon to adsorb oil vapors and hydrocarbon odors that pass through coalescing filters. This stage is critical for food, beverage, and breathing air applications.
Particulate Filters: Often used as pre-filters or after desiccant dryers to catch any desiccant dust or larger solid particles.
The "Why": They protect your downstream equipment, your product, and your process from all non-water contaminants, ensuring truly clean, high-quality compressed air.

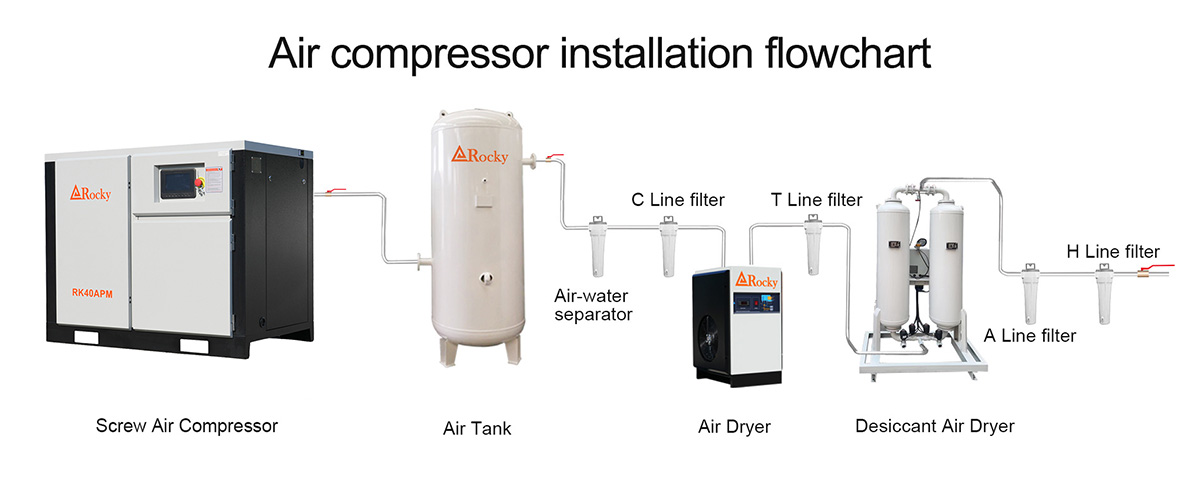

These components work in a deliberate sequence for maximum effectiveness:
Receiver Tank: Cools air, drops out bulk liquid, stabilizes flow.
Refrigerated Dryer: Removes the bulk of remaining water vapor.
Desiccant Dryer (if needed): Provides ultra-deep drying for critical applications.
Precision Filters (in stages): Remove oil aerosols, particles, and finally vapors.
Investing in a proper compressed air treatment system is an investment in reliability, product quality, and operational cost savings. An untreated system leads to:
Increased maintenance and downtime.
Corroded pipelines and failed instruments.
Contaminated products leading to waste and recalls.
Higher energy consumption due to inefficient compressor operation.
By deploying the integrated team of a storage tank, the appropriate dryer(s), and a staged filtration system, you transform raw, dirty, wet compressed air into a clean, dry, and stable utility—a truly reliable partner for your production. Always consult with a compressed air specialist to design the right treatment train for your specific application and air quality standards (e.g., ISO 8573-1 classes).
