In the PET bottle manufacturing industry, compressed air is not just a utility – it is the backbone of the blow molding process. To produce high-quality, consistent PET bottles, you need a reliable source of high-pressure, oil-free air. Traditional compressors often struggle with oil contamination, high energy consumption, and frequent maintenance. That’s where our 40 bar oil-free water-lubricated screw air compressor comes in – designed specifically to meet the rigorous demands of PET blowing lines.
PET bottle blowing typically requires compressed air at pressures between 30 and 40 bar. Many manufacturers still rely on oil-lubricated piston or screw compressors with downstream purification equipment. This approach creates several problems:
Oil carryover risk – Even trace amounts of oil can cause defects in PET bottles, leading to rejects and customer complaints.
High energy costs – Conventional compressors lose efficiency due to friction and heat, driving up electricity bills.
Frequent maintenance – Oil changes, filter replacements, and cooler cleaning increase downtime and operating expenses.
Inconsistent pressure – Pressure fluctuations directly affect bottle wall thickness and shape integrity.
Complex purification systems – Multiple stages of filters and dryers add capital and maintenance costs.

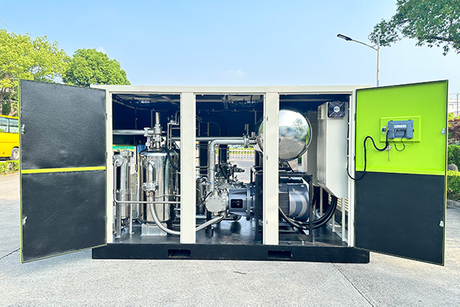

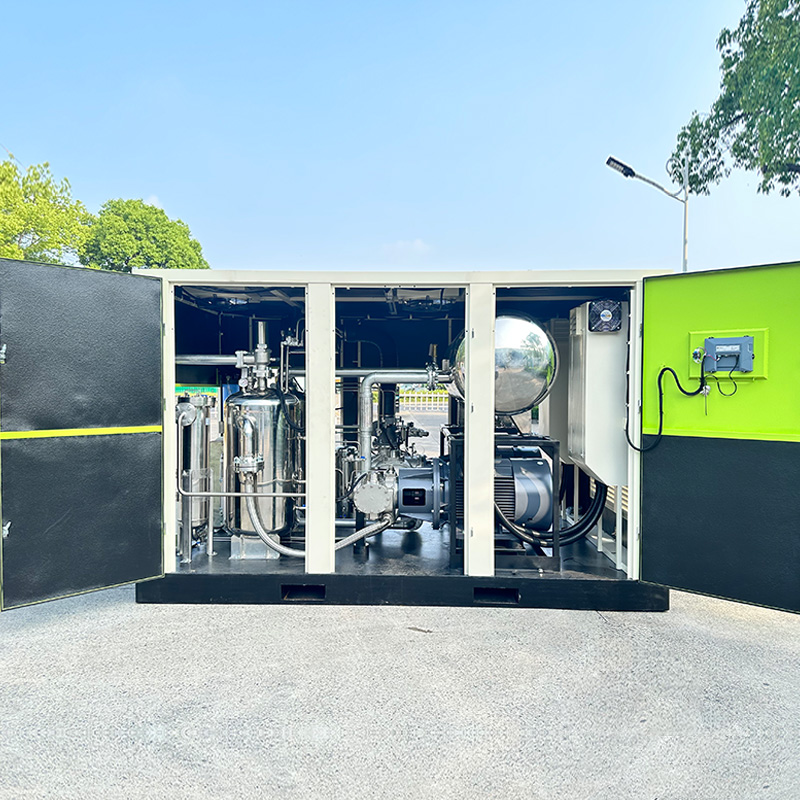

Our advanced water-lubricated screw technology eliminates oil entirely from the compression chamber. Instead of oil, treated water is used for lubrication, sealing, and cooling. This design offers a breakthrough for PET blowing applications:
No oil contacts the compression chamber. Your PET bottles remain free from contamination risks, meeting the highest food-grade and safety standards. No need for expensive oil-removal filters.
The compressor delivers a consistent 40 bar output, precisely matching PET blow molding requirements. Dual-stage screw elements ensure stable pressure even under variable load conditions.
Water has superior cooling properties compared to oil. This reduces discharge temperatures, extends component life, and improves volumetric efficiency – all while keeping the air clean.
Lower internal friction and better heat dissipation mean our compressor consumes significantly less energy than equivalent oil-lubricated or piston-type units. For a 24/7 PET line, this translates into thousands of dollars saved annually.
No oil separators, no oil filters, no oil replacement. Maintenance is limited to water treatment and standard inspections. Downtime is drastically reduced, and spare parts inventory is simpler.
Parameter | Value |
|---|---|
Working pressure | Up to 40 bar |
Oil-free certification | ISO 8573-1 Class 0 |
Cooling medium | Deionized water |
Drive power range | 55–250 kW (customizable) |
Flow rate (at 40 bar) | 3–25 m³/min |
Lower total cost of ownership – Reduced energy, maintenance, and filtration costs.
Higher product quality – No oil-induced defects; consistent bottle clarity and strength.
Environmentally friendly – No waste oil disposal; water is recirculated in a closed loop.
Proven in industry – Already installed in major PET preform and bottle production facilities across Asia, Europe, and the Middle East.
A PET bottle manufacturer in Southeast Asia switched from a conventional oil-lubricated screw compressor to our 40 bar oil-free water-lubricated unit. Results after six months:
Energy consumption reduced by 12%
Maintenance costs cut by 40%
Bottle reject rate dropped by 80% (eliminating oil spots)
ROI achieved in under 18 months
Every PET production line is different. Our engineering team can help you size the right compressor based on your air consumption, pressure requirements, and operating hours.
Contact us today to receive a free energy savings analysis and a tailored quotation. Improve your bottle quality while lowering your production costs – with reliable, oil-free, high-pressure air.
Request a quote now or email us for more technical data and case studies.
