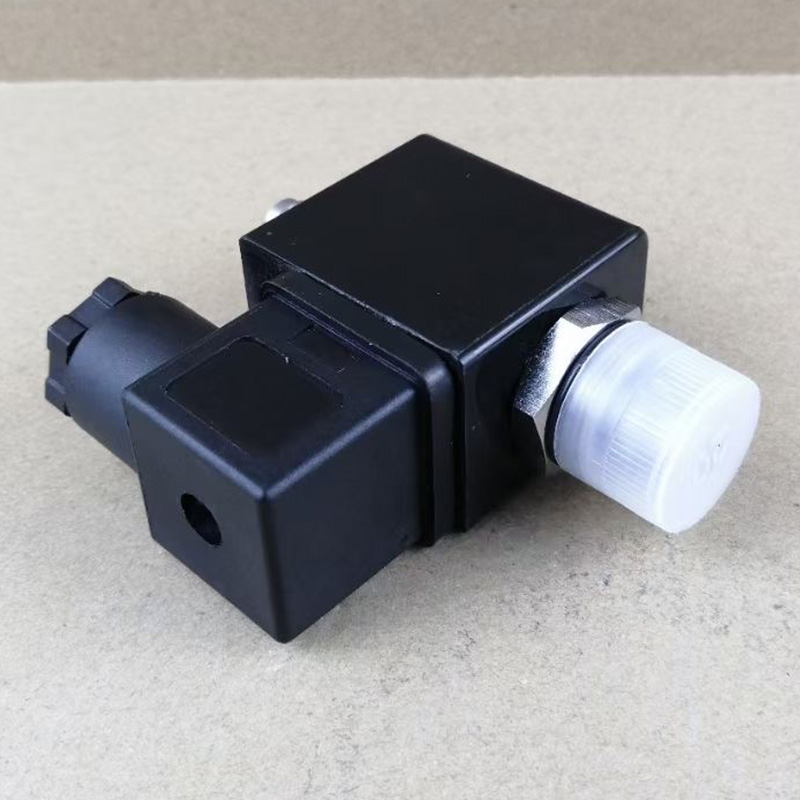

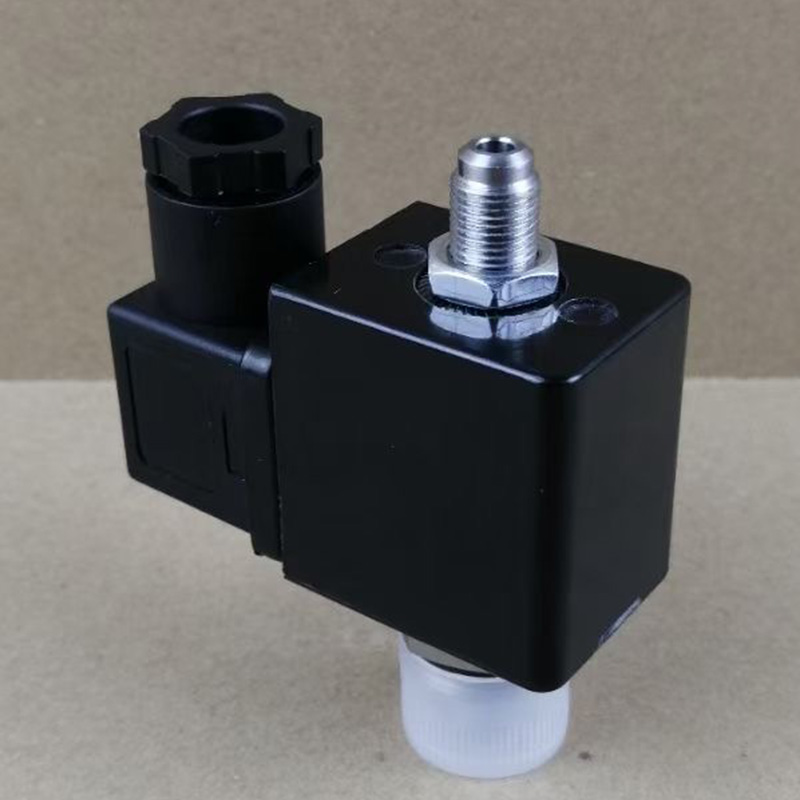

The MINDMAN BEST-1-2 is a versatile, pilot-operated, sub-base mounted 5/2-way or 3/2-way solenoid valve. It is a classic and widely used component in industrial automation for controlling pneumatic actuators, renowned for its reliability and cost-effectiveness.
Product name | electronic drain valve | |||
| Model | BEST-1-2 | |||
| Voltage supply | 220V/1ph/50hz | |||
| Keywords | electronic drain valve,drain valve,air compressor drain valve | |||
Pilot-Operated Design: Utilizes air pressure to shift the main spool, allowing for low power consumption and control of high flow rates with a small solenoid force.
Spool-Type Structure: Features a precision-machined spool and sleeve assembly, ensuring excellent wear resistance and a long operational life.
Sub-Base Mounting: This standardized mounting design allows for easy installation and removal of the valve body while the manifold remains piped. It simplifies maintenance and reduces downtime.
Multiple Configurations:
Single Solenoid (BEST-1-2): Spring return. The valve shifts when energized and returns to the original position when de-energized.
Double Solenoid (BEST-2-2): Bi-stable. The valve shifts and holds its position with a pulse signal, requiring a signal to the opposite coil to return.

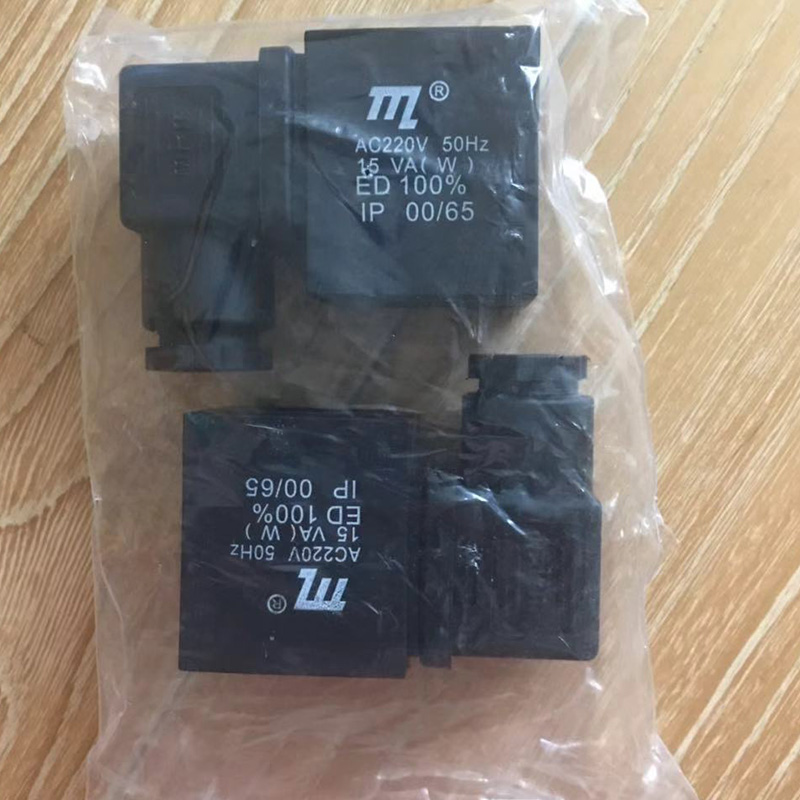

Coil and Electrical Properties:
IP65 Protection Rating: Protects against dust and water jets, making it suitable for harsh industrial environments.
Multiple Voltage Options: Available in AC (e.g., 110V, 220V) and DC (e.g., 24V) versions for easy integration with different control systems.
Built-in LED Indicator: Facilitates easy troubleshooting and visual confirmation of the valve's status.
Manual Override: Includes a manual override button for testing, positioning, and troubleshooting during setup or in case of a power failure.
High Reliability & Long Service Life: The use of high-quality seals (like NBR) and a hardened, precision spool ensures millions of reliable cycles (often exceeding 10 million), minimizing downtime.
Fast Response Time: The pilot-operated mechanism provides quick shifting, meeting the demands of high-speed automated production cycles.
Excellent Interchangeability: As a standard solenoid valve, the BEST-1-2 shares common mounting dimensions and specifications with many other major brands (e.g., SMC, Festo), simplifying sourcing and replacement.
Easy Maintenance: The modular design allows for separate replacement of the coil or valve body. The manual override and LED indicator further simplify maintenance.
High Cost-Effectiveness: It offers robust performance and reliability at a competitive price point, making it a preferred choice for many OEMs and end-users.
The BEST-1-2's versatility makes it suitable for a wide range of industries requiring pneumatic control:
Automation Machinery & Production Lines:
Cylinder Actuation: Controlling the extension and retraction of single-acting or double-acting cylinders for tasks like part ejection, clamping, and positioning.
Pneumatic Grippers: Operating grippers in robotic arms or CNC machines to pick and place workpieces.
Packaging Machinery: Used in sealing, filling, labeling, and coding operations.
Textile Machinery: Controlling pneumatic mechanisms for weaving, patterning, and yarn breakage detection.
Food & Beverage and Pharmaceutical Equipment: Stainless steel body or specific seal material options are available for clean environments to control processes like dispensing and valve actuation.
Electronics & Semiconductor Manufacturing: Driving precise cylinders or vacuum cups in equipment for precision assembly, testing, and sorting.
