Introduction to High-Pressure Breathing Compressors

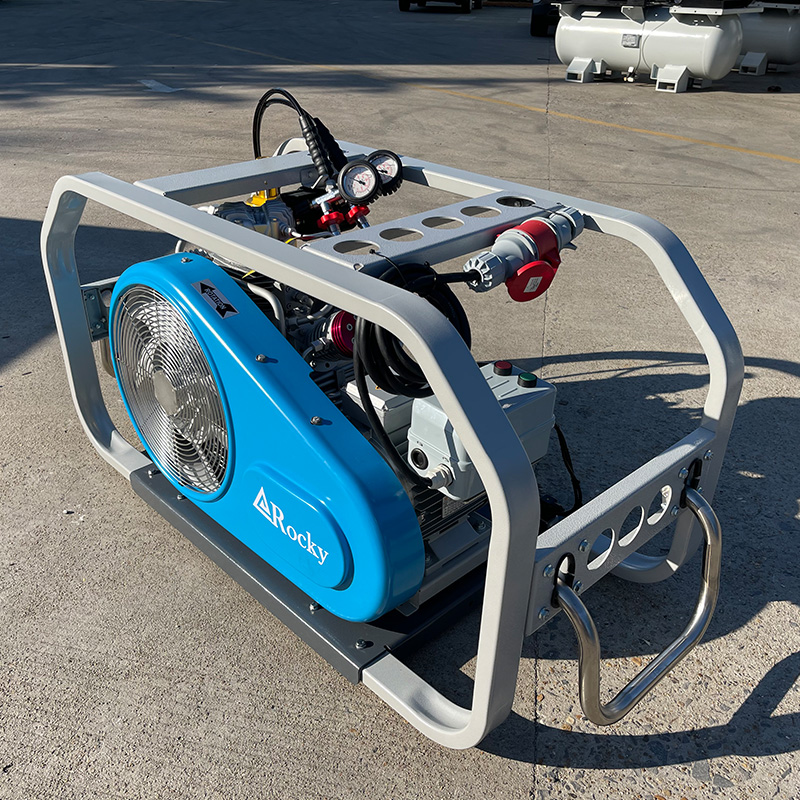

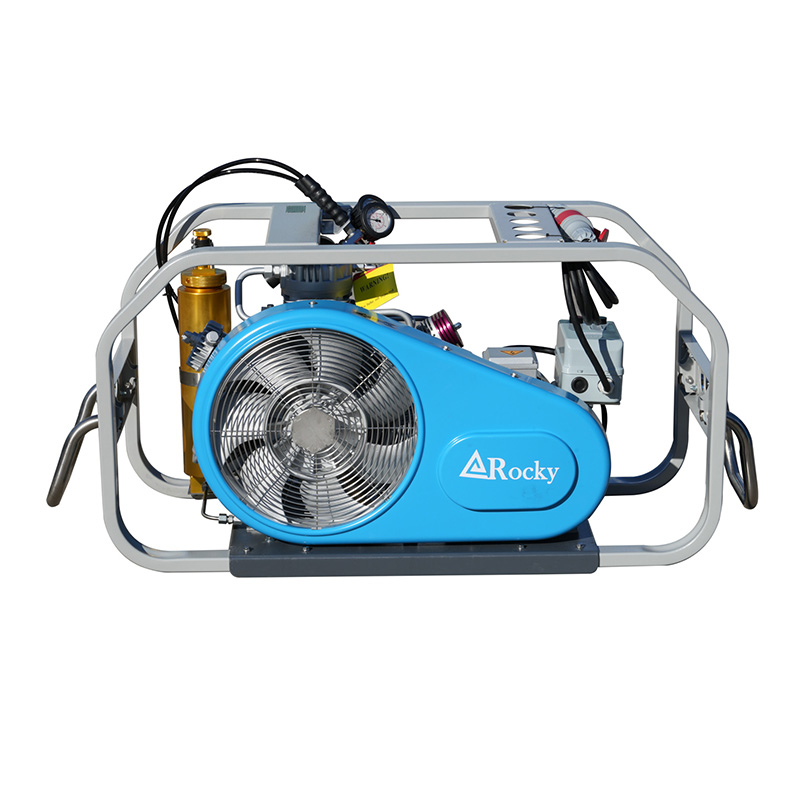

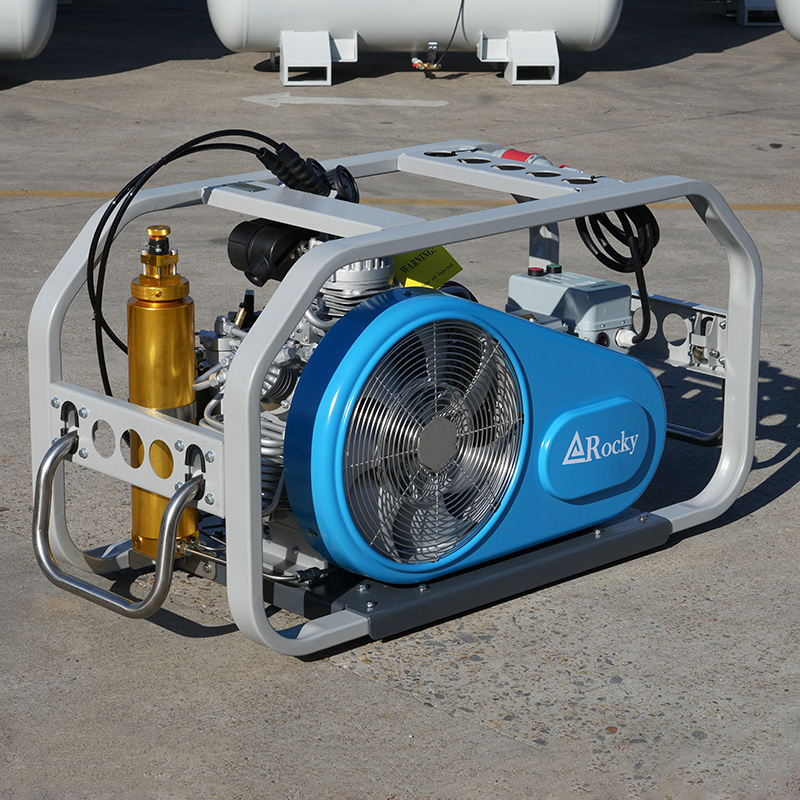

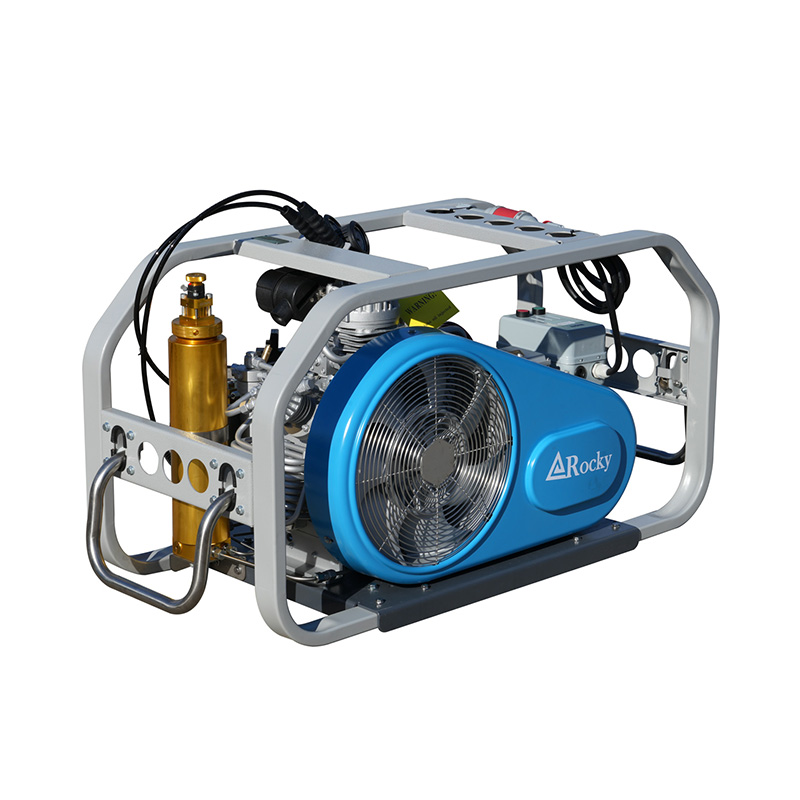

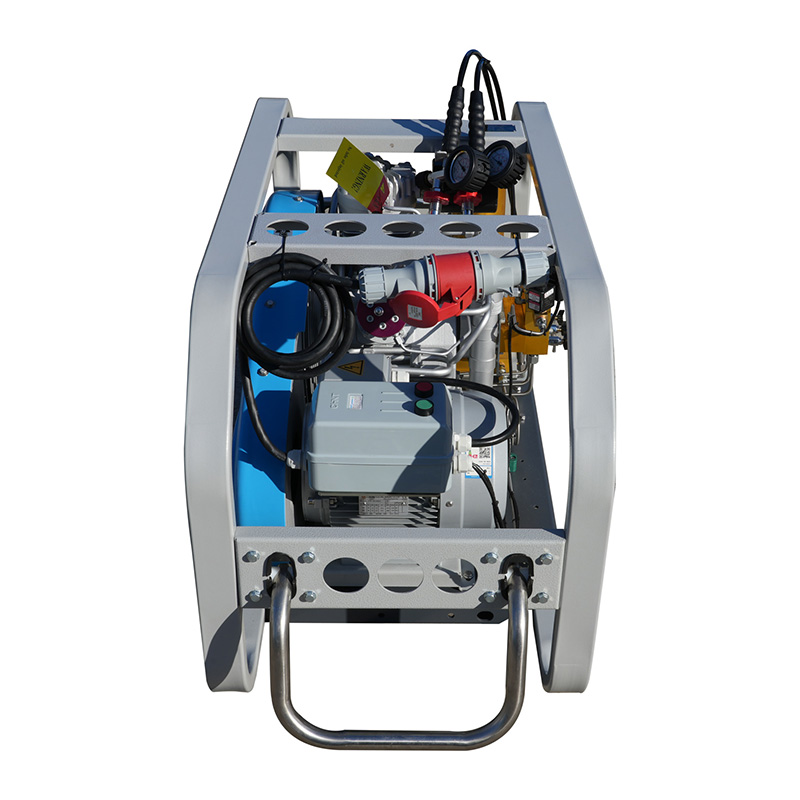

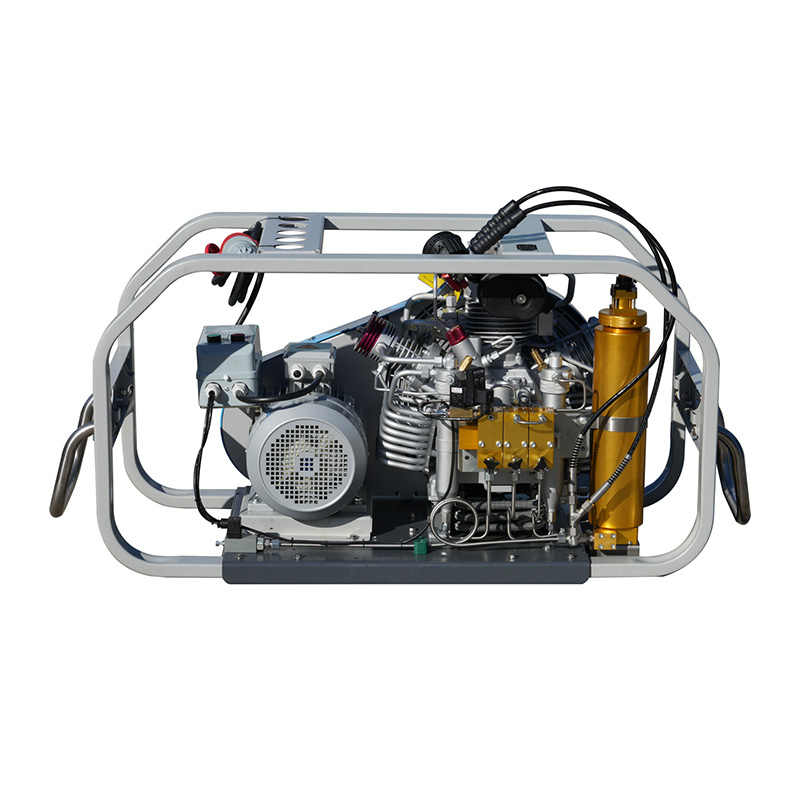

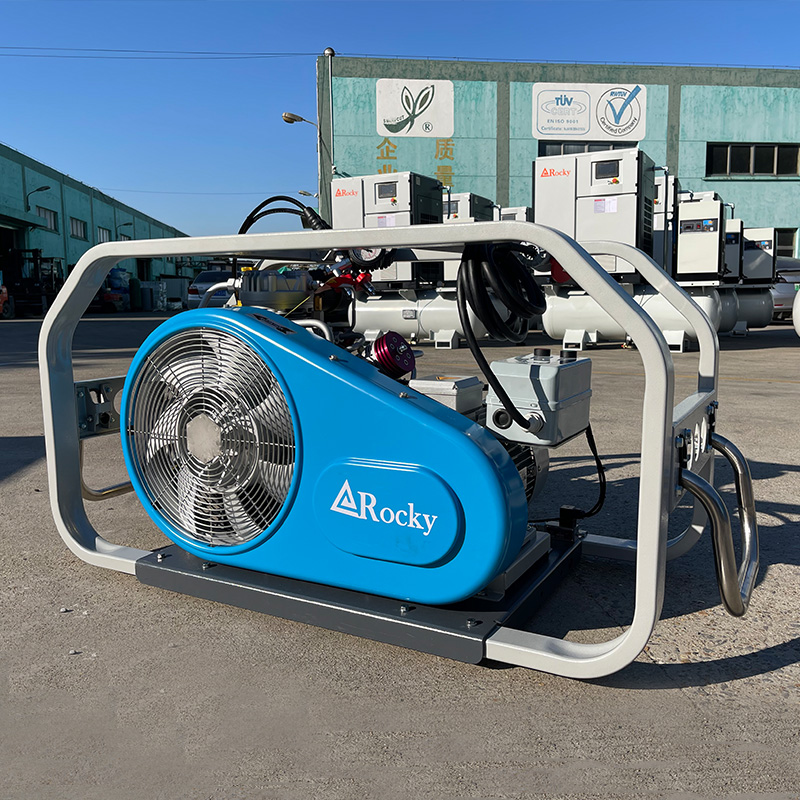

400L high-pressure breathing compressor refers to high-pressure gas compression equipment with an exhaust volume of 400 liters/minute. It is specially designed for breathing-grade air (such as diving, firefighting, medical and other purposes). The working pressure is usually 200-350bar, and the output gas is clean and safe.
Product Parameters
| Model | Flow (L/min/cfm) | Pressure (Bar) | Power (Hp) | (V/HZ/PH) | Speed （Rpm） | Compression stage | Oil amount (L) | Operating Temp (°C) | Dimension L*W*H(mm) | Weight (Kg) | ||||
| GDR-200E | 200/7 | 225/350 | 5.5 | 220-440V 50/60HZ 3PH | 1250 | 3 | 2.8 | 5~ +45 | 1160*590*570 | 116 | ||||
| GDR-200P | 200/7 | 225/350 | 8 | Honda Gasoline Engine | 1250 | 3 | 2.8 | 5~ +45 | 1180*590*570 | 109 | ||||
| GDR-265E | 265/9 | 225/350 | 10 | 220-440V 50/60HZ 3PH | 1450 | 3 | 2.8 | 5~ +45 | 1160*590*570 | 124 | ||||
| GDR-265P | 265/9 | 225/350 | 12 | Honda Gasoline Engine | 1450 | 3 | 2.8 | 5~ +45 | 1180*590*570 | 115 | ||||
| GDR-320E | 320/11 | 225/350 | 10 | 220-440V 50/60HZ 3PH | 1950 | 4 | 2.8 | 5~ +45 | 1300*640*740 | 138 | ||||
| GDR-320P | 320/11 | 225/350 | 13 | Honda Gasoline Engine | 1950 | 4 | 2.8 | 5~ +45 | 1300*640*850 | 154 | ||||
| GDR-400E | 400/14 | 225/350 | 10 | 220-440V 50/60HZ 3PH | 2850 | 4 | 2.8 | 5~ +45 | 1450*640*740 | 160 | ||||
| GDR-400P | 400/14 | 225/350 | 13 | Honda Gasoline Engine | 2850 | 4 | 2.8 | 5~ +45 | 1450*640*850 | 178 | ||||
Features and Advantages
High-Flow Air Supply: 400L/min of air flow allows for rapid cylinder refills, improving operational efficiency.
Oil-Free Design: Eliminates oil contamination and complies with breathing air standards such as EN12021 and NFPA.
Stable and Reliable: Industrial-grade components are resistant to high pressure and corrosion, making them suitable for long-term continuous operation.
Intelligent Control: Select models feature pressure regulation and automatic shutdown for safer operation.
Low Energy Consumption: High-efficiency motors and compression systems reduce operating costs.
Application Industries
Diving: Suitable for diving clubs and commercial diving operations, quickly filling multiple cylinders.
Firefighting and Rescue: Providing a large-capacity breathing air supply for fire stations and emergency rescue teams.
Medical: Suitable for use in medical equipment such as hyperbaric oxygen chambers and centralized oxygen supply systems.
Industrial: Inflating respiratory protection equipment in high-risk environments such as the petroleum, chemical, and mining industries.
Military/Scientific Research: Special operations, laboratories, and other applications requiring high-purity, high-pressure gas.
FAQs
Q: What cylinder capacity is suitable for a 400L/min filling rate?
A: A 12L/300bar cylinder can generally be filled in 10-15 minutes, depending on the cylinder volume and pressure requirements.
2. Q: Is an additional air purification system required?
A: It typically has built-in multi-stage filtration (water, oil, and CO removal), but the filter cartridges must be replaced regularly to ensure air quality.
3. Q: Can it operate continuously 24 hours a day?
A: Industrial-grade models can operate for extended periods, but intermittent operation is recommended to extend life.
4. Q: What is the maintenance interval?
A: We recommend inspecting seals every 500 hours and replacing filters and lubricants (if applicable) every 1000 hours.
5. Q: What are the advantages of a 400L compressor compared to smaller compressors?
A: It has a faster filling rate and is suitable for high-volume, high-use environments with multiple cylinders, such as dive centers or fire stations.
