A breathable air compressor is a specialized life-support system designed to compress, purify, and monitor ambient air for human respiration in hazardous environments. Standard industrial compressed air introduces fatal risks. Using standard shop compressors for human respiration exposes users to carbon monoxide poisoning, oil vapor inhalation, and severe particulate contamination. Procurement managers, safety officers, and dive operators face strict regulatory compliance requirements from organizations like OSHA, NFPA, and CGA. Selecting an underpowered or improperly filtered unit jeopardizes operational safety and exposes organizations to severe liability risks.
This guide maps exact use cases to the correct compressor architecture. We decode the technical evaluation criteria, including pressure ratings, volume output, and purification mechanics. You will gain a practical framework for selecting a system that strictly aligns with your specific operational demands and mandatory compliance standards.
Application Dictates Architecture: High-pressure systems are required for filling SCBA/SCUBA cylinders, while low-pressure, oil-free systems paired with purifiers are used for direct continuous-flow supplied air respirators (SAR).
Strict Purification is Mandatory: A true breathable air compressor relies on multi-stage filtration to remove moisture, oil, hydrocarbons, and convert lethal carbon monoxide (CO) into carbon dioxide (CO2).
Compliance is Non-Negotiable: Systems must be matched to specific air quality standards, primarily CGA Grade D (industrial/fire) or Grade E (SCUBA).
Understanding the fundamental mechanical and chemical differences between utility air and breathing air is the first step in operational safety. Standard air compressors power pneumatic tools, run heavy machinery, and inflate tires. They are built for raw pneumatic power, not human life support. These utility machines inherently introduce severe contamination risks into the air stream, making them entirely unsuitable for breathing applications without extensive, specialized modifications.
Standard shop compressors operate with significant oil blow-by. The internal pistons require heavy lubrication to prevent friction and overheating. During the compression stroke, microscopic oil aerosols bypass the piston rings and inject directly into the compressed air stream. Inhaling these vaporized hydrocarbons causes severe respiratory damage and lipid pneumonia. Furthermore, standard units lack advanced moisture removal systems. They produce air with high water vapor content, which breeds bacteria inside storage tanks and air lines.
The most immediate danger comes from ambient gas concentration. Compressors do not generate oxygen; they simply pack ambient room air into a tighter space. When ambient air is compressed, any existing toxic gases are concentrated to lethal levels. If a standard compressor draws in a small amount of exhaust fumes from a nearby diesel forklift or a delivery truck idling outside, the concentration of carbon monoxide delivered to the user's mask becomes fatal within minutes.
Breathing air requires a highly engineered, integrated purification sequence. This multi-stage process transforms hazardous ambient air into life-sustaining oxygen. The sequence begins with the mechanical separation of bulk water. As air compresses, it generates extreme heat. When it passes through intercoolers and cools down, the suspended water vapor condenses into liquid. A mechanical separator spins the air, using centrifugal force to throw the liquid water against the walls and drain it away.
Next, the air passes through coalescing filters. These specialized elements capture and remove microscopic oil aerosols and fine solid particulates down to 0.01 microns. The air then enters deep desiccant beds. These chemical beds aggressively strip away the remaining invisible water vapor, lowering the dew point drastically. This extreme drying process is mandatory to prevent moisture from freezing inside breathing regulators when the high-pressure air rapidly expands.
Finally, the air moves through activated carbon and specialized chemical catalysts, most notably Hopcalite. The activated carbon removes hydrocarbon odors and tastes. The Hopcalite catalyst performs a critical chemical reaction, converting lethal carbon monoxide (CO) into safer carbon dioxide (CO2). This final stage acts as the ultimate safety net against ambient exhaust ingestion.
Filtration alone is insufficient for life-support applications because filters eventually saturate and fail. Integrated, real-time carbon monoxide monitors are an absolute necessity. These electronic sensors continuously sample the purified air stream before it reaches the user or the storage cylinder. They must feature automatic fail-safe alarms. If the air quality drops below safe regulatory thresholds, the system must instantly shut down the compressor or mechanically divert the contaminated air away from the breathing lines.
 |  |
Different hazardous environments demand entirely different compressor architectures. Matching the machine's pressure output, volume capacity, and filtration standard to the specific operational context ensures both safety and regulatory compliance.
Municipal fire departments, industrial rescue teams, and hazmat units operate in environments completely devoid of breathable oxygen. They rely on a firefighting SCBA breathing air compressor to fill Self-Contained Breathing Apparatus cylinders. These operations require extreme high-pressure capabilities, typically ranging from 4,500 to 6,000 PSI, to pack enough air into small, wearable carbon-fiber tanks.
The equipment must support rapid fill stations to get first responders back into the field immediately. Because filling cylinders to 6,000 PSI carries a risk of catastrophic tank rupture, these systems utilize heavy steel blast-proof containment cabinets to protect operators during the filling process. Every component, from the compressor block to the fill whips, must adhere to strict NFPA (National Fire Protection Association) standards to ensure absolute reliability during emergency deployments.
Underwater environments present unique life-support challenges driven by depth and temperature. Dive shops, liveaboard vessels, and commercial diving operations utilize a scuba diving breathing air compressor to fill underwater cylinders. These systems operate at pressures between 3,000 and 4,500 PSI.
Diving applications demand the most stringent moisture control of any industry. As high-pressure air flows through a diver's regulator underwater, it rapidly expands and drops in temperature due to the Joule-Thomson effect. If any water vapor remains in the compressed air, it will instantly freeze inside the regulator's first stage. This freeze-up locks the valve open, causing a catastrophic free-flow that drains the diver's air supply in seconds. Therefore, these compressors must consistently meet CGA Grade E or equivalent international diving air standards, which mandate exceptionally low moisture content.
Heavy manufacturing, chemical processing, and municipal utility work often require workers to enter confined spaces like storage tanks, sewers, or ship hulls. Environments involving automotive fabrication, tire production, sandblasting, and industrial spray painting are heavily contaminated. The ambient air is often toxic, dust-filled, or oxygen-deficient.
In these scenarios, operations utilize low-pressure Supplied Air Respirators (SAR) or airline systems rather than heavy wearable tanks. These setups require continuous flow capabilities, delivering uninterrupted air through long hoses to multiple workers simultaneously. They demand strict adherence to OSHA Grade D breathing air standards. The compressors used here are typically rotary screw or oil-less piston models operating between 100 and 150 PSI, paired with large, standalone purifier panels.
Hospitals and specialized clinics use hyperbaric oxygen therapy chambers to treat decompression sickness, carbon monoxide poisoning, and severe wound infections. These environments, along with specific pharmaceutical cleanrooms, require exceptionally pure air. This application demands absolute oil-free compression. Facilities often utilize specialized scroll compressors or water-injected screw compressors. Because these machines introduce zero oil into the compression chamber by design, they eliminate the risk of oil carryover entirely, relying on medical-grade particulate filtration to handle ambient dust.
Selecting the right equipment requires understanding the distinct mechanical differences between high-pressure cylinder filling and low-pressure continuous supply systems. You cannot use a low-pressure SAR compressor to fill a SCUBA tank, and using a high-pressure compressor for direct airline breathing requires specialized pressure-reducing manifolds.
High-pressure systems are engineered to force massive volumes of air into small, portable cylinders. They operate within a pressure range of 3,000 to 6,000+ PSI (approximately 200 to 415+ Bar). The architecture typically relies on multi-stage reciprocating piston compressors. The air is compressed in three to five sequential stages. After each stage, the air passes through coiled intercoolers to manage the extreme heat generated by the compression process.
When evaluating these systems, focus on the fill rate, usually measured in minutes per cylinder or total CFM (Cubic Feet per Minute) output. You must also assess the duty cycle. Smaller units may only run for an hour before needing to cool down, while heavy-duty municipal units feature continuous duty cycles, allowing them to run 24/7 during major emergencies.
Low-pressure systems supply air directly to workers through airline hoses. They operate at a much lower pressure range, typically between 100 to 300 PSI (approximately 7 to 20 Bar). The architecture often features rotary screw compressors for high-volume continuous demand, or oil-less piston compressors for smaller crews.
Evaluation hinges on continuous CFM or L/min (Liters per Minute) output. The system must support multiple simultaneous users without experiencing dangerous pressure drops. OSHA mandates specific CFM requirements per worker depending on the type of mask or hood used. For example, a tight-fitting facepiece requires at least 4 CFM, while a loose-fitting sandblasting hood may require 15 CFM. Sizing the compressor correctly ensures you can safely support all active users performing heavy labor simultaneously.

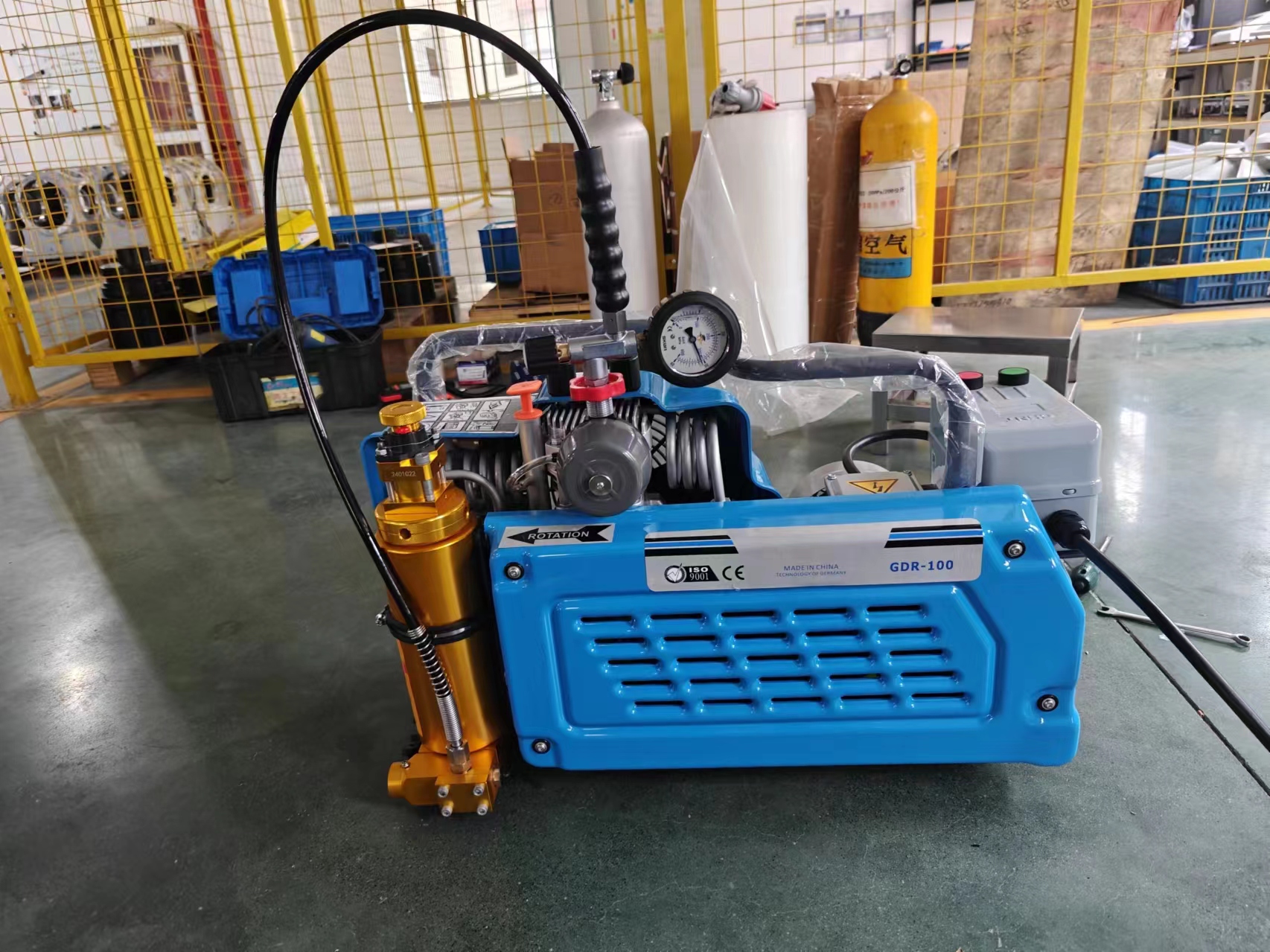

Mobility requirements heavily influence equipment selection. A portable high pressure breathing air compressor offers rapid deployment for field operations, such as mobile dive teams, remote search and rescue, or hazmat response units. These units are compact enough to fit in the back of a pickup truck. However, portable units are inherently limited by lower CFM outputs and shorter duty cycles. They take longer to fill tanks and require more frequent maintenance intervals.
Stationary units offer high-volume, continuous duty but require dedicated facility infrastructure, including reinforced concrete pads, heavy-duty electrical drops, and specialized room ventilation.
Power source selection is equally critical. Electric units are absolutely essential for indoor use to prevent exhaust contamination. Gas or diesel-powered portable units offer excellent off-grid flexibility for remote dive sites or fire scenes. However, they severely complicate intake placement. You must use extended intake hoses and carefully monitor wind direction to avoid drawing the engine's own carbon monoxide exhaust into the breathing air supply.
Procuring life-support equipment requires a rigorous evaluation of air quality standards, output scalability, and integrated safety automation. You must look beyond the basic horsepower rating and examine the specific capabilities of the purification and control systems.
You must define the exact parameters required for your specific application. CGA Grade D is the OSHA requirement for industrial Supplied Air Respirators. CGA Grade E is the stricter requirement for SCUBA diving. Understanding the allowable limits for each standard ensures regulatory compliance and user safety.
Contaminant / Parameter | CGA Grade D (Industrial SAR) | CGA Grade E (SCUBA Diving) |
|---|---|---|
Oxygen Content | 19.5% to 23.5% | 20.0% to 22.0% |
Carbon Monoxide (CO) | ≤ 10 ppm | ≤ 10 ppm |
Carbon Dioxide (CO2) | ≤ 1000 ppm | ≤ 1000 ppm |
Oil Yield (Condensed) | ≤ 5 mg/m³ | ≤ 5 mg/m³ |
Water Vapor | Dew point must be 10°F below ambient | ≤ 67 ppm (Extremely dry to prevent freezing) |
Sizing the system correctly prevents equipment failure and ensures adequate air supply during peak operations. You must calculate the required CFM based on the maximum number of simultaneous users for SAR applications. For SCBA or SCUBA applications, calculate the required daily cylinder turnover rate. If you need to fill fifty 80-cubic-foot tanks a day, a small 3 CFM portable unit will run continuously and burn out, whereas a 15 CFM stationary unit will handle the load easily.
Cascade storage systems play a vital role in scalability. These bulk high-pressure tanks store large volumes of purified air at pressures up to 6,000 PSI. They manage peak demand efficiently, allowing operators to fill wearable cylinders rapidly from the storage banks without forcing the compressor to turn on for every single fill. This drastically reduces wear and tear on the compressor block.
Modern systems incorporate automation to enhance safety and reduce manual oversight. Automatic condensate drains periodically expel accumulated water from the mechanical separators, significantly reducing manual maintenance requirements and preventing water from flooding the chemical filter beds. PLC (Programmable Logic Controller) control panels track operational hours, monitor interstage pressures, and alert operators to upcoming maintenance intervals.
Fail-safe mechanisms are the most critical feature. Integrated gas monitors must do more than just sound a local alarm. In a noisy industrial plant or a chaotic firehouse, an audible alarm might be missed. The monitors must feature automatic fail-safe shutdowns that instantly cut off the air supply or kill the power to the motor if CO levels spike or if system pressure drops dangerously low.
Successful deployment requires strict attention to environmental constraints, rigorous maintenance schedules, and mandatory air quality testing. Installing the best compressor in the wrong location will still result in contaminated air.
Intake placement is the single most critical installation factor. Placing the air intake near vehicle exhaust bays, building ventilation exhausts, or industrial off-gassing areas introduces immediate, life-threatening risks. The intake must be routed to a clean, fresh air source, often requiring elevated PVC piping extending to the roof of the facility. You must also account for prevailing winds that might blow exhaust from a neighboring factory toward your intake.
Furthermore, high-pressure compressors generate extreme heat during operation. Stationary indoor installations require robust HVAC systems and specific spatial clearances to ensure adequate cooling and ventilation. If a compressor is placed in a small, unventilated utility closet, it will rapidly overheat, causing the lubricating oil to break down and the purification cartridges to fail prematurely.
Life-support equipment demands strict adherence to maintenance schedules. Ambient temperature and humidity drastically impact consumable lifespans. High humidity environments rapidly saturate desiccant beds, requiring much more frequent purification cartridge replacements. If you operate in a tropical climate, your filters will last a fraction of the time they would in a dry, arid environment.
Routine mechanical overhauls are mandatory. These include precision valve replacements, tensioning drive belts, and performing oil changes. You must use specialized synthetic, non-toxic lubricants designed specifically for high-pressure breathing air systems. Standard motor oil has a lower flash point and will create dangerous carbon buildup inside the high-pressure cylinders, leading to valve failure or even internal combustion.
Operating these systems carries significant legal and operational responsibilities. Independent, third-party laboratory air quality testing is a strict requirement, typically mandated on a quarterly basis. Operators must capture an air sample using a specialized testing kit and send it to a certified lab to verify compliance with Grade D or Grade E standards.
The lab will analyze the sample for oxygen content, moisture, CO, CO2, and total volatile hydrocarbons. Failing to document maintenance logs and testing schedules introduces severe liability risks. If a worker or diver is injured and your facility cannot produce current, passing air quality certificates, the legal consequences are severe.
A breathable air compressor is not a standard utility tool. It is a highly regulated life-support system requiring precise engineering, strategic installation, and rigorous maintenance. Your equipment choice hinges entirely on the specific application, whether you are filling SCBA cylinders for fire rescue, SCUBA tanks for diving, or supplying continuous air for industrial SAR.
Take the following actionable steps to ensure a safe and compliant installation:
Conduct a comprehensive site audit to determine safe intake placement and evaluate indoor ventilation capacities for heat rejection.
Calculate your peak CFM demand based on maximum simultaneous users or required daily cylinder fills to properly size the compressor block.
Select the appropriate power source based on location, prioritizing electric units for indoor operations to eliminate exhaust risks.
Verify the governing regulatory standard for your specific industry, ensuring the system meets exact CGA, OSHA, or NFPA requirements.
Consult with a specialized breathing air systems engineer to finalize system architecture rather than relying on general industrial compressor vendors.
A: Grade D is the OSHA standard for industrial supplied-air respirators, allowing slightly higher moisture levels depending on ambient temperatures. Grade E is the standard for SCUBA diving. It requires extremely low moisture content to prevent dive regulators from freezing underwater. Both standards strictly limit carbon monoxide, carbon dioxide, and oil particulates.
A: No. Using a standard industrial compressor for breathing air is extremely dangerous and often fatal. They lack the necessary multi-stage purification to remove oil vapor, moisture, and lethal carbon monoxide. They also do not have the integrated gas monitors or fail-safe shutdowns required for human life support.
A: Industry standards generally require quarterly third-party laboratory testing for air quality. However, specific NFPA guidelines, local regulations, or diving certifications may dictate more frequent testing intervals. Always document these tests meticulously to maintain compliance and mitigate liability.
A: Hopcalite is a specialized chemical catalyst used within the final stages of the purification sequence. It chemically converts highly toxic carbon monoxide into safer carbon dioxide. This step is mandatory for ensuring the air remains safe for human respiration, especially if the intake air becomes temporarily compromised.
A: Cascade storage systems consist of bulk high-pressure tanks that store large volumes of purified air. They allow operators to fill SCBA or SCUBA cylinders rapidly during peak demand periods. This prevents the compressor from running continuously and overworking, thereby extending the lifespan of the equipment and ensuring immediate air availability.
A: When the integrated monitor detects carbon monoxide levels exceeding regulatory limits, it triggers an immediate fail-safe protocol. The system will sound a loud local alarm and automatically shut down the compressor or divert the contaminated air away from the fill station. This prevents toxic air from reaching the user.
