The two-stage compression permanent magnet variable frequency screw air compressor is a highly efficient and energy-saving air compressor that adopts two-stage compression technology (air is compressed twice) and a permanent magnet synchronous motor (PM motor), combined with variable frequency speed regulation function, to achieve more stable air pressure output and lower energy consumption.
Technical Parameters
| Two-stage PM VSD Screw Air Compressor | |||||||||
| Model | Air Delivery (m³min) | Power (kW/hp) | Noise dB(A) | Outlet diameter | Dimensions (mm) | Weight (kg) | |||
| 7 bar | 8 bar | 10 bar | 13 bar | L*W*H | |||||
| RK75APMII | 4.1-13.6 | 3.8-12.5 | 3.0-10.1 | 2.3-7.5 | 55175 | 76 | G2 | 2100*1300*1650 | 1300 |
| RK100APMII | 4.8-16.0 | 4.7-15.5 | 3.8-12.8 | 3.1-10.2 | 75/100 | 76 | G2 | 2100*1300*1650 | 1350 |
Product features
1. Higher Air Output at the Same Power Consumption.

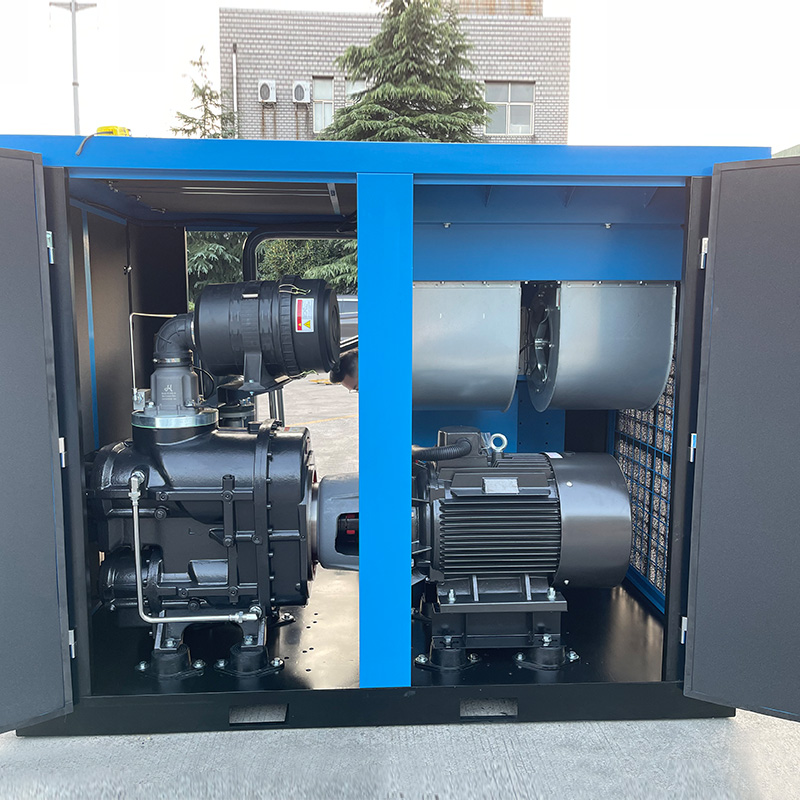

2. Two-Stage Compression Airend: Increases efficiency by an average of 8%, delivering greater air output without additional energy use.
3. IE4 Class Permanent Magnet Motor:Achieves 97% energy efficiency with a service factor of SF1.2–1.35, ensuring reliable, energy-saving performance even in extreme conditions.
4. Superior Oil-Air Separation: Delivers outlet oil content below 2 ppm for cleaner compressed air and reduced maintenance.
5. Low-Noise Centrifugal Fan: Engineered for increased airflow and superior cooling efficiency, significantly reducing thermal stress and prolonging heat exchanger lifespan.
Application Industries
Manufacturing, automotive spraying, welding, assembly line pneumatic tools, tire inflation, precision component cleaning, food and beverage industry, beverage processing, pharmaceutical production, medical equipment, chemical and energy, textile industry, chemical fiber spinning, looms, mining and engineering machinery, mine drilling, tunnel construction, sewage treatment and other industries.
