In PET bottle manufacturing, compressed air is not just a supporting utility. It is one of the core power sources that directly affects bottle forming, production stability, energy consumption, and final product quality. Whether a factory produces water bottles, carbonated beverage bottles, edible oil containers, cosmetic bottles, or pharmaceutical packaging, the bottle blowing process depends on a stable supply of high-pressure compressed air.
A PET Blowing Air Compressor is a specialized air compressor system designed to provide the pressure, air volume, cleanliness, and stability required by PET bottle blow molding machines. Unlike general industrial air compressors used for tools or factory air supply, a PET blowing compressor must handle high-pressure operation, continuous production cycles, and strict air quality requirements.
For bottle manufacturers, choosing the right PET Blowing Air Compressor is not only about buying a compressor. It is about building a complete compressed air system that supports stable bottle forming, reduces defects, and keeps the production line running efficiently.
A PET Blowing Air Compressor is an industrial compressor used to generate high-pressure compressed air for PET bottle blow molding. PET, or polyethylene terephthalate, is widely used for beverage bottles, food containers, cosmetic packaging, and many other plastic packaging products.
During bottle production, PET preforms are heated and then placed into a mold. High-pressure compressed air is injected into the preform, forcing it to expand and take the shape of the mold. This is the key step that transforms a small preform into a finished bottle.
Because this process requires strong, clean, and stable air pressure, a normal low-pressure factory air compressor is usually not enough. PET bottle blowing often requires medium to high pressure air, commonly around 30–40 bar depending on bottle size, machine type, mold design, and production speed.
PET bottle blowing is different from many other compressed air applications. In ordinary factories, compressed air may be used for pneumatic tools, valves, cylinders, cleaning, or general automation. These applications usually operate at lower pressure.
PET blowing is more demanding. The compressor must deliver enough pressure to stretch the heated preform evenly inside the mold. If the pressure is too low or unstable, the bottle may not form correctly. If the air is contaminated with oil or excessive moisture, it may affect bottle quality, mold life, and production hygiene.
A PET Blowing Air Compressor is therefore designed around several key requirements: high pressure, large air flow, stable output, clean air, dry air, and continuous operation.
 |  |  |
A PET Blowing Air Compressor works by compressing atmospheric air to a much higher pressure and delivering it to the bottle blowing machine. The working process can be understood in several stages.
The compressor first draws ambient air through an intake filter. This filter helps remove dust and large particles before the air enters the compression chamber. Good intake filtration is important because PET bottle blowing systems often run continuously, and dirty air can increase wear inside the compressor.
After intake, the air is compressed by the compressor mechanism. Depending on the equipment type, this may be done by piston compression, oil-free screw compression, or other high-pressure compression technology.
For PET bottle blowing, piston air compressors are commonly used for high-pressure applications because they can generate pressures such as 30 bar or 40 bar. Oil-free piston compressors are often selected when clean air is important for beverage, food, and packaging production.
In some modern systems, oil-free water-lubricated screw compressors or two-stage oil-free screw compressors may also be used to support high-pressure bottle blowing applications. These solutions can provide oil-free air, stable performance, and improved energy efficiency for continuous production lines.
Compressing air creates heat. If the compressed air is not cooled properly, high temperature can affect system performance, downstream equipment, and air treatment efficiency. PET blowing compressor systems may use air cooling or water cooling depending on compressor size, pressure level, installation environment, and operating conditions.
Cooling is especially important for 24/7 production plants. Stable temperature control helps maintain compressor reliability and reduces unnecessary downtime.
After compression, the air normally passes through air treatment equipment. This may include an air dryer, precision filter, oil-water separator, and air tank. The purpose is to remove moisture, particles, and other unwanted impurities from the compressed air.
Dry and clean air is important in PET bottle production. Excessive moisture can cause condensation in pipelines, affect mold temperature control, or create quality issues in the final bottle. Oil contamination is also a major concern, especially for food, beverage, and pharmaceutical packaging.

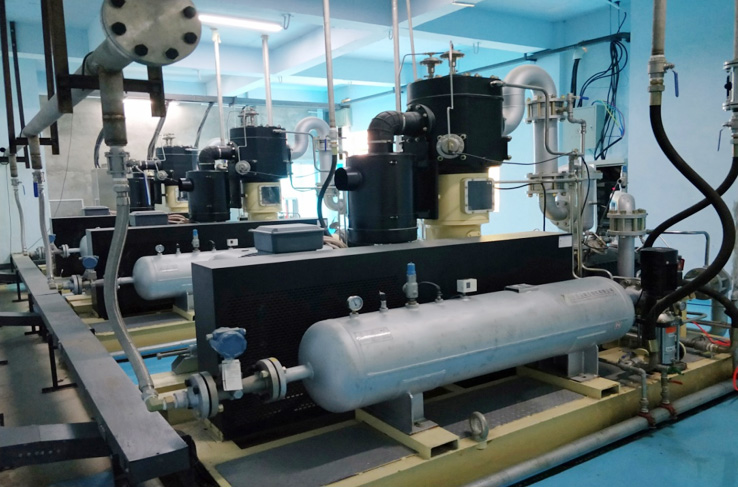

The compressed air is stored in an air tank before being supplied to the bottle blowing machine. The air tank helps stabilize pressure, reduce pulsation, and provide buffer capacity during high-demand blowing cycles.
Bottle blowing machines do not consume air at a perfectly steady rate. Air demand rises sharply during the blowing action. Without enough storage and pressure stability, the system may experience pressure drops, which can lead to inconsistent bottle forming.
Finally, the compressed air is delivered to the PET blow molding machine. The air enters the heated preform and expands it against the mold wall. This process determines the final bottle shape, wall thickness, strength, transparency, and dimensional consistency.
A PET bottle production line often uses both high-pressure air and low-pressure air.
High-pressure air is used for the actual blowing process. This is the air that expands the heated PET preform inside the mold. For many PET blowing applications, the required pressure is in the range of 30–40 bar. Some applications may require different pressure levels depending on bottle volume, wall thickness, material weight, and machine design.
High pressure must remain stable during production. If pressure fluctuates too much, the bottle may have uneven wall thickness, poor shape accuracy, weak areas, or inconsistent volume.
Low-pressure air is also used in the same production line for machine movement, pneumatic valves, pre-blowing, conveying, and control functions. This air may come from a separate low-pressure screw air compressor.
For an efficient PET bottle factory, it is often better to separate high-pressure blowing air from low-pressure working air. This helps reduce energy waste and allows each compressor to operate under the correct pressure range.
Air quality directly affects PET bottle quality. A PET Blowing Air Compressor should not only provide pressure. It should also support clean and dry compressed air.
For beverage, food, cosmetic, and pharmaceutical packaging, oil contamination is a serious issue. If oil particles enter the compressed air stream, they may contaminate the bottle, affect product safety, or create odor and quality problems.
This is why oil-free air compressors are often recommended for PET bottle blowing. Oil-free piston compressors and oil-free screw compressors are designed to reduce or eliminate oil contamination risk in the compressed air.
Moisture in compressed air can create several problems. It may condense in pipes, affect valves, reduce mold stability, and increase corrosion in the air system. In some cases, moisture can also affect bottle appearance or production consistency.
An air dryer is therefore an important part of the PET blowing air compressor system. Depending on the factory’s air quality requirements, a refrigerated air dryer or desiccant air dryer may be used.
Precision filters help remove particles, residual oil aerosols, and other impurities from compressed air. In PET bottle production, filtration is not only about protecting the compressor. It also protects the blowing machine, molds, valves, and final packaging quality.
A complete PET blowing compressed air system is usually made up of several parts.
This is the core machine that generates high-pressure air. It may be an oil-free piston air compressor, oil-free screw compressor, or another high-pressure compressor designed for bottle blowing.
The air dryer removes moisture from the compressed air. It helps prevent condensation and supports stable production.
Filters remove impurities from the compressed air before it reaches the bottle blowing machine. For clean packaging production, this is a necessary part of the system.
The air tank stores compressed air and stabilizes pressure. It helps the system respond to sudden air demand during blowing cycles.
A modern compressor control system can adjust output, monitor operating status, and improve energy efficiency. Some compressor systems use VFD control or half-load operation to reduce power consumption when full capacity is not required.
 |  |  |
Choosing the wrong compressor can create multiple production problems.
If air pressure is unstable, bottle wall thickness may become uneven. Bottles may deform, fail pressure tests, or show inconsistent appearance.
Using an oversized, outdated, or poorly matched compressor can waste energy. Since compressed air is one of the major energy users in PET bottle plants, compressor efficiency has a direct impact on production cost.
A compressor not designed for continuous high-pressure operation may overheat, wear quickly, or require frequent maintenance. This can stop the bottle blowing line and increase operating costs.
If the compressor or air treatment system cannot provide clean air, the bottle may be exposed to oil, moisture, or particles. This is especially risky for food and beverage packaging.
Rocky Compressor provides air compressor solutions for PET bottle blowing applications, including high-pressure oil-free PET blowing compressors and supporting compressed air treatment equipment. According to Rocky’s product information, its PET bottle blowing compressor options include oil-free designs, 30–40 bar medium/high pressure capability, up to 40 bar operation, VFD and half-load mode integration, and 24/7 continuous performance for bottle blowing lines.
For PET bottle manufacturers, Rocky does not only focus on a single compressor unit. The company’s product range also includes oil-free air compressors, piston air compressors, high-pressure compressors, refrigerated air dryers, desiccant air dryers, precision filters, air tanks, oil-water separators, and related compressed air accessories. This allows Rocky to support a more complete compressed air system for PET bottle production rather than only supplying the main compressor.
Rocky’s PET blowing compressor solutions are designed around the real operating needs of bottle production lines. Key product directions include clean oil-free air, high-pressure output for blow molding, continuous operation, lower maintenance cost, and energy-saving control options.
For factories producing beverage bottles, water bottles, edible oil bottles, or other PET packaging, these features are important because the compressor must support both production quality and operating economy. A stable compressor system helps reduce bottle defects, improve forming consistency, and support long-term production reliability.
A PET bottle blowing line should be matched as a system. The compressor, air dryer, filter, tank, pipeline, and control logic must work together. If one part of the system is poorly selected, the entire line may suffer from pressure loss, moisture issues, unstable output, or energy waste.
Rocky can provide product options for both the main compression equipment and downstream air treatment system. This is useful for customers who want a more integrated solution for PET bottle blowing instead of sourcing each component separately.
When selecting a PET Blowing Air Compressor, buyers should consider more than the compressor price.
The first step is to confirm the pressure requirement of the bottle blowing machine. Many PET bottle blowing applications require 30–40 bar, but the exact value depends on bottle design and equipment specifications.
Air flow must match the production capacity of the blowing machine. A small compressor may cause pressure drops, while an oversized compressor may waste energy. Buyers should consider bottle volume, cavities, output per hour, and blowing cycle time.
For food, beverage, cosmetic, and pharmaceutical packaging, oil-free compressed air is usually the safer choice. It helps reduce contamination risk and supports higher production hygiene.
A compressor alone is not enough. Air dryers, filters, and air tanks should be included in the system design. These components help ensure dry, clean, and stable air supply.
Compressed air can represent a significant share of factory energy cost. VFD control, correct sizing, heat management, and proper pressure design can all help reduce operating cost.
PET bottle production often runs continuously. The compressor should be easy to maintain, and the supplier should provide technical support, spare parts, and system guidance.
A PET Blowing Air Compressor is a specialized high-pressure compressed air system used to form PET bottles from heated preforms. It provides the air pressure needed to expand the preform inside the mold and directly affects bottle quality, production stability, energy consumption, and operating cost.
The best PET blowing compressor system should provide stable high-pressure air, clean oil-free output, dry air quality, sufficient flow, and reliable continuous operation. It should also be matched with the correct air dryer, precision filter, air tank, and control system.
For PET bottle manufacturers, choosing the right compressor is not only a technical decision. It is also a production efficiency decision. A properly designed air compressor system can reduce defects, protect equipment, lower energy costs, and support stable long-term bottle production.
Rocky Compressor offers PET bottle blowing air compressor solutions and related air treatment equipment for customers who need reliable, clean, and efficient compressed air systems. For factories planning a new PET bottle production line or upgrading an existing blow molding system, choosing a suitable PET Blowing Air Compressor is an important step toward more stable and cost-effective production.
