In the current industrial landscape, rising energy costs and stringent environmental regulations are forcing plant managers to rethink their air supply systems. Traditional lobe-type blowers (roots blowers) are no longer the gold standard. Enter the Oil-Free Screw Blower—a technologically advanced solution offering unmatched efficiency, reliability, and pure, contaminant-free air.
Whether you operate a municipal wastewater treatment plant (WWTP), a cement factory, or a pneumatic conveying system, upgrading to an oil-free screw blower directly impacts your bottom line.

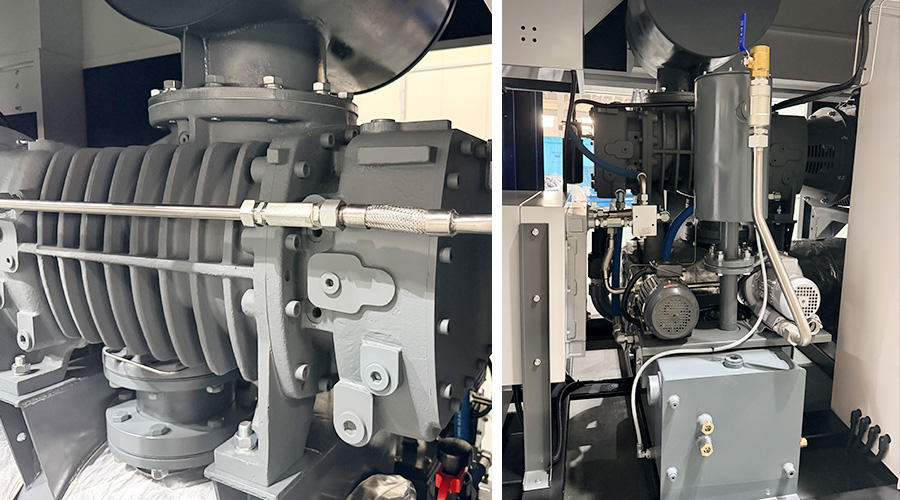

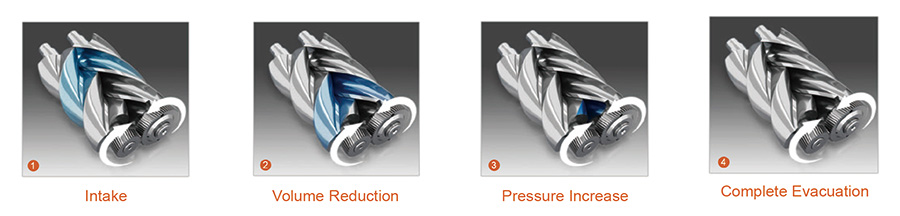

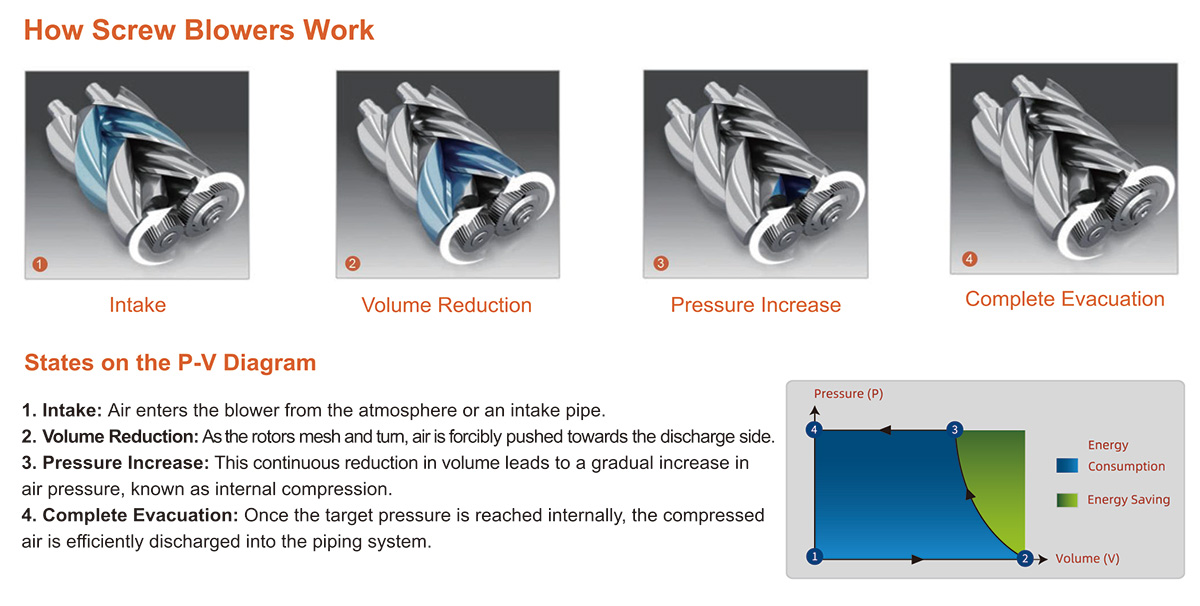

Unlike traditional lobe blowers that simply trap and push air (external compression), the oil-free screw blower utilizes internal compression. Two intermeshing helical rotors rotate in opposite directions within a precision-machined housing. As the rotors turn, the air trapped between the lobes and the casing is progressively compressed before being discharged through the outlet port.
This internal compression mechanism eliminates the energy-wasting "over-compression" and "under-compression" common in lobe blowers, resulting in significantly higher volumetric efficiency across the entire operating range.
•Lower Energy Consumption (30–35% Savings): Unlike traditional rotary lobe blowers, the internal compression mechanism of a screw blower drastically reduces energy loss. For a 24/7 operation, this translates into thousands of dollars saved annually on electricity bills.
•100% Oil-Free Air (Class 0 Certified): Eliminates the risk of oil carryover into your process. This is critical for applications sensitive to contamination, such as food processing, pharmaceuticals, and textile manufacturing.
•Wide Flow & Pressure Range: With stable performance across varying pressures and flow rates (coupled with VFD control), these blowers easily adapt to fluctuating process demands without surging or stalling.
•Low Noise Operation (≤85 dB): The helical screw rotors and anti-surge design significantly reduce vibration and noise, creating a safer and more comfortable working environment for your operators.
•Reduced Maintenance Costs: With fewer wearing parts and no need for oil changes or complex oil separation systems, routine maintenance is limited to simple filter and bearing checks.
Customer Pain Point | Our Solution |
"My electricity bill is killing my profit margin." | Internal compression reduces wasted energy; achieve 30–35% energy savings instantly. |
"My current blowers are too loud for the neighborhood." | Low-noise enclosures and helical screw technology keep operating noise below 85 dB. |
"We are failing environmental audits due to oil mist." | 100% oil-free mechanism ensures zero contamination and full compliance with EPA/ISO 14001. |
"Our air demand fluctuates; we are wasting air." | Integrated VFD (Variable Frequency Drive) adjusts motor speed to match exact air demand in real-time. |
•Municipal & Industrial Wastewater Treatment: Diffused aeration in biological reactors.
•Pneumatic Conveying: Transferring cement, flour, powder, and granular materials.
•Food & Beverage: Aeration for fermentation, drying, and product conveying.
•Textile & Fiber: Spinning, weaving, and loom cleaning.
•Electronics: PCB board drying and substrate conveying.
Feature | Traditional Lobe Blower | Oil-Free Screw Blower |
Compression Type | External (no internal compression) | Internal (progressive compression) |
Energy Efficiency | Baseline (100%) | 30–35% more efficient |
Air Purity | Oil-free but pulsating | 100% oil-free, ISO Class 0, smooth flow |
Noise Level | 90–100 dB (very loud) | ≤85 dB (quiet) |
Maintenance Frequency | Frequent (belt changes, oil changes) | Minimal (filters & bearings only) |
Flow Turndown Ratio | Limited (narrow) | Wide (with VFD) |
Total Cost of Ownership | High (over 10 years) | Low (over 10 years) |
Q1: What is the pressure range for these blowers?
A1: Typically, oil-free screw blowers operate efficiently in the range of 0.3 to 1.5 Bar (g). For higher pressures, different compressor configurations are recommended.
Q2: How do I calculate my energy savings?
A2: Compare your current lobe blower's power draw (kW) to our screw blower at the same flow (Nm³/h). Due to internal compression, a 75kW motor on a screw blower often delivers the same output as a 100kW motor on a lobe blower.
Q3: Is a dedicated cooling system required?
A3: Depending on your ambient temperature and operating pressure, we offer both air-cooled and water-cooled designs. Air-cooled is generally preferred for smaller capacities, while water-cooled is selected for high-pressure, high-temperature environments.
Q4: Can I get it with a VFD?
A4: Yes. We strongly recommend the VFD package for users with variable flow demands to maximize energy efficiency.
