A PM VSD air compressor is a compressed air system that combines two advanced technologies: a Permanent Magnet (PM) motor and a Variable Speed Drive (VSD).
The Permanent Magnet motor uses embedded rare-earth magnets in the rotor, eliminating the need for excitation current. The Variable Speed Drive is an electronic controller that adjusts the motor's speed in real time to match actual air demand.
Here's how it works in simple terms: Instead of running at a fixed speed and wasting energy when demand drops, a PM VSD compressor continuously monitors your system's air pressure and automatically speeds up or slows down the motor to produce exactly the amount of compressed air you need at any given moment.
The result? Precise pressure control, dramatically lower energy consumption, and a significantly reduced total cost of ownership.
If you're in the market for an industrial air compressor, you've likely experienced—or are worried about—one or more of these common frustrations:
❌ "My electricity bills are killing my profit margins."
This is the #1 complaint among compressor buyers—and for good reason. Energy costs now account for up to 91% of a compressor's total cost of ownership. In many plants, energy makes up 70–80% of lifetime costs, dwarfing the initial purchase price. The purchase price of an industrial air compressor makes up only about 20% of its lifecycle costs, while energy expenses take the lion's share.
❌ "My compressor keeps cycling on and off—it's noisy and wastes energy."
Traditional fixed-speed compressors operate on a "load-unload" cycle: they run at full speed until the system reaches maximum pressure, then shut off (unload) until pressure drops, then start up again. This constant stop-start not only wastes energy—the motor still consumes 30% to 50% of rated power during unloaded operation—but also puts tremendous stress on mechanical components.
❌ "My production lines have fluctuating air demand, and my compressor can't keep up."
If your air demand varies throughout the day—and for most factories, it does—a fixed-speed compressor is inherently inefficient. It cannot adjust its output to match your needs. You end up either over-pressurizing the system (wasting energy) or under-supplying your production lines (hurting productivity).
❌ "Maintenance and repairs are eating me alive."
Between bearing wear, gearbox issues, coupling failures, and frequent overhauls, traditional compressors come with significant maintenance costs—typically 10–15% of total ownership costs. Major overhauls are often needed every 5–8 years, each costing up to 60% of the original purchase price.
❌ "My compressor is too loud for my workshop environment."
Fixed-speed compressors often produce high noise levels—around 75–85 decibels—especially under certain operating conditions. In enclosed workshop environments, this creates an unpleasant and potentially unsafe work atmosphere.
Now let's break down exactly how these two technologies compare across the metrics that matter most to your bottom line.
Aspect | Fixed-Speed (Power Frequency) | PM VSD (Permanent Magnet Variable Speed) |
|---|---|---|
Motor Type | Asynchronous induction motor | Permanent magnet synchronous motor (PMSM) |
Speed Control | Fixed (50/60 Hz) – no adjustment | Stepless via VFD – matches demand in real time |
Operation Mode | Load‑unload cycling (full speed then idle) | Continuous modulation – output follows consumption |
Response Time | Slow (mechanical start/stop) | Fast (<50 ms) |
Efficiency (Full Load) | Moderate | ≥96% across 25–120% load range |
Efficiency (Partial Load) | Drops significantly (~30% energy wasted) | Remains high – consistent efficiency at lower speeds |
Energy Savings vs Fixed | Baseline | 30–50% less electricity consumption |
Starting Current | 5–7 × rated current (high surge) | ≤1.2 × rated current (soft start) |
Power Factor | 0.80–0.85 (reactive losses) | ≥0.95 (near unity) |
Pressure Fluctuation | Wide – up to ±0.2 MPa | Tight – within ±0.01 MPa |
Pressure Control | Mechanical on/off | PID closed‑loop vector control |
Noise Level | 75–85 dB | 60–70 dB (at low speed) |
Vibration | Higher (resonance possible) | Lower (smoother operation) |
Maintenance Cost | Higher (gears, couplings, bearings) | ~30% lower (direct drive, fewer wear parts) |
Service Life | Standard (overhaul every 5–8 years) | 100,000+ hours (extended intervals) |
Initial Investment | Lower purchase price | Higher upfront cost, but rapid payback (1–2 years) via energy savings |
Independent testing and field data consistently show that PM VSD compressors deliver 30–50% energy savings compared to fixed-speed equivalents. For PM VSD units specifically, total energy reductions of 40–50% compared to older fixed-speed installations are achievable.
Here's a real example: On a standard 75kW installation operating 6,000 hours per year at 70% average load, upgrading from an IE3 fixed-speed compressor to an IE4 PM VSD compressor yields approximately $20,520 in annual electricity savings. The payback period can be as short as 3 months.
Every 1 bar of unnecessary pressure increases energy consumption by 7%. PM VSD compressors maintain stable pressure automatically, allowing you to lower system pressure—which alone saves significant energy.
PM VSD compressors are widely used across industries where air demand fluctuates and energy efficiency is critical. Common applications include:
Automotive Manufacturing: Painting lines, pneumatic assembly, robotic operations
Electronics & Semiconductor: Pick-and-place robotics, precision assembly, cleanroom air
Food & Beverage Processing: Packaging, bottling, pneumatic conveying, clean air requirements
Pharmaceutical: Sterile air, process control, contamination-free production
Textile Manufacturing: Weaving, spinning, air-jet looms
Chemical Industry: Process air, material handling, fermentation
Medical Industry: Hospital air systems, laboratory equipment
Metal Smelting & Machinery: Pneumatic tools, grinding, cleaning, spraying
Laser Cutting: Precision cutting, assist gas
Automobile Maintenance: Tire inflation, pneumatic tools, painting

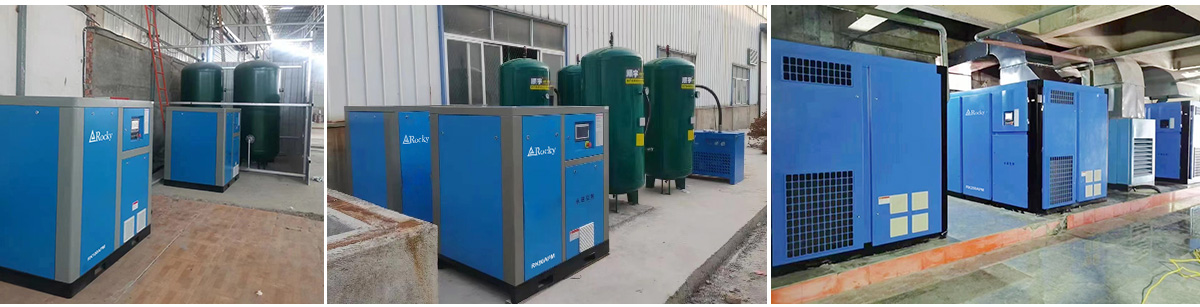

A metal processing and machinery factory in Indonesia upgraded its compressed air system with four ARocky 37kW PM VSD screw air compressors, paired with dryers and receiver tanks. The facility uses compressed air for pneumatic tools, grinding, cleaning, and spray painting—operations that demand stable, clean air and consistent pressure.
The Challenge
The customer's old fixed-speed compressors wasted energy during fluctuating demand, caused pressure instability that affected product quality, and incurred high maintenance costs. Noise levels were also a concern for the workshop environment.
The Solution
The ARocky PM VSD compressors were chosen for their VFD-controlled permanent magnet motors, which adjust speed to match real-time air demand—eliminating load/unload energy waste. The intelligent PID control maintains pressure within ±0.01 MPa, while the IP54-rated motors perform reliably in dusty workshop conditions.
The Results
Operating 8,000 hours per year, the four units delivered 35% energy savings compared to the previous fixed-speed compressors. The annual electricity savings alone covered the full equipment investment within 18 months. The customer also reported improved production stability, reduced maintenance costs, and quieter operation—noise levels dropped below 65 dB(A).
"The energy savings are remarkable, and our production quality has never been more consistent. This investment paid for itself faster than we expected."
This case demonstrates how ARocky PM VSD technology delivers rapid ROI, lower operating costs, and enhanced production reliability for Indonesian manufacturers.
PM VSD compressors deliver high efficiency by matching air output to real demand. The permanent magnet motor reduces energy loss, while variable speed control minimizes unloading waste. Producing 1 cubic meter of compressed air, a PM VSD compressor saves over 30% electricity compared to a fixed-speed asynchronous machine. Current mainstream PM VSD compressors achieve specific power as low as 5.8–6.5 kW/(m³/min) at 0.7MPa—over 15% lower than the traditional fixed-speed first-level energy efficiency requirement of 7.2 kW/(m³/min).
Traditional fixed-speed compressors run at full speed regardless of air demand. When demand drops, they enter an unload state, still consuming 30–40% of full-load power while producing zero air. PM VSD technology eliminates this waste. If your production line slows down, the compressor slows down.
PM VSD compressors maintain stable pressure within ±0.01 MPa. This precision prevents pressure drops that can ruin production quality—especially critical in applications like automotive painting, electronics manufacturing, and food processing.
PM VSD compressors feature soft start capability with starting current of only 1.2× rated current versus 5–7× for fixed-speed units. This protects your electrical infrastructure and reduces demand charges from your utility provider.
PM VSD compressors run more smoothly and quietly—often below 65 dB(A). They eliminate multiple noise sources: no gear meshing noise, no coupling drive noise, and reduced bearing noise. This makes them ideal for noise-sensitive environments like workshops adjacent to offices or residential areas.

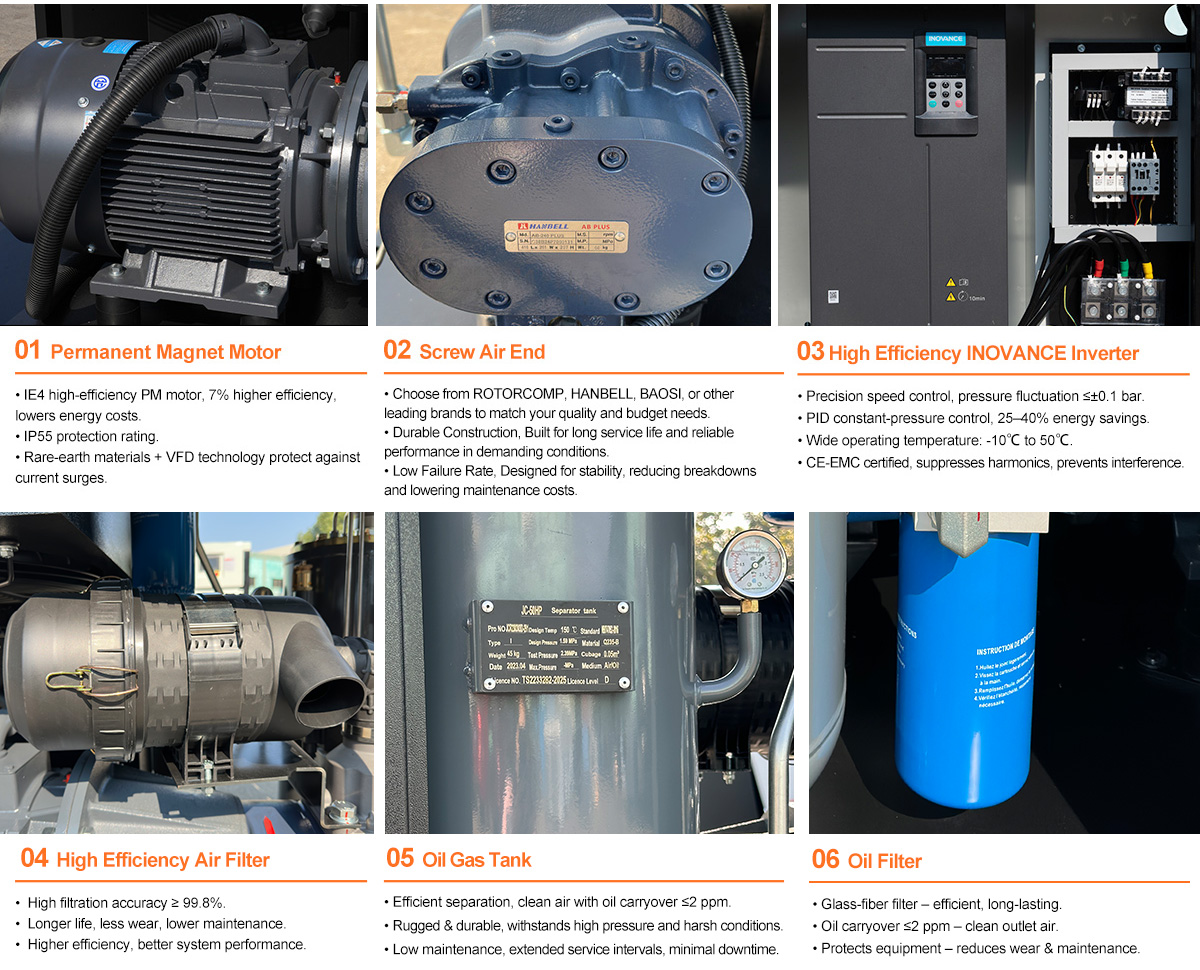

PM VSD technology features coaxial transmission (direct drive) with no gears and no coupling, reducing friction and the number of parts subject to wear. The permanent magnet motor has no excitation windings, eliminating common failure points. The result: fewer breakdowns, lower maintenance costs, and longer equipment life.
While the initial investment is higher, the payback is fast. For most facilities with variable air demand, the higher upfront investment is recovered within 1–3 years through energy savings alone. On a 75kW unit, annual savings can exceed $20,000.
Choose a PM VSD Compressor If:
✅ Your air demand fluctuates significantly throughout the day
✅ You operate 24/7 or have long running hours
✅ Your electricity costs are high (and they probably are)
✅ You need precise, stable pressure control (±0.01 MPa)
✅ You want to minimize noise in your workspace
✅ You're looking to reduce maintenance costs and downtime
✅ You're planning for long-term ownership (5+ years)
Choose a Fixed-Speed Compressor If:
✅ Your air demand is stable and constant
✅ You have a very limited budget for initial purchase
✅ Your operating hours are short (intermittent use)
✅ You don't have fluctuating air demand
✅ You're running a small workshop or short-term project
Pro Tip: Some facilities use a hybrid approach—one PM VSD compressor to handle base and fluctuating loads, plus a fixed-speed unit for backup or peak demand.
Q1: What is a PM VSD screw air compressor?
A PM VSD screw air compressor is an advanced type of air compressor that combines a Variable Speed Drive (VSD) with a permanent magnet motor and screw compressor technology. It uses the VSD to precisely control motor speed to match real-time air demand, resulting in significant energy savings.
Q2: How does a PM VSD screw air compressor work?
The compressor adjusts its motor speed in real time to match varying air demand. When demand is low, the motor runs at a lower speed, reducing energy consumption. When demand increases, the motor speeds up to meet it efficiently. A Variable Frequency Drive (VFD) is hooked up to the motor to control its speed.
Q3: How much energy can a PM VSD compressor actually save?
Typically, it can reduce energy consumption by 30–50% compared to a fixed-speed unit. The savings come from eliminating unloaded run time and maintaining optimal pressure without wasteful over-pressurization.
Q4: Is the higher initial cost of a PM VSD compressor worth it?
Yes. For most facilities with variable air demand, the higher upfront investment is usually recovered within 1–3 years through dramatic energy savings and reduced maintenance costs, leading to a much lower total cost of ownership over its lifespan.
Q5: What maintenance does a PM VSD screw compressor require?
It requires standard maintenance like oil, filter, and separator changes. However, the VSD technology reduces mechanical stress and cycling, often extending component life and resulting in lower long-term maintenance costs compared to fixed-speed models.
Q6: Are these compressors suitable for harsh or dusty environments?
Yes. Many PM VSD compressor models are built with robust enclosures (IP55 or IP65 rated) and efficient cooling systems designed to perform reliably in demanding industrial environments like workshops and manufacturing plants.
Q7: Is a PM VSD compressor quiet to operate?
Yes. One of its key advantages is significantly lower noise levels. Since the motor only runs as fast as needed, operation is quieter—often below 65 dB(A)—creating a better working environment and reducing noise pollution.
A PM VSD air compressor represents the most advanced, energy-efficient compressed air technology available today. By combining a high-efficiency permanent magnet motor with intelligent variable speed control, it delivers:
30–50% energy savings compared to fixed-speed compressors
Precise pressure control within ±0.01 MPa
Smooth soft-start with minimal grid impact
Lower noise levels (60–70 dB)
Reduced maintenance costs (~30% less)
Longer service life (100,000+ hours)
Rapid payback—often within 1–2 years
While the initial investment is higher, the long-term savings in energy and maintenance make PM VSD compressors the clear winner for most industrial applications—especially if your air demand fluctuates, you operate long hours, or you're serious about reducing your energy footprint.
If you're considering upgrading your compressed air system or need help sizing the right PM VSD compressor for your specific application, we're here to help.
Request a quote with your specific pressure and flow requirements
Download our technical specifications for detailed performance data
We'll help you calculate your potential savings and find the perfect match for your operation.
