In industrial production and environmental protection, blowers are one of the most critical pieces of equipment. From aeration systems in wastewater treatment to pneumatic conveying in food production lines, from cleanrooms in electronics manufacturing to process air supply in chemical plants – blower performance directly affects production efficiency, product quality, and operating costs.
In recent years, oil‑free screw blowers have been rapidly replacing traditional Roots blowers, thanks to their outstanding advantages in energy efficiency, 100% oil‑free clean air delivery, low noise, and more. The global oil‑free screw blower market is showing sustained growth, with global market size reaching US$622 million in 2025** and projected to grow to **US$846 million by 2032, at a compound annual growth rate (CAGR) of 4.5%.
This article provides a comprehensive analysis of the technology, core benefits, applications, and comparison with conventional blowers.
An oil‑free screw blower is a positive displacement blower that uses a pair of intermeshing male and female screw rotors (twin‑screw rotors) rotating in opposite directions within a cylinder to continuously suck in, compress, and discharge gas.
Its core working principle is “internal compression”: gas is drawn in from the inlet, and as the screw rotors rotate, the compression chamber volume gradually decreases, compressing the gas internally before it is discharged from the outlet.
Unlike ordinary screw compressors, no lubricating oil is injected into the compression chamber of an oil‑free screw blower. The compression process is completed without oil lubrication, ensuring 100% oil‑free output air.
An oil‑free screw blower typically consists of a casing, airend, motor, air filter, silencer, oil pump/oil tank, and oil filter. The whole unit is usually designed as an integrated, compact package for easy installation.

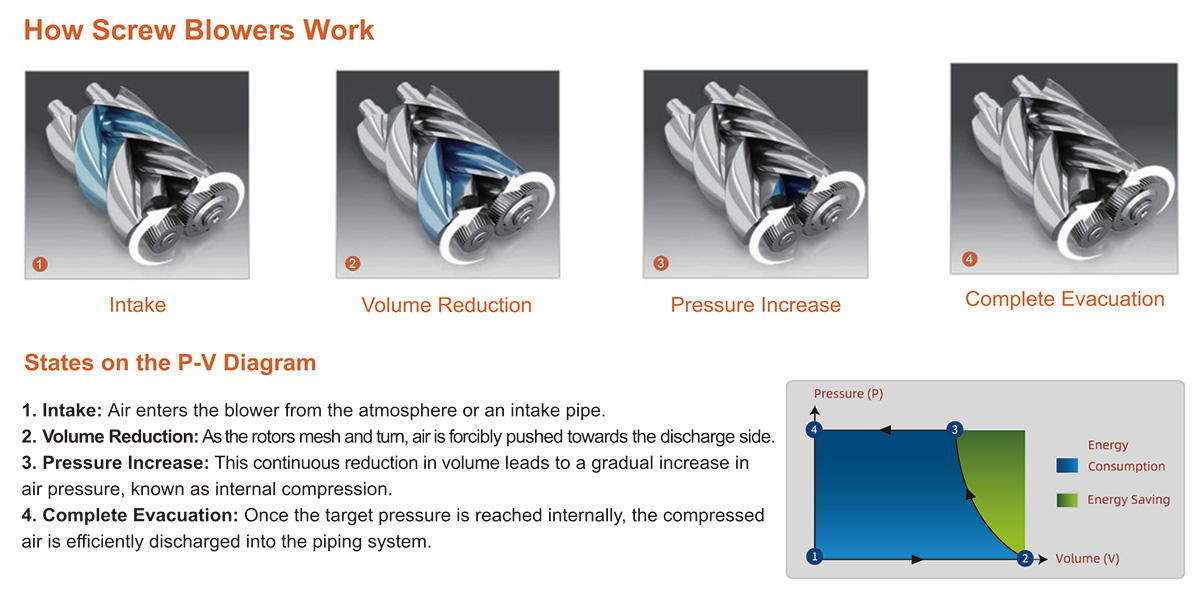

2.Working Principle of Oil‑Free Screw Blowers
An oil‑free screw blower is a positive displacement rotary blower that operates on the principle of internal compression. It consists of two parallel, intermeshing screw rotors – one male (convex) and one female (concave) – mounted inside a cylindrical housing. These rotors rotate in opposite directions, driven by a synchronous gear train that maintains precise timing and prevents metal‑to‑metal contact.
The compression process follows four continuous stages:
Air intake – As the rotors turn, the spaces between the rotor flutes and the housing open to the inlet port, drawing in ambient air at atmospheric pressure.
Trapping the air – Further rotation closes the inlet port, trapping a fixed volume of air in the chambers formed by the rotor grooves and the housing wall.
Internal compression – As the rotors continue to rotate, the trapped volume progressively decreases because the male rotor lobes move into the female rotor spaces and the housing shape gradually reduces the chamber size. This gradual volume reduction compresses the air internally to the desired discharge pressure – without the abrupt pressure rise typical of external‑compression blowers.
Discharge – When the compressed air reaches the outlet port, it is pushed out against the system backpressure, completing the cycle.
Outstanding Energy Savings
Oil‑free screw blowers save 15%–35% energy compared to traditional Roots blowers – this is their most remarkable benefit.
The fundamental reason lies in the “internal compression” working principle. Roots blowers use “external compression” – gas is transferred from inlet to outlet without being compressed internally, and compression occurs abruptly at the discharge port due to backpressure, consuming more energy. In contrast, oil‑free screw blowers complete gradual compression inside the rotor chamber, achieving higher energy efficiency.
Furthermore, models equipped with permanent magnet synchronous motors and Variable Speed Drive (VSD) technology deliver even higher efficiency. Units with first‑class energy‑efficiency permanent magnet motors are 5%–8% more efficient than equivalent induction motors. VSD technology intelligently adjusts output according to actual air demand, providing air on demand and significantly reducing overall energy consumption.
100% Oil‑Free Clean Air
The compression chamber of an oil‑free screw blower uses absolutely no lubricating oil. The rotors operate without contact through precise clearances, eliminating the need for oil lubrication or sealing.
This means the compressed air is 100% oil‑free and meets ISO 8573‑1 Class 0 – the highest oil‑free air quality certification. Class 0 means no contamination risk, no product damage or safety hazards, and no losses from unexpected downtime.
For industries with stringent air quality requirements – such as food, pharmaceuticals, and electronics – this feature is critical, completely eliminating product rejects, quality incidents, and brand reputation damage caused by oil contamination.
Stable and Reliable – No Surge
Oil‑free screw blowers are constant‑flow blowers: within their performance envelope, pressure can adjust to system resistance, but flow rate remains virtually unchanged.
This characteristic is especially important in pneumatic conveying applications. When feed material fluctuates, conventional blowers may reduce air volume due to pressure changes, causing pipeline blockages. Oil‑free screw blowers maintain sufficient flow and pressure even during feed fluctuations, ensuring normal system operation and preventing blockages.
Additionally, oil‑free screw blowers do not suffer from surge, ensuring smooth and reliable operation.
Low Noise and Low Vibration
The compression process of oil‑free screw blowers is continuous and gradual, resulting in lower airflow pulsation, lower discharge noise, and lower vibration than Roots blowers.
Overall noise levels are typically kept below 75–80 dB(A), with some high‑end models even below 75 dB(A). The integrated cabinet design, combined with specially designed intake and exhaust silencers, further reduces operating noise.
The low‑noise, low‑vibration characteristics improve operator working conditions and reduce vibration impact on surrounding equipment.
Simple Maintenance and Long Service Life
Oil‑free screw blowers have fewer wearing parts, fewer consumables, and lower maintenance costs.
Since the compression chamber operates without oil, there is no need for regular replacement of lubricating oil, oil filters, or oil separators. Main maintenance is limited to cleaning or replacing air filters. Moreover, the non‑contact rotor operation means no mechanical wear, significantly extending equipment service life.
Wide Application Range and Strong Adaptability
Oil‑free screw blowers offer a wide discharge pressure range, typically between 0.3–1.5 bar, with some models reaching a maximum pressure increase of up to 0.2 MPa (about 2 bar). Whether for low‑pressure aeration or medium‑pressure pneumatic conveying, there is a suitable model available.
4. Oil‑Free Screw Blower vs. Roots Blower: At a Glance
Aspect | Oil‑Free Screw Blower | Roots Blower |
Compression method | Internal compression (gas compressed inside rotors) | External compression (abrupt compression at discharge due to backpressure) |
Energy efficiency | 15%–35% energy saving | Baseline (higher energy consumption) |
Air purity | ISO Class 0, 100% oil‑free | Usually contains oil; requires additional treatment |
Flow pulsation | Low pulsation, smooth continuous flow | High pulsation, intermittent discharge |
Oil‑free screw blowers are widely used in industrial sectors that demand high air quality, energy efficiency, and operational stability:
Wastewater Treatment and Aeration
In municipal and industrial wastewater treatment plants, aeration systems are the largest energy consumers – blower energy can account for up to 70% of total plant electricity consumption. Oil‑free screw blowers supply stable, continuous, oil‑free clean air to microorganisms in the biological treatment stage, ensuring effective aeration while significantly cutting energy use.
Replacing traditional Roots blowers with oil‑free screw blowers has become a key route for energy saving and carbon reduction in the wastewater sector.
Pneumatic Conveying Systems
In closed‑pipeline conveying of powders, granules, and small materials, oil‑free screw blowers provide stable, oil‑free conveying air. Their constant‑flow characteristic ensures steady conveying even when feed fluctuates, preventing pipeline blockages.
Widely used in power plants, cement plants, grain/food processing, chemical plants, and other industries with pneumatic conveying systems.
Food and Beverage Industry
Food processing, packaging, and beverage production demand strict air purity. Oil‑free screw blowers deliver 100% oil‑free air, completely eliminating the risk of oil contamination of food products and safeguarding food safety.
Electronics and Semiconductor Manufacturing
In cleanroom environments and semiconductor production lines, even trace oil contamination can cause product rejects. Oil‑free screw blowers supply ultra‑pure oil‑free air meeting the most stringent air quality requirements of the electronics industry.
Other Application Fields
Textile industry: fabric production, printing – eliminates oil stains on textiles.
Fermentation and aquaculture: oxygenation in aquaculture, air supply for biological fermentation.
Chemical and electroplating: process air supply, oxidation, etc.
Sustained Market Growth
The global oil‑free screw blower market continues to grow steadily. In 2025, global market sales reached US$622 million**, projected to reach **US$846 million by 2032. Global production stood at 5,180 units, with an average price of US$120,000 per unit. Demand primarily comes from wastewater treatment, food and beverage, electronics manufacturing, chemicals, and pharmaceuticals.
Intelligent and Energy‑Efficient Trends
Future development of oil‑free screw blowers will place greater emphasis on intelligence and energy efficiency:
IoT remote monitoring: cloud‑based platforms for remote monitoring, fault prediction, and predictive maintenance.
Permanent magnet VSD technology: integration with first‑class energy‑efficiency permanent magnet motors and VSD drives to further reduce energy consumption.
Modular design: more compact structures for easier installation and maintenance.
Driven by Environmental Regulations
Increasingly stringent environmental regulations and carbon neutrality goals worldwide are accelerating the phase‑out of high‑energy, high‑pollution traditional equipment. With its dual environmental benefits of energy efficiency and oil‑free operation, the oil‑free screw blower is set to capture even broader market opportunities in the context of global decarbonisation.
Over 10,000 oil‑free screw blowers are already operating stably at customer sites worldwide – a testament to mature technology and reliable quality serving users across various industries.
When choosing an oil‑free screw blower, consider the following factors:
Define operating parameters: determine required flow rate (capacity), discharge pressure (pressure rise), inlet temperature, etc.
Assess air quality requirements: confirm whether ISO Class 0 oil‑free certification is needed.
Evaluate energy consumption and operating costs: compare energy efficiency levels of different solutions; focus on total life‑cycle cost.
Consider noise restrictions: select models with acoustic enclosures based on site noise limits.
Determine intelligence needs: decide if remote monitoring, VSD, or other smart features are required.
Choose a reliable manufacturer: check technical qualifications, patents, certifications, and after‑sales service capabilities.
Oil‑free screw blowers – with their high energy efficiency, 100% oil‑free clean air, stable operation, low noise, and simple maintenance – are becoming the ideal air solution for numerous industries including wastewater treatment, pneumatic conveying, food processing, and electronics manufacturing.
In the context of global energy conservation and carbon reduction, choosing oil‑free screw blowers not only means lower operating costs and higher productivity, but also represents a concrete step towards green manufacturing and enhanced product quality. With continuous technological advancement and expanding markets, oil‑free screw blowers will play an increasingly indispensable role in more industrial applications.
