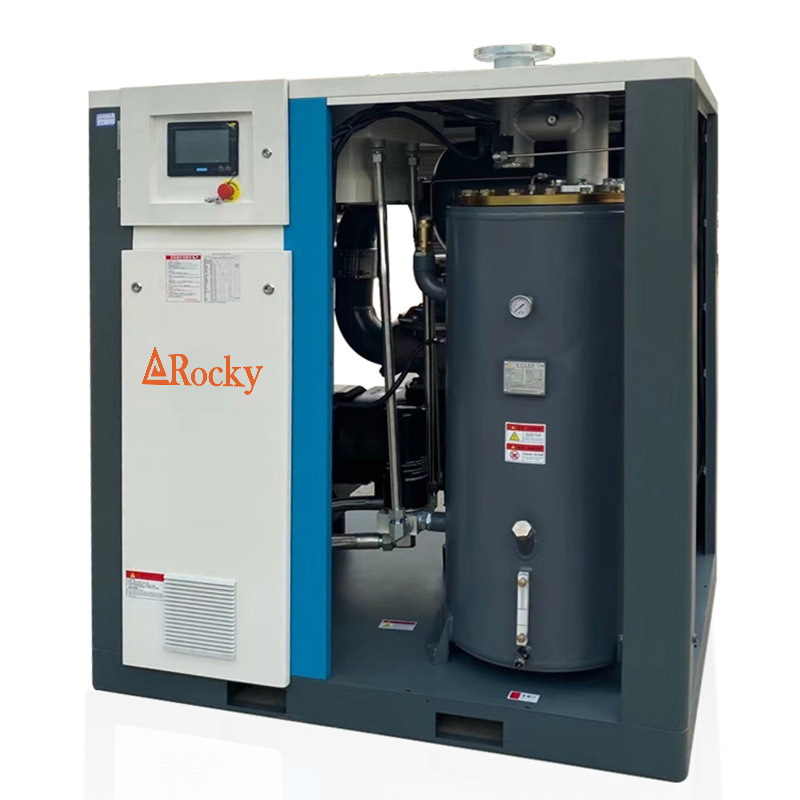

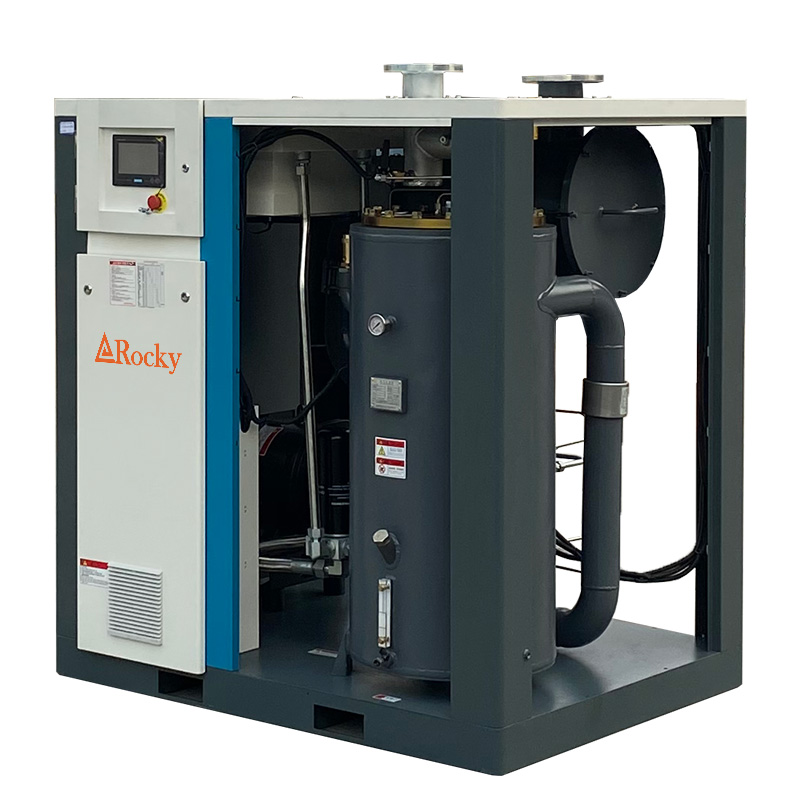

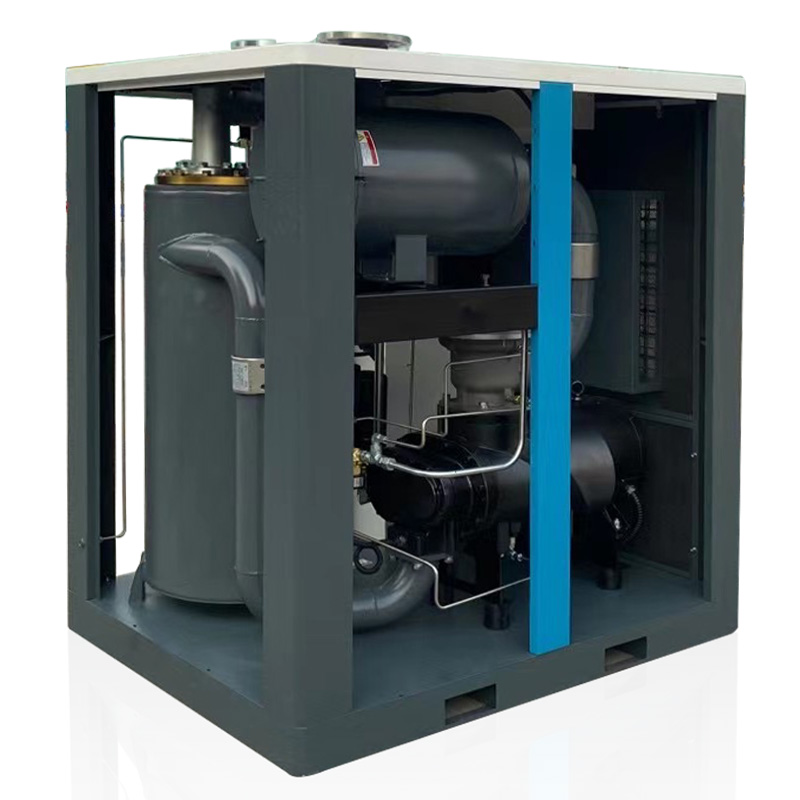

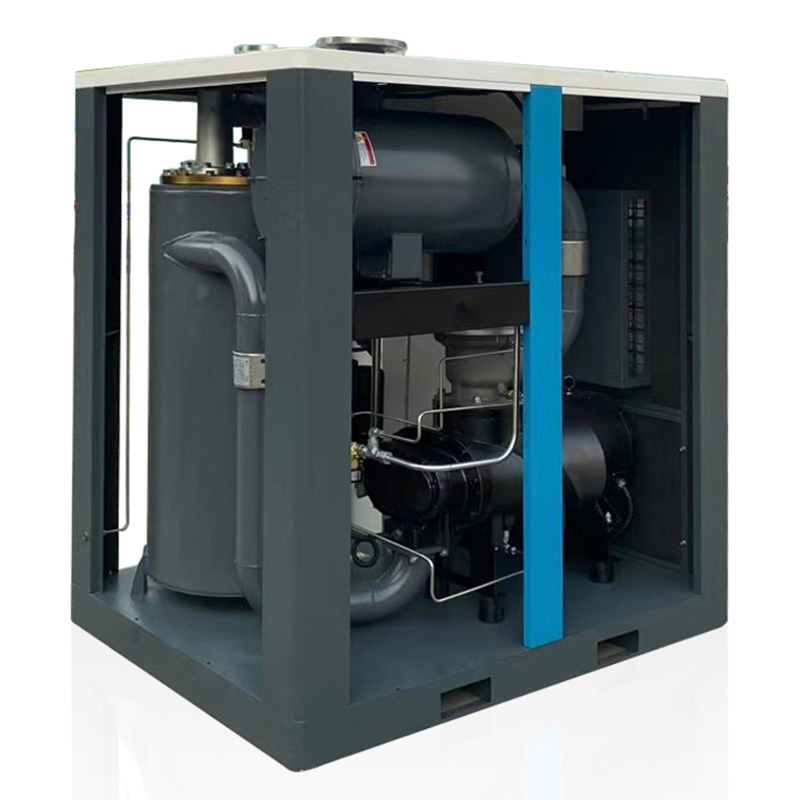

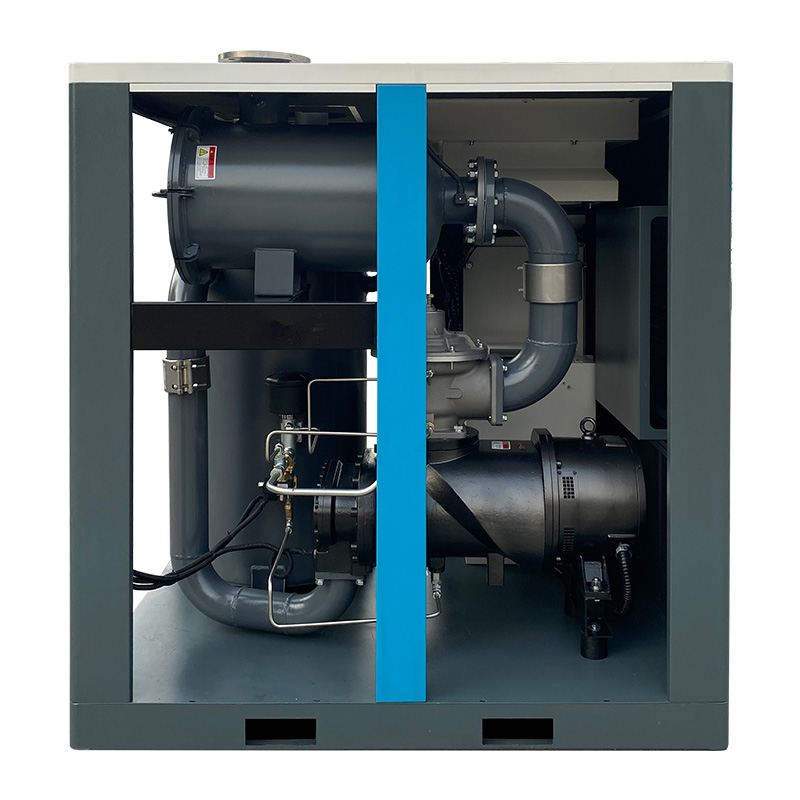

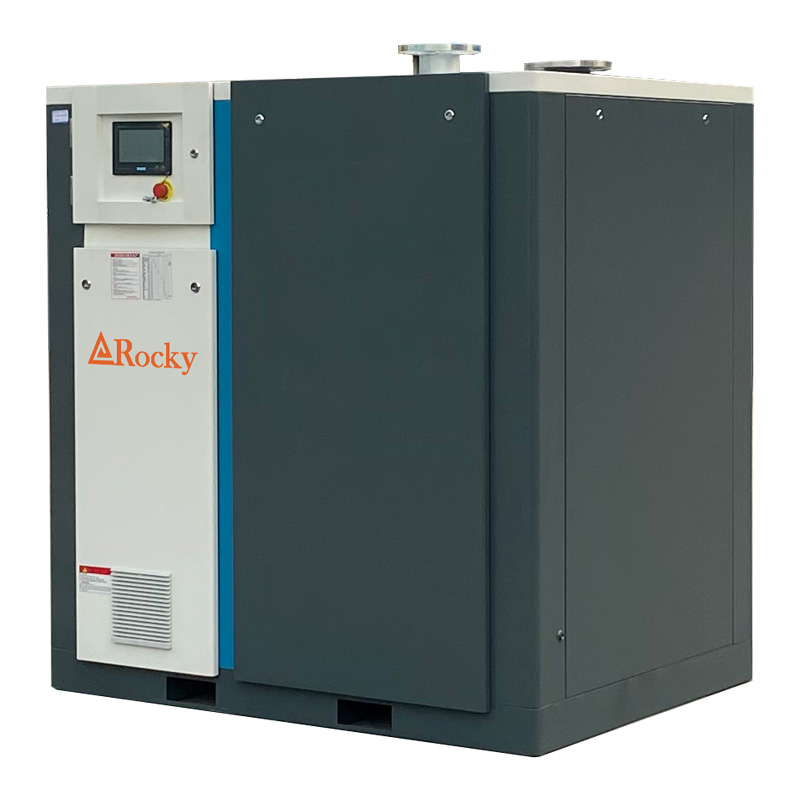

The body of RKV series screw vacuum pump adopts BS new body. New type of screw profile design, permanent magnet integrated structure, improved performance.Stable and efficient, suitable for a variety of complex working conditions. New design, better performance.
RKV series vacuum pumps are widely used in plastic, glass, bottling, canning, packaging, printing, paper making and meat packaging, electronics, machinery and so on. It can be used single-unit or multi-unit combined control system with vacuum room system.
The use of high-efficiency vacuum filters can more effectively remove impurities and protect the pump body. With a more optimized design, it is more convenient to replace the filter element.The top cover of the oil separator is unique, and the exhaust pipe adopts the "H" structure design, which allows the condensate to be collected at the outlet of the exhaust pipe and discharged directly through the equipment cover.
Technical Advantages
Compared with oil lubrication and dry chip vacuum technology has superior performance and cost advantages. Higher efficiency-cutting-edge screw technology, permanent magnet integrated frequency conversion drive design, more compact structure, higher energy efficiency and 50% energy saving. Quiet operation-the noise level is much lower than other technologies.It can maintain superior oil retention capacity under all operating pressures and reduce the impact on the environment.
Technical parameter
| Model | Power (kW) | Max.Vacuum | Max.Capacity (m³/min) | Inlet Connection (mm) | Outlet Connection (mm) | Weight (kg) | Dimension (mm) |
| mbar | |||||||
| RKV7.5APM | 5.5 | 0.7 | 7.0 | DN100 | DN80 | 870 | 1480×1000×1350 |
| RKV10APM | 7.5 | 9.5 | DN100 | DN80 | 870 | 1480×1000×1350 | |
| RKV15APM | 11 | 12.2 | DN100 | DN80 | 930 | 1550×1060×1450 | |
| RKV20APM | 15 | 15.0 | DN100 | DN80 | 980 | 1550×1060×1450 | |
| RKV25APM | 18.5 | 17.5 | DN125 | DN100 | 1500 | 1600×1300×1700 | |
| RKV30APM | 22 | 23.3 | DN125 | DN100 | 1550 | 1600×1300×1700 | |
| RKV40APM | 30 | 27.0 | DN125 | DN100 | 1650 | 1600×1560×1700 | |
| RKV50APM | 37 | 30.0 | DN125 | DN100 | 1700 | 1600×1560×1700 | |
| RKV60APM | 45 | 43.3 | DN200 | DN150 | 1900 | 2860×1750×2050 | |
| RKV75APM | 55 | 61.0 | DN200 | DN150 | 2000 | 2860×1750×2050 | |
| RKV100APM | 75 | 75.0 | DN250 | DN200 | 3000 | 3300×2200×2250 | |
| RKV125APM | 90 | 85.0 | DN250 | DN200 | 3100 | 3300×2200×2250 |
FAQs
1.Is a screw pump the best technology for handling my specific process gases?
A:(e.g., solvents, moisture, corrosive gases, particulates/abrasive dust).
2.What consumables are required?
A:(Typically, lubricating grease for the bearings and mechanical seals, and possibly gearbox oil. They require no process oil, a major advantage).
3.Does the pump require a downstream oil mist separator or particulate filter?
A:While oil-free, some models may have a small oil mist from the gearbox or bearings that needs managing.
4.What is the total cost of ownership (TCO) compared to other pump technologies?
A:While the initial investment might be higher, the savings on oil disposal, reduced downtime, and lower maintenance often justify it.
5.What is the total cost of ownership (TCO) compared to other pump technologies?
A:While the initial investment might be higher, the savings on oil disposal, reduced downtime, and lower maintenance often justify it.
